initial commit last working from congress

matrix.py

@@ -0,0 +1,195 @@
+#!/usr/bin/env python3
+# -*- coding: UTF-8 -*-
+import _thread
+import socket
+import pygame
+import math
+import random
+import numpy as np
+from pygame.locals import *
+
+import serial #pip3 install pyserial
+import time
+
+HEIGHT=24
+WIDTH=160
+
+class FlipdotSim():
+    def __init__(self,
+                 imageSize = (160,48), #80,16
+                 pixelSize = 10,
+                 udpPort = 2323,
+                 ser=None):
+        self.udpPort = udpPort
+        self.flipdotMatrixSimulatorWidget=None #deactivate simulator
+        #self.flipdotMatrixSimulatorWidget = FlipdotMatrixSimulatorWidget(imageSize, pixelSize) #comment out if no simulator needed
+        self.udpHostSocket = socket.socket(socket.AF_INET6, socket.SOCK_DGRAM)
+        self.udpHostSocket.bind(("", self.udpPort))
+        self.ser=ser
+
+    def run(self):
+        self.RunServer()
+
+    def RunServer(self):
+        try:
+            while True:
+                rawData = self.udpHostSocket.recv(4096)
+
+                #print(rawData)
+                imageArray = ImageArrayAdapter().convertPacketToImageArray(rawData)
+                #print("Image array")
+                #print(imageArray)
+                if self.flipdotMatrixSimulatorWidget is not None:
+                    self.flipdotMatrixSimulatorWidget.show(imageArray)
+
+                self.sendToMatrix(imageArray[0: int(WIDTH*HEIGHT) ],0)
+                self.sendToMatrix(imageArray[int(WIDTH*HEIGHT): ],1)
+
+
+        finally:
+            self.udpHostSocket.close()
+
+    def sendToMatrix(self,imageArray,displayid=0):
+        data=np.zeros(int(WIDTH*HEIGHT/8),dtype=np.uint8)
+        imageArray=np.hstack( (np.array(imageArray,dtype=np.uint8),np.zeros(len(data)*8-len(imageArray),dtype=np.uint8) ))
+        print("imageArray size="+str(len(imageArray)))
+        numberofbytes=int(len(imageArray)/8)
+        print("numberofbytes="+str(numberofbytes))
+        # 477 ist oben links
+        # 474 ist rechts daneben
+        for i in range(numberofbytes):
+            # j=numberofbytes+1 - ( int(i/3)+(2-i%3)+3)
+            # j=(numberofbytes-3) # Erste Stelle oben links
+            j=(numberofbytes-3)-(i*3)+int(i/160)*480+1*(int(i/160))
+            #j=(numberofbytes-3)-(i*3)+int(i/(numberofbytes/3))*numberofbytes+1*(int(i/(numberofbytes/3)))
+            # 417 ist zweite Zeile, ganz links oben
+            data[j] = int( ''.join(str(e)[::-1] for e in imageArray[i*8:(i+1)*8]) ,2)
+        #data[59]=255
+        matrixSetup(ser,displayid)
+        ser.write(bytearray(fixMatrixBits(data)))
+        matrixEnd(ser)
+
+class ImageArrayAdapter():
+    def __init__(self):
+        self.arrayOfBinaryInts = []
+
+    def convertPacketToImageArray(self, udpPacketStr):
+        self.arrayOfBinaryInts = []
+        byteArray = bytearray(udpPacketStr)
+
+        #Fix for other format. Not Used
+        #byteArray = udpPacketStr.translate(None, b'\r\n').decode().replace('[','').replace(']','').replace(' ','').split(',')
+        #byteArray = [int(x) for x in byteArray]
+        #print("rawtype="+str(type(byteArray)))
+
+        #print(byteArray)
+        for byte in byteArray:
+            #print("byte:"+str(byte))
+            self.__appendByteToArrayOfBinaryInts(byte)
+        return self.arrayOfBinaryInts
+
+    def __appendByteToArrayOfBinaryInts(self, byte):
+        byteValue = int(byte)
+        for i in range(8):
+            if math.floor(byteValue/(2**(7-i))) > 0:
+                self.arrayOfBinaryInts.append(1)
+                #print("append 1")
+            else:
+                self.arrayOfBinaryInts.append(0)
+                #print("append 0")
+            byteValue = byteValue%(2**(7-i))
+
+
+class FlipdotMatrixSimulatorWidget():
+    BLACKCOLOR = 0
+    WHITECOLOR = 1
+
+    def __init__(self,
+                 imageSize = (160,48),
+                 pixelSize = 10):
+        self.imageSize = imageSize
+        self.pixelSize = pixelSize
+
+        pygame.init()
+        self.screen = pygame.display.set_mode((imageSize[0]*pixelSize, imageSize[1]*pixelSize))
+        self.screen.fill((255,255,255))
+        _thread.start_new_thread(self.watchCloseThread, ())
+
+    def watchCloseThread(self):
+        while True:
+            for event in pygame.event.get():
+                if event.type in (QUIT, QUIT):
+                    import os
+                    os.kill(os.getpid(), 9)
+            pygame.time.delay(500)
+
+    def show(self, imageArray):
+        for yValue in range(self.imageSize[1]):
+            for xValue in range(self.imageSize[0]):
+                i = self.imageSize[0]*yValue + xValue
+                color = imageArray[i]
+                self.updatePixel(xValue, yValue, color)
+        pygame.display.update()
+
+    def clearPixels(self):
+        for xValue in range(self.imageSize[0]):
+            for yValue in range(self.imageSize[1]):
+                self.updatePixel(xValue, yValue, self.BLACKCOLOR)
+
+    def updatePixel(self, xValue, yValue, color):
+        surface = pygame.Surface((self.pixelSize-1, self.pixelSize-1))
+        if color == self.BLACKCOLOR:
+                rectcolor = (0,0,0)
+        else:
+                rectcolor = (255,255,255)
+        surface.fill(rectcolor)
+        self.screen.blit(surface, (xValue*self.pixelSize, yValue*self.pixelSize))
+
+
+def matrixSetup(ser,displayid=0):
+    ser.write(chr(2).encode())
+    ser.write(b'B') #command char
+    if displayid==0:
+        ser.write(b'0') #display id  0 or 1
+    elif displayid==1:
+        ser.write(b'1')
+    #ser.write(b'00000000000')
+    ser.write(b'00000000000') #alignment
+    ser.write(chr(27).encode()) #oneB
+    ser.write(b'1')
+
+def matrixEnd(ser):
+    #ser.write(chr(151).encode())
+    ser.write(chr(3).encode()) #END cmd
+
+def fixMatrixBits(data):
+    print("data vor="+str(len(data)))
+    #for bi,b in enumerate(data):
+    bi=0
+    while bi <len(data):
+        b=data[bi]
+        if b==2:
+            data=np.hstack(  (np.hstack( (data[0:bi],[27,48,50]) ), data[bi+1:] ) )
+            bi+=2
+        elif b==3:
+            data=np.hstack(  (np.hstack( (data[0:bi],[27,48,51]) ), data[bi+1:] ) )
+            bi+=2
+        elif b==27:
+            data=np.hstack(  (np.hstack( (data[0:bi],[27,48,66]) ), data[bi+1:] ) )
+            bi+=2
+        bi+=1
+
+    data=np.array(data,dtype=np.uint8)
+
+    return data
+
+
+if __name__ == '__main__':
+    ser = None
+    ser = serial.Serial('/dev/ttyUSB0',9600)  # open serial port
+    print(ser.name)
+
+
+    FlipdotSim(imageSize=(WIDTH,HEIGHT), pixelSize = 4, udpPort=2323,ser=ser).run()
+
+    #ser.close()

printtext_dfi/FlipdotSender.py

@@ -0,0 +1,232 @@
+from PIL import Image, ImageDraw, ImageFont
+import socket
+import binascii
+import io
+import time
+import re
+import numpy as np
+
+import PIL.ImageOps
+
+
+class FlipdotSender(object):
+    '''
+    classdocs
+    '''
+
+    C_BLACK = 0
+    C_WHITE = 255
+
+    global threadrunning
+    threadrunning=False
+
+    lastimgmap = []
+
+    def __init__(self, udphost, udpport, img_size=(160,48), font_size=9, font_size_scroll=12,
+                 font_offset1=(0,0), font_offset2=(0,8),
+                 #font_family='/usr/share/fonts/gnu-free/FreeMono.ttf',
+                 #font_family='/usr/share/fonts/truetype/dejavu/DejaVuSansMono.ttf',
+                 font_family='freefont/FreeMono.ttf',
+
+                 chars_per_line=11):
+        '''
+        Constructor
+        '''
+
+        self._udphost = udphost
+        if not type(udpport) is int or udpport > 65536:
+            raise TypeError('port has to be int and > 65536 !!')
+        self._udpport = udpport
+        self._img_size = img_size
+        self._font_size = font_size
+        self._font_size_scroll = font_size_scroll
+        self._font_offset1 = font_offset1
+        self._font_offset2 = font_offset2
+        self._font_family = font_family
+        self._chars_per_line = chars_per_line
+
+        self._sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
+
+    def stopAnimation(self):
+        global threadrunning
+        threadrunning=False #tried to stop a running animation
+
+
+    def _list2byte(self, l):
+        byte = 0
+        i = 0
+        for i in range(8):
+            byte += 2**(7-i) if l[i] else 0
+        return byte
+
+    def _array2packet(self, a):
+        return [self._list2byte(a[i*8:i*8+8]) for i in range(int(len(a)/8))]
+
+    '''
+    def _send(self, image):  #old function, backup
+        imgmap = []
+        for pixel in image.getdata():
+            r, g, b, a = pixel
+            if r == FlipdotSender.C_WHITE:
+                imgmap.append(1)
+            else:
+                imgmap.append(0)
+
+        lastimgmap=imgmap
+
+        packet = self._array2packet(imgmap)
+
+        self._sock.sendto(bytes(packet), (self._udphost, self._udpport))'''
+
+    def _send(self, image,fadespeed=0,invert=False): #changes slowly 'fadespeed'-pixels at a time
+        global threadrunning
+        #if fadespeed=0 -> change instant.
+        #time to change=  1280/25*0.2
+        imgmap = []
+        for pixel in image.getdata():
+            r, g, b, a = pixel
+            if r >= 127:
+                if invert:
+                    imgmap.append(0)
+                else:
+                    imgmap.append(1)
+            else:
+                if invert:
+                    imgmap.append(1)
+                else:
+                    imgmap.append(0)
+
+        imgmaptmp=FlipdotSender.lastimgmap
+
+
+        if fadespeed>0:
+            threadrunning=True
+            #diff=np.sum(np.array(imgmaptmp) != np.array(imgmap)) #different pixels
+            pixelchangeind=np.arange(self._img_size[0]*self._img_size[1])
+            np.random.shuffle(pixelchangeind)
+            for _i,ind in enumerate(pixelchangeind):
+                if threadrunning==False:
+                    break #stop this for
+
+                if ind<len(imgmaptmp): #imgmaptmp is not empty (normally at first run)
+                    imgmaptmp[ind]=imgmap[ind]
+                    if _i%fadespeed==0:
+                        packet = self._array2packet(imgmaptmp)
+                        self._sock.sendto(bytes(packet), (self._udphost, self._udpport))
+                        time.sleep(0.2)
+            if threadrunning==True: #if animation hasnt been cancelled
+                self.sendPacket(imgmap) #send packet and save last-imagemap
+            threadrunning=False
+        else:
+            self.sendPacket(imgmap) #send packet and save last-imagemap
+
+
+    def sendPacket(self, imgmap):
+        packet = self._array2packet(imgmap)
+        self._sock.sendto(bytes(packet), (self._udphost, self._udpport))
+
+        FlipdotSender.lastimgmap=imgmap
+
+    def send_bytes(self, img):
+        imgmap = []
+        for pixel in img:
+            if pixel == "1":
+                imgmap.append(1)
+            else:
+                imgmap.append(0)
+
+        if len(img) < 1280:
+            imgmap = np.hstack((imgmap, np.zeros(1280-len(img), dtype=int)))
+
+        packet = self._array2packet(imgmap)
+
+        self._sock.sendto(bytes(packet), (self._udphost, self._udpport))
+
+
+    def send_text(self, text,fadespeed=0):
+        image = Image.new("RGBA", self._img_size, FlipdotSender.C_BLACK)
+        draw = ImageDraw.Draw(image)
+        draw.fontmode = "1"         # No AA
+
+        font = ImageFont.truetype(self._font_family, self._font_size)
+
+        cut = self._chars_per_line
+
+        splitted_text = text.split("|")
+
+        draw.text(self._font_offset1, splitted_text[0], font=font, fill=FlipdotSender.C_WHITE)
+        if len(splitted_text)>1:
+                draw.text(self._font_offset2, splitted_text[1], font=font, fill=FlipdotSender.C_WHITE)
+
+        self._send(image,fadespeed)
+
+    def send_textFull(self, text,fadespeed=0):
+        image = Image.new("RGBA", self._img_size, FlipdotSender.C_BLACK)
+        draw = ImageDraw.Draw(image)
+        draw.fontmode = "1"         # No AA
+
+        l=1000 #init very high
+        splitpoint=40 #very high
+        currentfontsize=12+1 #init with max font size
+        font = ImageFont.truetype(self._font_family, currentfontsize)
+
+        while(l>80): #while text too long and font not too small
+            if currentfontsize>8:
+                currentfontsize=currentfontsize-1 #reduce size and try if fits
+            else: #if fontsize too small, try cutting sentence (2 lines)
+                splitpoint=splitpoint-1
+
+            font = ImageFont.truetype(self._font_family, currentfontsize)
+            l=draw.textsize(text[0:splitpoint], font=font)[0]
+            print("Textlength="+str(l)+" split="+str(splitpoint))
+
+        if splitpoint==40: #not splitted
+            draw.text((0,int((16-currentfontsize)/2) ), text, font=font, fill=FlipdotSender.C_WHITE)
+        else:
+            draw.text((0,-1), text[0:splitpoint], font=font, fill=FlipdotSender.C_WHITE)
+            draw.text((0,-1+currentfontsize), text[splitpoint:], font=font, fill=FlipdotSender.C_WHITE)
+
+        self._send(image,fadespeed)
+
+
+    def send_marquee(self, str, speed=3):
+        global threadrunning
+        threadrunning=True
+        offset = self._img_size[0]
+        font = ImageFont.truetype(self._font_family, self._font_size_scroll)
+
+        while offset >= -font.getsize(str)[0]-speed and threadrunning==True:
+            image = Image.new("RGBA", self._img_size, FlipdotSender.C_BLACK)
+            draw = ImageDraw.Draw(image)
+            draw.fontmode = "1"         # No AA
+
+            draw.text((offset,0), str, font=font, fill=FlipdotSender.C_WHITE)
+            self._send(image)
+            offset -= speed
+            time.sleep(0.15)
+        threadrunning=False
+
+
+
+    def send_img_from_filename(self, imgfilename,invert=False):
+        background = Image.new("RGBA", self._img_size, FlipdotSender.C_BLACK)
+        image = Image.open(imgfilename)
+        image = image.convert(mode='RGBA')
+        image = image.resize(self._img_size)
+        image.save('/tmp/send2.png', 'PNG')
+        background.paste(image, box=(0,0), mask=None)
+        background.save('/tmp/send.png', 'PNG')
+
+        self._send(background,0,invert)
+
+    def send_img(self, img):
+        background = Image.new("RGBA", self._img_size, FlipdotSender.C_BLACK)
+        stream = io.BytesIO(img)
+        image = Image.open(stream)
+        image = image.convert(mode='RGBA')
+        image = image.resize(self._img_size)
+        image.save('/tmp/send2.jpeg', 'JPEG')
+        background.paste(image, box=(0,0), mask=None)
+        background.save('/tmp/send.jpeg', 'JPEG')
+
+        self._send(background)

printtext_dfi/printtext.py

@@ -0,0 +1,38 @@
+#!/usr/bin/env python3
+import time
+from FlipdotSender import FlipdotSender
+import time
+import sys
+from random import randint
+
+flipdot = FlipdotSender("localhost", 2323,(160,48),40)
+
+#text=sys.argv[1]
+
+#flipdot.send_text(text)
+#flipdot.send_marquee(text)
+while(True):
+    flipdot.send_img_from_filename("troll.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("kirbyboss.png",randint(0,1)==0)
+    time.sleep(randint(5,20))

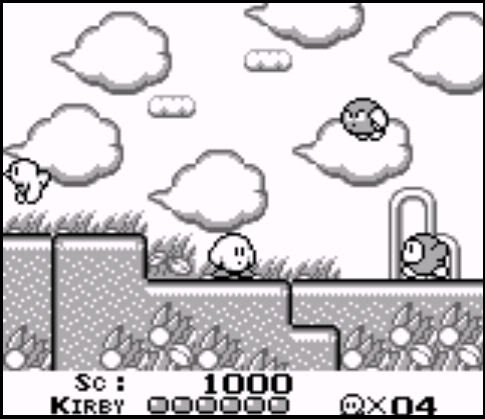

+    flipdot.send_img_from_filename("kirby.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("pokemon_wildpidgey.png",randint(0,1)==0)
+    time.sleep(randint(5,20))

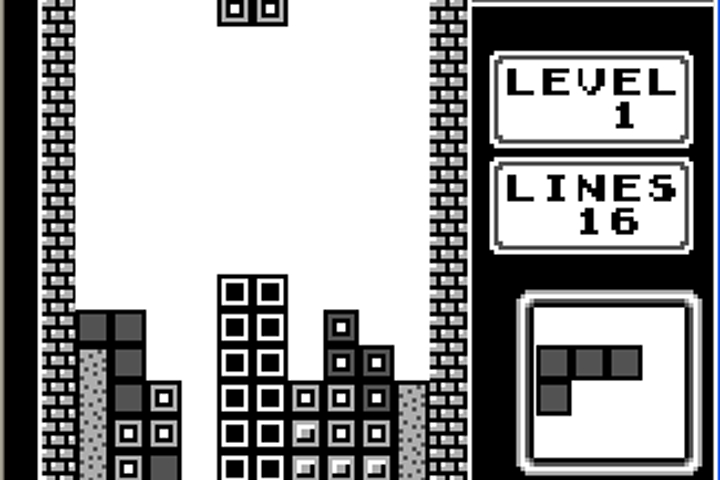

+    flipdot.send_img_from_filename("tetris.png",randint(0,1)==0)
+    time.sleep(randint(5,20))

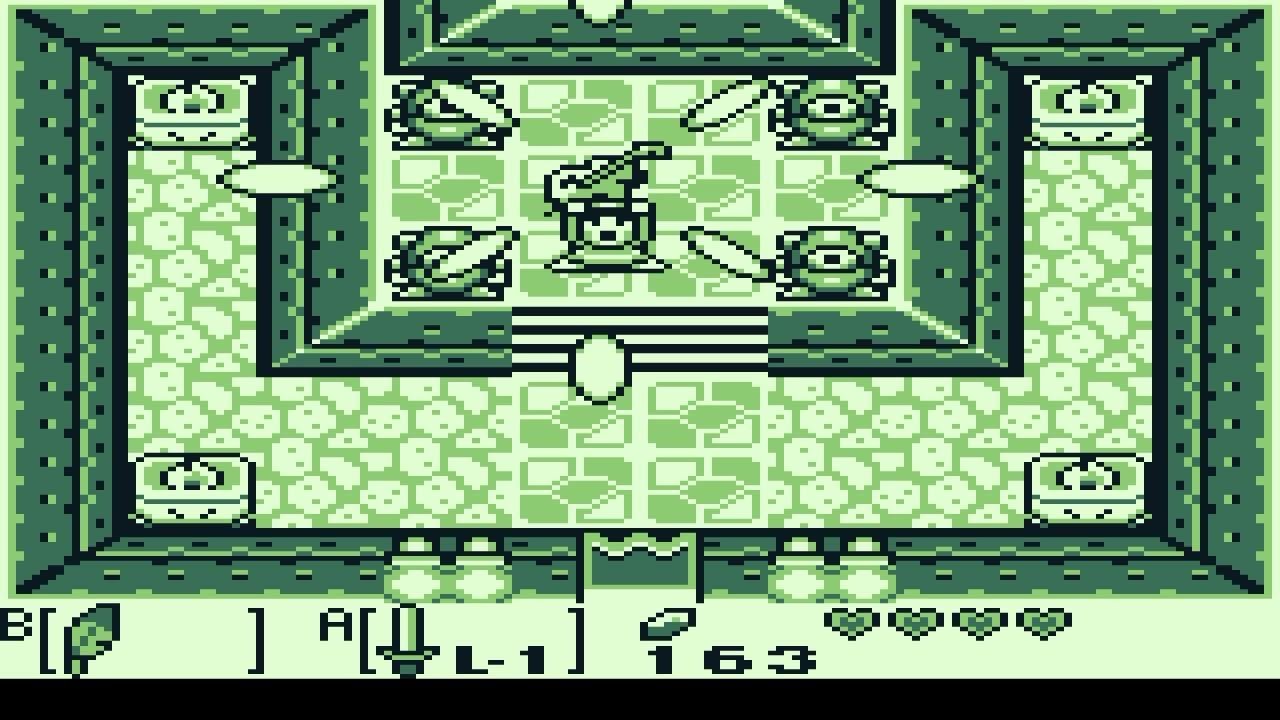

+    flipdot.send_img_from_filename("zelda.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("mario.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("chaoswest.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("ctdo_logo.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("tuwat.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("nyancat.png",randint(0,1)==0)
+    time.sleep(randint(5,20))
+    flipdot.send_img_from_filename("Spaceinvaders.png",randint(0,1)==0)
+    time.sleep(randint(5,20))

testmatrix.py

@@ -0,0 +1,110 @@
+#!/usr/bin/env python3
+# -*- coding: UTF-8 -*-
+import math
+import random
+import numpy as np
+import serial #pip3 install pyserial
+import time
+
+HEIGHT=24
+WIDTH=160
+
+def matrixSetup(ser):
+    ser.write(chr(2).encode())
+    ser.write(b'B') #command char
+    ser.write(b'0') #display id  0 or 1
+    #ser.write(b'00000000000')
+    ser.write(b'00000000000') #alignment
+    ser.write(chr(27).encode()) #oneB
+    ser.write(b'1')
+
+def matrixEnd(ser):
+    #ser.write(chr(151).encode())
+    ser.write(chr(3).encode()) #END cmd
+
+def fixMatrixBits(data):
+    for bi,b in enumerate(data):
+        if b==2:
+            data=np.hstack(  (np.hstack( (data[0:bi],[27,48,50]) ), data[bi+1:] ) )
+        elif b==3:
+            data=np.hstack(  (np.hstack( (data[0:bi],[27,48,51]) ), data[bi+1:] ) )
+        elif b==27:
+            data=np.hstack(  (np.hstack( (data[0:bi],[27,48,66]) ), data[bi+1:] ) )
+
+    data=np.array(data,dtype=np.uint8)
+    return data
+
+
+if __name__ == '__main__':
+
+    '''things:
+    2 - clears buffer
+    3 - ends at current position
+    27 - also ends at cur. pos.
+
+    to display 2:  27,48,50
+    to display 3:  27,48,51
+    to display 27: 27,48,66
+    '''
+
+    ser = None
+    ser = serial.Serial('/dev/ttyUSB0',9600)  # open serial port
+
+
+
+    matrixSetup(ser)
+    data=np.zeros(int(160*24/8),dtype=np.uint8)
+    data[:]=0
+    ser.write(bytearray(data))
+    matrixEnd(ser)
+
+    time.sleep(2)
+
+
+    '''
+    matrixSetup(ser)
+
+    data=np.zeros(int(160*24/8),dtype=np.uint8)
+    data[0]=255
+    data[1]=3
+    data[2]=255
+
+    data=fixMatrixBits(data)
+
+    ser.write(bytearray(data))
+
+
+    matrixEnd(ser)
+    '''
+
+    for y in range(HEIGHT):
+        for x in range(int(WIDTH/8)):
+            matrixSetup(ser)
+            data=np.zeros(int(WIDTH*HEIGHT/8),dtype=np.uint8)
+            #data[int(x/8)+y*WIDTH]=math.pow(2,x%8)
+            data[int(  int(x)+y*WIDTH/8 ) ]=255
+
+            ser.write(bytearray(fixMatrixBits(data)))
+            matrixEnd(ser)
+            time.sleep(.1)
+
+
+    '''
+    for i in range(256):
+        print(i)
+        matrixSetup(ser)
+
+        data=np.zeros(int(160*24/8),dtype=np.uint8)
+        data[0]=255
+        data[1]=27 #escape
+        data[2]=48 #ascii "0"=48
+        data[3]=i #ascii "2"=50
+        data[4]=255
+
+        ser.write(bytearray(data))
+
+
+        matrixEnd(ser)
+        time.sleep(.25)
+    '''
+    ser.close()
