added Olimex stm32f407-E407 ChibiOS example
This commit is contained in:
Lucas Pleß
parent
196986fb89
commit
4647b4236c
1004 changed files with 1217137 additions and 0 deletions
BIN
eigener_ctrl/docs/STM32F407ZGT6.pdf
Normal file
BIN
eigener_ctrl/docs/STM32F407ZGT6.pdf
Normal file
Binary file not shown.
BIN
eigener_ctrl/docs/STM32F407_reference_manual.pdf
Normal file
BIN
eigener_ctrl/docs/STM32F407_reference_manual.pdf
Normal file
Binary file not shown.
2
eigener_ctrl/stm32f407-olimex/.gitignore
vendored
Normal file
2
eigener_ctrl/stm32f407-olimex/.gitignore
vendored
Normal file
|
|
@ -0,0 +1,2 @@
|
|||
build/
|
||||
.dep/
|
||||
228
eigener_ctrl/stm32f407-olimex/Makefile
Executable file
228
eigener_ctrl/stm32f407-olimex/Makefile
Executable file
|
|
@ -0,0 +1,228 @@
|
|||
##############################################################################
|
||||
# Build global options
|
||||
# NOTE: Can be overridden externally.
|
||||
#
|
||||
|
||||
# Compiler options here.
|
||||
ifeq ($(USE_OPT),)
|
||||
USE_OPT = -O2 -ggdb -fomit-frame-pointer -falign-functions=16
|
||||
endif
|
||||
|
||||
# C specific options here (added to USE_OPT).
|
||||
ifeq ($(USE_COPT),)
|
||||
USE_COPT =
|
||||
endif
|
||||
|
||||
# C++ specific options here (added to USE_OPT).
|
||||
ifeq ($(USE_CPPOPT),)
|
||||
USE_CPPOPT = -fno-rtti
|
||||
endif
|
||||
|
||||
# Enable this if you want the linker to remove unused code and data
|
||||
ifeq ($(USE_LINK_GC),)
|
||||
USE_LINK_GC = yes
|
||||
endif
|
||||
|
||||
# Linker extra options here.
|
||||
ifeq ($(USE_LDOPT),)
|
||||
USE_LDOPT =
|
||||
endif
|
||||
|
||||
# Enable this if you want link time optimizations (LTO)
|
||||
ifeq ($(USE_LTO),)
|
||||
USE_LTO = yes
|
||||
endif
|
||||
|
||||
# If enabled, this option allows to compile the application in THUMB mode.
|
||||
ifeq ($(USE_THUMB),)
|
||||
USE_THUMB = yes
|
||||
endif
|
||||
|
||||
# Enable this if you want to see the full log while compiling.
|
||||
ifeq ($(USE_VERBOSE_COMPILE),)
|
||||
USE_VERBOSE_COMPILE = no
|
||||
endif
|
||||
|
||||
# If enabled, this option makes the build process faster by not compiling
|
||||
# modules not used in the current configuration.
|
||||
ifeq ($(USE_SMART_BUILD),)
|
||||
USE_SMART_BUILD = yes
|
||||
endif
|
||||
|
||||
#
|
||||
# Build global options
|
||||
##############################################################################
|
||||
|
||||
##############################################################################
|
||||
# Architecture or project specific options
|
||||
#
|
||||
|
||||
# Stack size to be allocated to the Cortex-M process stack. This stack is
|
||||
# the stack used by the main() thread.
|
||||
ifeq ($(USE_PROCESS_STACKSIZE),)
|
||||
USE_PROCESS_STACKSIZE = 0x400
|
||||
endif
|
||||
|
||||
# Stack size to the allocated to the Cortex-M main/exceptions stack. This
|
||||
# stack is used for processing interrupts and exceptions.
|
||||
ifeq ($(USE_EXCEPTIONS_STACKSIZE),)
|
||||
USE_EXCEPTIONS_STACKSIZE = 0x400
|
||||
endif
|
||||
|
||||
# Enables the use of FPU (no, softfp, hard).
|
||||
ifeq ($(USE_FPU),)
|
||||
USE_FPU = no
|
||||
endif
|
||||
|
||||
#
|
||||
# Architecture or project specific options
|
||||
##############################################################################
|
||||
|
||||
##############################################################################
|
||||
# Project, sources and paths
|
||||
#
|
||||
|
||||
# Define project name here
|
||||
PROJECT = dfi
|
||||
|
||||
# Imported source files and paths
|
||||
CHIBIOS = chibios
|
||||
# Startup files.
|
||||
include $(CHIBIOS)/os/common/startup/ARMCMx/compilers/GCC/mk/startup_stm32f4xx.mk
|
||||
# HAL-OSAL files (optional).
|
||||
include $(CHIBIOS)/os/hal/hal.mk
|
||||
include $(CHIBIOS)/os/hal/ports/STM32/STM32F4xx/platform.mk
|
||||
include $(CHIBIOS)/os/hal/boards/OLIMEX_STM32_E407/board.mk
|
||||
include $(CHIBIOS)/os/hal/osal/rt/osal.mk
|
||||
# RTOS files (optional).
|
||||
include $(CHIBIOS)/os/rt/rt.mk
|
||||
include $(CHIBIOS)/os/common/ports/ARMCMx/compilers/GCC/mk/port_v7m.mk
|
||||
# Other files (optional).
|
||||
include $(CHIBIOS)/test/rt/test.mk
|
||||
include $(CHIBIOS)/os/hal/lib/streams/streams.mk
|
||||
include $(CHIBIOS)/os/various/shell/shell.mk
|
||||
include $(CHIBIOS)/os/various/lwip_bindings/lwip.mk
|
||||
include $(CHIBIOS)/os/various/fatfs_bindings/fatfs.mk
|
||||
|
||||
# Define linker script file here
|
||||
LDSCRIPT= $(STARTUPLD)/STM32F407xG.ld
|
||||
|
||||
# C sources that can be compiled in ARM or THUMB mode depending on the global
|
||||
# setting.
|
||||
CSRC = $(STARTUPSRC) \
|
||||
$(KERNSRC) \
|
||||
$(PORTSRC) \
|
||||
$(OSALSRC) \
|
||||
$(HALSRC) \
|
||||
$(PLATFORMSRC) \
|
||||
$(BOARDSRC) \
|
||||
$(TESTSRC) \
|
||||
$(LWSRC) \
|
||||
$(FATFSSRC) \
|
||||
$(STREAMSSRC) \
|
||||
$(SHELLSRC) \
|
||||
$(CHIBIOS)/os/various/evtimer.c \
|
||||
web/web.c usbcfg.c main.c
|
||||
|
||||
# C++ sources that can be compiled in ARM or THUMB mode depending on the global
|
||||
# setting.
|
||||
CPPSRC =
|
||||
|
||||
# C sources to be compiled in ARM mode regardless of the global setting.
|
||||
# NOTE: Mixing ARM and THUMB mode enables the -mthumb-interwork compiler
|
||||
# option that results in lower performance and larger code size.
|
||||
ACSRC =
|
||||
|
||||
# C++ sources to be compiled in ARM mode regardless of the global setting.
|
||||
# NOTE: Mixing ARM and THUMB mode enables the -mthumb-interwork compiler
|
||||
# option that results in lower performance and larger code size.
|
||||
ACPPSRC =
|
||||
|
||||
# C sources to be compiled in THUMB mode regardless of the global setting.
|
||||
# NOTE: Mixing ARM and THUMB mode enables the -mthumb-interwork compiler
|
||||
# option that results in lower performance and larger code size.
|
||||
TCSRC =
|
||||
|
||||
# C sources to be compiled in THUMB mode regardless of the global setting.
|
||||
# NOTE: Mixing ARM and THUMB mode enables the -mthumb-interwork compiler
|
||||
# option that results in lower performance and larger code size.
|
||||
TCPPSRC =
|
||||
|
||||
# List ASM source files here
|
||||
ASMSRC =
|
||||
ASMXSRC = $(STARTUPASM) $(PORTASM) $(OSALASM)
|
||||
|
||||
INCDIR = $(CHIBIOS)/os/license \
|
||||
$(STARTUPINC) $(KERNINC) $(PORTINC) $(OSALINC) \
|
||||
$(HALINC) $(PLATFORMINC) $(BOARDINC) $(TESTINC) \
|
||||
$(STREAMSINC) $(SHELLINC) $(LWINC) $(FATFSINC) \
|
||||
$(CHIBIOS)/os/various
|
||||
|
||||
#
|
||||
# Project, sources and paths
|
||||
##############################################################################
|
||||
|
||||
##############################################################################
|
||||
# Compiler settings
|
||||
#
|
||||
|
||||
MCU = cortex-m4
|
||||
|
||||
#TRGT = arm-elf-
|
||||
TRGT = arm-none-eabi-
|
||||
CC = $(TRGT)gcc
|
||||
CPPC = $(TRGT)g++
|
||||
# Enable loading with g++ only if you need C++ runtime support.
|
||||
# NOTE: You can use C++ even without C++ support if you are careful. C++
|
||||
# runtime support makes code size explode.
|
||||
LD = $(TRGT)gcc
|
||||
#LD = $(TRGT)g++
|
||||
CP = $(TRGT)objcopy
|
||||
AS = $(TRGT)gcc -x assembler-with-cpp
|
||||
AR = $(TRGT)ar
|
||||
OD = $(TRGT)objdump
|
||||
SZ = $(TRGT)size
|
||||
HEX = $(CP) -O ihex
|
||||
BIN = $(CP) -O binary
|
||||
|
||||
# ARM-specific options here
|
||||
AOPT =
|
||||
|
||||
# THUMB-specific options here
|
||||
TOPT = -mthumb -DTHUMB
|
||||
|
||||
# Define C warning options here
|
||||
CWARN = -Wall -Wextra -Wundef -Wstrict-prototypes
|
||||
|
||||
# Define C++ warning options here
|
||||
CPPWARN = -Wall -Wextra -Wundef
|
||||
|
||||
#
|
||||
# Compiler settings
|
||||
##############################################################################
|
||||
|
||||
##############################################################################
|
||||
# Start of user section
|
||||
#
|
||||
|
||||
# List all user C define here, like -D_DEBUG=1
|
||||
UDEFS =
|
||||
|
||||
# Define ASM defines here
|
||||
UADEFS =
|
||||
|
||||
# List all user directories here
|
||||
UINCDIR =
|
||||
|
||||
# List the user directory to look for the libraries here
|
||||
ULIBDIR =
|
||||
|
||||
# List all user libraries here
|
||||
ULIBS =
|
||||
|
||||
#
|
||||
# End of user defines
|
||||
##############################################################################
|
||||
|
||||
RULESPATH = $(CHIBIOS)/os/common/startup/ARMCMx/compilers/GCC
|
||||
include $(RULESPATH)/rules.mk
|
||||
520
eigener_ctrl/stm32f407-olimex/chconf.h
Executable file
520
eigener_ctrl/stm32f407-olimex/chconf.h
Executable file
|
|
@ -0,0 +1,520 @@
|
|||
/*
|
||||
ChibiOS - Copyright (C) 2006..2016 Giovanni Di Sirio
|
||||
|
||||
Licensed under the Apache License, Version 2.0 (the "License");
|
||||
you may not use this file except in compliance with the License.
|
||||
You may obtain a copy of the License at
|
||||
|
||||
http://www.apache.org/licenses/LICENSE-2.0
|
||||
|
||||
Unless required by applicable law or agreed to in writing, software
|
||||
distributed under the License is distributed on an "AS IS" BASIS,
|
||||
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
|
||||
See the License for the specific language governing permissions and
|
||||
limitations under the License.
|
||||
*/
|
||||
|
||||
/**
|
||||
* @file templates/chconf.h
|
||||
* @brief Configuration file template.
|
||||
* @details A copy of this file must be placed in each project directory, it
|
||||
* contains the application specific kernel settings.
|
||||
*
|
||||
* @addtogroup config
|
||||
* @details Kernel related settings and hooks.
|
||||
* @{
|
||||
*/
|
||||
|
||||
#ifndef CHCONF_H
|
||||
#define CHCONF_H
|
||||
|
||||
#define _CHIBIOS_RT_CONF_
|
||||
|
||||
/*===========================================================================*/
|
||||
/**
|
||||
* @name System timers settings
|
||||
* @{
|
||||
*/
|
||||
/*===========================================================================*/
|
||||
|
||||
/**
|
||||
* @brief System time counter resolution.
|
||||
* @note Allowed values are 16 or 32 bits.
|
||||
*/
|
||||
#define CH_CFG_ST_RESOLUTION 32
|
||||
|
||||
/**
|
||||
* @brief System tick frequency.
|
||||
* @details Frequency of the system timer that drives the system ticks. This
|
||||
* setting also defines the system tick time unit.
|
||||
*/
|
||||
#define CH_CFG_ST_FREQUENCY 10000
|
||||
|
||||
/**
|
||||
* @brief Time delta constant for the tick-less mode.
|
||||
* @note If this value is zero then the system uses the classic
|
||||
* periodic tick. This value represents the minimum number
|
||||
* of ticks that is safe to specify in a timeout directive.
|
||||
* The value one is not valid, timeouts are rounded up to
|
||||
* this value.
|
||||
*/
|
||||
#define CH_CFG_ST_TIMEDELTA 2
|
||||
|
||||
/** @} */
|
||||
|
||||
/*===========================================================================*/
|
||||
/**
|
||||
* @name Kernel parameters and options
|
||||
* @{
|
||||
*/
|
||||
/*===========================================================================*/
|
||||
|
||||
/**
|
||||
* @brief Round robin interval.
|
||||
* @details This constant is the number of system ticks allowed for the
|
||||
* threads before preemption occurs. Setting this value to zero
|
||||
* disables the preemption for threads with equal priority and the
|
||||
* round robin becomes cooperative. Note that higher priority
|
||||
* threads can still preempt, the kernel is always preemptive.
|
||||
* @note Disabling the round robin preemption makes the kernel more compact
|
||||
* and generally faster.
|
||||
* @note The round robin preemption is not supported in tickless mode and
|
||||
* must be set to zero in that case.
|
||||
*/
|
||||
#define CH_CFG_TIME_QUANTUM 0
|
||||
|
||||
/**
|
||||
* @brief Managed RAM size.
|
||||
* @details Size of the RAM area to be managed by the OS. If set to zero
|
||||
* then the whole available RAM is used. The core memory is made
|
||||
* available to the heap allocator and/or can be used directly through
|
||||
* the simplified core memory allocator.
|
||||
*
|
||||
* @note In order to let the OS manage the whole RAM the linker script must
|
||||
* provide the @p __heap_base__ and @p __heap_end__ symbols.
|
||||
* @note Requires @p CH_CFG_USE_MEMCORE.
|
||||
*/
|
||||
#define CH_CFG_MEMCORE_SIZE 0
|
||||
|
||||
/**
|
||||
* @brief Idle thread automatic spawn suppression.
|
||||
* @details When this option is activated the function @p chSysInit()
|
||||
* does not spawn the idle thread. The application @p main()
|
||||
* function becomes the idle thread and must implement an
|
||||
* infinite loop.
|
||||
*/
|
||||
#define CH_CFG_NO_IDLE_THREAD FALSE
|
||||
|
||||
/** @} */
|
||||
|
||||
/*===========================================================================*/
|
||||
/**
|
||||
* @name Performance options
|
||||
* @{
|
||||
*/
|
||||
/*===========================================================================*/
|
||||
|
||||
/**
|
||||
* @brief OS optimization.
|
||||
* @details If enabled then time efficient rather than space efficient code
|
||||
* is used when two possible implementations exist.
|
||||
*
|
||||
* @note This is not related to the compiler optimization options.
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_OPTIMIZE_SPEED TRUE
|
||||
|
||||
/** @} */
|
||||
|
||||
/*===========================================================================*/
|
||||
/**
|
||||
* @name Subsystem options
|
||||
* @{
|
||||
*/
|
||||
/*===========================================================================*/
|
||||
|
||||
/**
|
||||
* @brief Time Measurement APIs.
|
||||
* @details If enabled then the time measurement APIs are included in
|
||||
* the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_TM TRUE
|
||||
|
||||
/**
|
||||
* @brief Threads registry APIs.
|
||||
* @details If enabled then the registry APIs are included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_REGISTRY TRUE
|
||||
|
||||
/**
|
||||
* @brief Threads synchronization APIs.
|
||||
* @details If enabled then the @p chThdWait() function is included in
|
||||
* the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_WAITEXIT TRUE
|
||||
|
||||
/**
|
||||
* @brief Semaphores APIs.
|
||||
* @details If enabled then the Semaphores APIs are included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_SEMAPHORES TRUE
|
||||
|
||||
/**
|
||||
* @brief Semaphores queuing mode.
|
||||
* @details If enabled then the threads are enqueued on semaphores by
|
||||
* priority rather than in FIFO order.
|
||||
*
|
||||
* @note The default is @p FALSE. Enable this if you have special
|
||||
* requirements.
|
||||
* @note Requires @p CH_CFG_USE_SEMAPHORES.
|
||||
*/
|
||||
#define CH_CFG_USE_SEMAPHORES_PRIORITY FALSE
|
||||
|
||||
/**
|
||||
* @brief Mutexes APIs.
|
||||
* @details If enabled then the mutexes APIs are included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_MUTEXES TRUE
|
||||
|
||||
/**
|
||||
* @brief Enables recursive behavior on mutexes.
|
||||
* @note Recursive mutexes are heavier and have an increased
|
||||
* memory footprint.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
* @note Requires @p CH_CFG_USE_MUTEXES.
|
||||
*/
|
||||
#define CH_CFG_USE_MUTEXES_RECURSIVE FALSE
|
||||
|
||||
/**
|
||||
* @brief Conditional Variables APIs.
|
||||
* @details If enabled then the conditional variables APIs are included
|
||||
* in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
* @note Requires @p CH_CFG_USE_MUTEXES.
|
||||
*/
|
||||
#define CH_CFG_USE_CONDVARS TRUE
|
||||
|
||||
/**
|
||||
* @brief Conditional Variables APIs with timeout.
|
||||
* @details If enabled then the conditional variables APIs with timeout
|
||||
* specification are included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
* @note Requires @p CH_CFG_USE_CONDVARS.
|
||||
*/
|
||||
#define CH_CFG_USE_CONDVARS_TIMEOUT TRUE
|
||||
|
||||
/**
|
||||
* @brief Events Flags APIs.
|
||||
* @details If enabled then the event flags APIs are included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_EVENTS TRUE
|
||||
|
||||
/**
|
||||
* @brief Events Flags APIs with timeout.
|
||||
* @details If enabled then the events APIs with timeout specification
|
||||
* are included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
* @note Requires @p CH_CFG_USE_EVENTS.
|
||||
*/
|
||||
#define CH_CFG_USE_EVENTS_TIMEOUT TRUE
|
||||
|
||||
/**
|
||||
* @brief Synchronous Messages APIs.
|
||||
* @details If enabled then the synchronous messages APIs are included
|
||||
* in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_MESSAGES TRUE
|
||||
|
||||
/**
|
||||
* @brief Synchronous Messages queuing mode.
|
||||
* @details If enabled then messages are served by priority rather than in
|
||||
* FIFO order.
|
||||
*
|
||||
* @note The default is @p FALSE. Enable this if you have special
|
||||
* requirements.
|
||||
* @note Requires @p CH_CFG_USE_MESSAGES.
|
||||
*/
|
||||
#define CH_CFG_USE_MESSAGES_PRIORITY FALSE
|
||||
|
||||
/**
|
||||
* @brief Mailboxes APIs.
|
||||
* @details If enabled then the asynchronous messages (mailboxes) APIs are
|
||||
* included in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
* @note Requires @p CH_CFG_USE_SEMAPHORES.
|
||||
*/
|
||||
#define CH_CFG_USE_MAILBOXES TRUE
|
||||
|
||||
/**
|
||||
* @brief Core Memory Manager APIs.
|
||||
* @details If enabled then the core memory manager APIs are included
|
||||
* in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_MEMCORE TRUE
|
||||
|
||||
/**
|
||||
* @brief Heap Allocator APIs.
|
||||
* @details If enabled then the memory heap allocator APIs are included
|
||||
* in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
* @note Requires @p CH_CFG_USE_MEMCORE and either @p CH_CFG_USE_MUTEXES or
|
||||
* @p CH_CFG_USE_SEMAPHORES.
|
||||
* @note Mutexes are recommended.
|
||||
*/
|
||||
#define CH_CFG_USE_HEAP TRUE
|
||||
|
||||
/**
|
||||
* @brief Memory Pools Allocator APIs.
|
||||
* @details If enabled then the memory pools allocator APIs are included
|
||||
* in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
*/
|
||||
#define CH_CFG_USE_MEMPOOLS TRUE
|
||||
|
||||
/**
|
||||
* @brief Dynamic Threads APIs.
|
||||
* @details If enabled then the dynamic threads creation APIs are included
|
||||
* in the kernel.
|
||||
*
|
||||
* @note The default is @p TRUE.
|
||||
* @note Requires @p CH_CFG_USE_WAITEXIT.
|
||||
* @note Requires @p CH_CFG_USE_HEAP and/or @p CH_CFG_USE_MEMPOOLS.
|
||||
*/
|
||||
#define CH_CFG_USE_DYNAMIC TRUE
|
||||
|
||||
/** @} */
|
||||
|
||||
/*===========================================================================*/
|
||||
/**
|
||||
* @name Debug options
|
||||
* @{
|
||||
*/
|
||||
/*===========================================================================*/
|
||||
|
||||
/**
|
||||
* @brief Debug option, kernel statistics.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
*/
|
||||
#define CH_DBG_STATISTICS FALSE
|
||||
|
||||
/**
|
||||
* @brief Debug option, system state check.
|
||||
* @details If enabled the correct call protocol for system APIs is checked
|
||||
* at runtime.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
*/
|
||||
#define CH_DBG_SYSTEM_STATE_CHECK FALSE
|
||||
|
||||
/**
|
||||
* @brief Debug option, parameters checks.
|
||||
* @details If enabled then the checks on the API functions input
|
||||
* parameters are activated.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
*/
|
||||
#define CH_DBG_ENABLE_CHECKS FALSE
|
||||
|
||||
/**
|
||||
* @brief Debug option, consistency checks.
|
||||
* @details If enabled then all the assertions in the kernel code are
|
||||
* activated. This includes consistency checks inside the kernel,
|
||||
* runtime anomalies and port-defined checks.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
*/
|
||||
#define CH_DBG_ENABLE_ASSERTS FALSE
|
||||
|
||||
/**
|
||||
* @brief Debug option, trace buffer.
|
||||
* @details If enabled then the trace buffer is activated.
|
||||
*
|
||||
* @note The default is @p CH_DBG_TRACE_MASK_DISABLED.
|
||||
*/
|
||||
#define CH_DBG_TRACE_MASK CH_DBG_TRACE_MASK_DISABLED
|
||||
|
||||
/**
|
||||
* @brief Trace buffer entries.
|
||||
* @note The trace buffer is only allocated if @p CH_DBG_TRACE_MASK is
|
||||
* different from @p CH_DBG_TRACE_MASK_DISABLED.
|
||||
*/
|
||||
#define CH_DBG_TRACE_BUFFER_SIZE 128
|
||||
|
||||
/**
|
||||
* @brief Debug option, stack checks.
|
||||
* @details If enabled then a runtime stack check is performed.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
* @note The stack check is performed in a architecture/port dependent way.
|
||||
* It may not be implemented or some ports.
|
||||
* @note The default failure mode is to halt the system with the global
|
||||
* @p panic_msg variable set to @p NULL.
|
||||
*/
|
||||
#define CH_DBG_ENABLE_STACK_CHECK FALSE
|
||||
|
||||
/**
|
||||
* @brief Debug option, stacks initialization.
|
||||
* @details If enabled then the threads working area is filled with a byte
|
||||
* value when a thread is created. This can be useful for the
|
||||
* runtime measurement of the used stack.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
*/
|
||||
#define CH_DBG_FILL_THREADS FALSE
|
||||
|
||||
/**
|
||||
* @brief Debug option, threads profiling.
|
||||
* @details If enabled then a field is added to the @p thread_t structure that
|
||||
* counts the system ticks occurred while executing the thread.
|
||||
*
|
||||
* @note The default is @p FALSE.
|
||||
* @note This debug option is not currently compatible with the
|
||||
* tickless mode.
|
||||
*/
|
||||
#define CH_DBG_THREADS_PROFILING FALSE
|
||||
|
||||
/** @} */
|
||||
|
||||
/*===========================================================================*/
|
||||
/**
|
||||
* @name Kernel hooks
|
||||
* @{
|
||||
*/
|
||||
/*===========================================================================*/
|
||||
|
||||
/**
|
||||
* @brief Threads descriptor structure extension.
|
||||
* @details User fields added to the end of the @p thread_t structure.
|
||||
*/
|
||||
#define CH_CFG_THREAD_EXTRA_FIELDS \
|
||||
/* Add threads custom fields here.*/
|
||||
|
||||
/**
|
||||
* @brief Threads initialization hook.
|
||||
* @details User initialization code added to the @p chThdInit() API.
|
||||
*
|
||||
* @note It is invoked from within @p chThdInit() and implicitly from all
|
||||
* the threads creation APIs.
|
||||
*/
|
||||
#define CH_CFG_THREAD_INIT_HOOK(tp) { \
|
||||
/* Add threads initialization code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief Threads finalization hook.
|
||||
* @details User finalization code added to the @p chThdExit() API.
|
||||
*/
|
||||
#define CH_CFG_THREAD_EXIT_HOOK(tp) { \
|
||||
/* Add threads finalization code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief Context switch hook.
|
||||
* @details This hook is invoked just before switching between threads.
|
||||
*/
|
||||
#define CH_CFG_CONTEXT_SWITCH_HOOK(ntp, otp) { \
|
||||
/* Context switch code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief ISR enter hook.
|
||||
*/
|
||||
#define CH_CFG_IRQ_PROLOGUE_HOOK() { \
|
||||
/* IRQ prologue code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief ISR exit hook.
|
||||
*/
|
||||
#define CH_CFG_IRQ_EPILOGUE_HOOK() { \
|
||||
/* IRQ epilogue code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief Idle thread enter hook.
|
||||
* @note This hook is invoked within a critical zone, no OS functions
|
||||
* should be invoked from here.
|
||||
* @note This macro can be used to activate a power saving mode.
|
||||
*/
|
||||
#define CH_CFG_IDLE_ENTER_HOOK() { \
|
||||
/* Idle-enter code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief Idle thread leave hook.
|
||||
* @note This hook is invoked within a critical zone, no OS functions
|
||||
* should be invoked from here.
|
||||
* @note This macro can be used to deactivate a power saving mode.
|
||||
*/
|
||||
#define CH_CFG_IDLE_LEAVE_HOOK() { \
|
||||
/* Idle-leave code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief Idle Loop hook.
|
||||
* @details This hook is continuously invoked by the idle thread loop.
|
||||
*/
|
||||
#define CH_CFG_IDLE_LOOP_HOOK() { \
|
||||
/* Idle loop code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief System tick event hook.
|
||||
* @details This hook is invoked in the system tick handler immediately
|
||||
* after processing the virtual timers queue.
|
||||
*/
|
||||
#define CH_CFG_SYSTEM_TICK_HOOK() { \
|
||||
/* System tick event code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief System halt hook.
|
||||
* @details This hook is invoked in case to a system halting error before
|
||||
* the system is halted.
|
||||
*/
|
||||
#define CH_CFG_SYSTEM_HALT_HOOK(reason) { \
|
||||
/* System halt code here.*/ \
|
||||
}
|
||||
|
||||
/**
|
||||
* @brief Trace hook.
|
||||
* @details This hook is invoked each time a new record is written in the
|
||||
* trace buffer.
|
||||
*/
|
||||
#define CH_CFG_TRACE_HOOK(tep) { \
|
||||
/* Trace code here.*/ \
|
||||
}
|
||||
|
||||
/** @} */
|
||||
|
||||
/*===========================================================================*/
|
||||
/* Port-specific settings (override port settings defaulted in chcore.h). */
|
||||
/*===========================================================================*/
|
||||
|
||||
#endif /* CHCONF_H */
|
||||
|
||||
/** @} */
|
||||
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs-0.13-patched.7z
Executable file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs-0.13-patched.7z
Executable file
Binary file not shown.
|
|
@ -0,0 +1,139 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<meta http-equiv="cache-control" content="no-cache">
|
||||
<meta name="description" content="Open source FAT filesystem for embedded projects">
|
||||
<link rel="stylesheet" href="css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - Generic FAT Filesystem Module</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
<h1>FatFs - Generic FAT Filesystem Module</h1>
|
||||
<hr>
|
||||
|
||||
<div class="abst">
|
||||
<img src="res/layers.png" class="rset" width="245" height="255" alt="layer">
|
||||
<p>FatFs is a generic FAT/exFAT filesystem module for small embedded systems. The FatFs module is written in compliance with ANSI C (C89) and completely separated from the disk I/O layer. Therefore it is independent of the platform. It can be incorporated into small microcontrollers with limited resource, such as 8051, PIC, AVR, ARM, Z80, RX and etc. Also Petit FatFs module for tiny microcontrollers is available <a href="http://elm-chan.org/fsw/ff/00index_p.html">here</a>.</p>
|
||||
|
||||
<h4>Features</h4>
|
||||
<ul>
|
||||
<li>DOS/Windows compatible FAT/exFAT filesystem.</li>
|
||||
<li>Platform independent. Easy to port.</li>
|
||||
<li>Very small footprint for program code and work area.</li>
|
||||
<li>Various <a href="doc/config.html">configuration options</a> to support for:
|
||||
<ul>
|
||||
<li>Multiple volumes (physical drives and partitions).</li>
|
||||
<li>Multiple ANSI/OEM code pages including DBCS.</li>
|
||||
<li>Long file name in ANSI/OEM or Unicode.</li>
|
||||
<li>exFAT filesystem.</li>
|
||||
<li>RTOS envilonment.</li>
|
||||
<li>Fixed or variable sector size.</li>
|
||||
<li>Read-only, optional API, I/O buffer and etc...</li>
|
||||
</ul>
|
||||
</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para">
|
||||
<h3>Application Interface</h3>
|
||||
<img src="res/layers1.png" class="rset" width="245" height="220" alt="layer">
|
||||
<p>FatFs provides various filesystem functions for the applications as shown below.</p>
|
||||
<ul>
|
||||
<li>File Access
|
||||
<ul>
|
||||
<li><a href="doc/open.html">f_open</a> - Open/Create a file</li>
|
||||
<li><a href="doc/close.html">f_close</a> - Close an open file</li>
|
||||
<li><a href="doc/read.html">f_read</a> - Read data from the file</li>
|
||||
<li><a href="doc/write.html">f_write</a> - Write data to the file</li>
|
||||
<li><a href="doc/lseek.html">f_lseek</a> - Move read/write pointer, Expand size</li>
|
||||
<li><a href="doc/truncate.html">f_truncate</a> - Truncate file size</li>
|
||||
<li><a href="doc/sync.html">f_sync</a> - Flush cached data</li>
|
||||
<li><a href="doc/forward.html">f_forward</a> - Forward data to the stream</li>
|
||||
<li><a href="doc/expand.html">f_expand</a> - Allocate a contiguous block to the file</li>
|
||||
<li><a href="doc/gets.html">f_gets</a> - Read a string</li>
|
||||
<li><a href="doc/putc.html">f_putc</a> - Write a character</li>
|
||||
<li><a href="doc/puts.html">f_puts</a> - Write a string</li>
|
||||
<li><a href="doc/printf.html">f_printf</a> - Write a formatted string</li>
|
||||
<li><a href="doc/tell.html">f_tell</a> - Get current read/write pointer</li>
|
||||
<li><a href="doc/eof.html">f_eof</a> - Test for end-of-file</li>
|
||||
<li><a href="doc/size.html">f_size</a> - Get size</li>
|
||||
<li><a href="doc/error.html">f_error</a> - Test for an error</li>
|
||||
</ul>
|
||||
</li>
|
||||
<li>Directory Access
|
||||
<ul>
|
||||
<li><a href="doc/opendir.html">f_opendir</a> - Open a directory</li>
|
||||
<li><a href="doc/closedir.html">f_closedir</a> - Close an open directory</li>
|
||||
<li><a href="doc/readdir.html">f_readdir</a> - Read an directory item</li>
|
||||
<li><a href="doc/findfirst.html">f_findfirst</a> - Open a directory and read the first item matched</li>
|
||||
<li><a href="doc/findnext.html">f_findnext</a> - Read a next item matched</li>
|
||||
</ul>
|
||||
</li>
|
||||
<li>File and Directory Management
|
||||
<ul>
|
||||
<li><a href="doc/stat.html">f_stat</a> - Check existance of a file or sub-directory</li>
|
||||
<li><a href="doc/unlink.html">f_unlink</a> - Remove a file or sub-directory</li>
|
||||
<li><a href="doc/rename.html">f_rename</a> - Rename/Move a file or sub-directory</li>
|
||||
<li><a href="doc/chmod.html">f_chmod</a> - Change attribute of a file or sub-directory</li>
|
||||
<li><a href="doc/utime.html">f_utime</a> - Change timestamp of a file or sub-directory</li>
|
||||
<li><a href="doc/mkdir.html">f_mkdir</a> - Create a sub-directory</li>
|
||||
<li><a href="doc/chdir.html">f_chdir</a> - Change current directory</li>
|
||||
<li><a href="doc/chdrive.html">f_chdrive</a> - Change current drive</li>
|
||||
<li><a href="doc/getcwd.html">f_getcwd</a> - Retrieve the current directory and drive</li>
|
||||
</ul>
|
||||
</li>
|
||||
<li>Volume Management and System Configuration
|
||||
<ul>
|
||||
<li><a href="doc/mount.html">f_mount</a> - Register/Unregister the work area of the volume</li>
|
||||
<li><a href="doc/mkfs.html">f_mkfs</a> - Create an FAT volume on the logical drive</li>
|
||||
<li><a href="doc/fdisk.html">f_fdisk</a> - Create logical drives on the physical drive</li>
|
||||
<li><a href="doc/getfree.html">f_getfree</a> - Get total size and free size on the volume</li>
|
||||
<li><a href="doc/getlabel.html">f_getlabel</a> - Get volume label</li>
|
||||
<li><a href="doc/setlabel.html">f_setlabel</a> - Set volume label</li>
|
||||
<li><a href="doc/setcp.html">f_setcp</a> - Set active code page</li>
|
||||
</ul>
|
||||
</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para">
|
||||
<h3>Media Access Interface</h3>
|
||||
<img src="res/layers2.png" class="rset" width="245" height="220" alt="layer">
|
||||
<p>Since the FatFs module is the <em>filesystem layer</em> independent of platforms and storage media, it is completely separated from the physical devices, such as memory card, harddisk and any type of storage device. The low level device control module is <em>not a part of FatFs module</em> and it needs to be provided by implementer. FatFs accesses the storage devices via a simple media access interface shown below. Also sample implementations for some platforms are available in the downloads. A function checker for low level disk I/O module is available <a href="res/app4.c">here</a>.</p>
|
||||
<ul>
|
||||
<li><a href="doc/dstat.html">disk_status</a> - Get device status</li>
|
||||
<li><a href="doc/dinit.html">disk_initialize</a> - Initialize device</li>
|
||||
<li><a href="doc/dread.html">disk_read</a> - Read sector(s)</li>
|
||||
<li><a href="doc/dwrite.html">disk_write</a> - Write sector(s)</li>
|
||||
<li><a href="doc/dioctl.html">disk_ioctl</a> - Control device dependent functions</li>
|
||||
<li><a href="doc/fattime.html">get_fattime</a> - Get current time</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para">
|
||||
<h3>Resources</h3>
|
||||
<p>The FatFs module is a free software opened for education, research and development. You can use, modify and/or redistribute it for personal projects or commercial products without any restriction under your responsibility. For further information, refer to the application note.</p>
|
||||
<ul>
|
||||
<li>Read first: <a href="doc/appnote.html">FatFs module application note</a> <span class="mfd">May 21, 2017</span></li>
|
||||
<li>Community: <a href="http://elm-chan.org/fsw/ff/bd/">FatFs User Forum</a></li>
|
||||
<li><a href="https://msdn.microsoft.com/en-us/windows/hardware/gg463080.aspx">FAT32 Specification by Microsoft</a>↗ (The authorized document on FAT filesystem)</li>
|
||||
<li><a href="http://elm-chan.org/docs/fat_e.html">The basics of FAT filesystem</a></li>
|
||||
<li><a href="http://elm-chan.org/docs/exfat_e.html">The basics of exFAT filesystem</a></li>
|
||||
<li><a href="http://elm-chan.org/docs/mmc/mmc_e.html">How to use MMC/SDC</a></li>
|
||||
<li><a href="http://elm-chan.org/junk/fa/faff.html">Playing with FlashAir and FatFs</a></li>
|
||||
<li><a href="http://stm32f4-discovery.com/2014/07/library-21-read-sd-card-fatfs-stm32f4xx-devices/">Read SD card with FatFs on STM32F4xx devices by Tilen Majerle</a>↗ (Quick and easy implementation for STM32F4-Discovery)</li>
|
||||
<li><a href="http://nemuisan.blog.bai.ne.jp/">Nemuisan's Blog</a>↗ (Well written implementations for STM32F/SPI & SDIO and LPC4088/SDMMC)</li>
|
||||
<li><a href="res/rwtest1.png">Benchmark 1</a> (ATmega1284/20MHz with MMC via USART in SPI, CFC via GPIO)</li>
|
||||
<li><a href="res/rwtest2.png">Benchmark 2</a> (LPC2368/72MHz with MMC via MCI)</li>
|
||||
</div>
|
||||
|
||||
|
||||
<hr>
|
||||
<p class="foot"><a href="http://elm-chan.org/fsw/ff/00index_e.html">FatFs Home Page</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,69 @@
|
|||
* {margin: 0; padding: 0; border-width: 0;}
|
||||
body {margin: 8px; background-color: #e0ffff; font-color: black; font-family: serif; line-height: 133%; max-width: 1024px;}
|
||||
a:link {color: blue;}
|
||||
a:visited {color: darkmagenta;}
|
||||
a:hover {background-color: #a0ffff;}
|
||||
a:active {color: darkmagenta; overflow: hidden; outline:none; position: relative; top: 1px; left: 1px;}
|
||||
abbr {border-width: 1px;}
|
||||
|
||||
p {margin: 0 0 0.3em 1em;}
|
||||
i {margin: 0 0.3em 0 0;}
|
||||
b {margin: 0 0.1em;}
|
||||
em {font-style: normal; font-weight: bold; margin: 0 0.1em;}
|
||||
strong {}
|
||||
pre {border: 1px dashed gray; margin: 0.5em 1em; padding: 0.5em; line-height: 1.2em; font-size: 85%; font-family: "Consolas", "Courier New", monospace; background-color: white;}
|
||||
pre span.c {color: green;}
|
||||
pre span.k {color: blue;}
|
||||
pre span.b {font-weight: bold;}
|
||||
pre span.arg {font-style: italic;}
|
||||
tt {margin: 0 0.2em; font-size: 0.85em; font-family: "Consolas", "Courier New", monospace; }
|
||||
tt.arg {font-style: italic;}
|
||||
ol {margin: 0.5em 2.5em;}
|
||||
ul {margin: 0.5em 2em;}
|
||||
ul ul {margin: 0 2em 0.5em 1em;}
|
||||
dl {margin: 0.5em 1em;}
|
||||
dd {margin: 0 2em;}
|
||||
dt {font-size: 0.85em; font-family: "Consolas", "Courier New", monospace;}
|
||||
dl.par dt {margin: 0.5em 0 0 0 ; font-style: italic; }
|
||||
dl.ret dt {margin: 0.5em 0 0 0 ; font-size: 0.85em; font-family: "Consolas", "Courier New", monospace; font-weight: bold; }
|
||||
hr {border-width: 1px; margin: 1em;}
|
||||
div.abst {font-family: sans-serif;}
|
||||
div.para {clear: both; font-family: serif;}
|
||||
div.ret a {font-size: 0.85em; font-family: "Consolas", "Courier New", monospace; }
|
||||
.equ {text-indent: 0; margin: 1em 2em 1em;}
|
||||
.indent {margin-left: 2em;}
|
||||
.rset {float: right; margin: 0.3em 0 0.5em 0.5em;}
|
||||
.lset {float: left; margin: 0.3em 0.5em 0.5em 0.5em;}
|
||||
ul.flat li {list-style-type: none; margin: 0;}
|
||||
a.imglnk img {border: 1px solid;}
|
||||
.iequ {white-space: nowrap; font-weight: bold;}
|
||||
.clr {clear: both;}
|
||||
.it {font-style: italic;}
|
||||
.mfd {font-size: 0.7em; padding: 0 1px; border: 1px solid; white-space : nowrap}
|
||||
.ral {text-align: right; }
|
||||
.lal {text-align: left; }
|
||||
.cal {text-align: center; }
|
||||
|
||||
h1 {line-height: 1em; font-size: 2em; font-family: sans-serif; padding: 0.3em 0 0.3em;}
|
||||
h2 {font-size: 2em; font-family: sans-serif; background-color: #d8d8FF; padding: 0.5em 0.5em; margin: 0 0 0.5em;}
|
||||
h3 {font-size: 1.5em; font-family: sans-serif; margin: 1.5em 0 0.5em;}
|
||||
div.doc h3 {border-color: #b0d8d8; border-style: solid; border-width: 0px 0px 4px 12px; padding: 4px; margin-top: 3em;}
|
||||
h4 {font-size: 1.2em; font-family: sans-serif; margin: 2em 0 0.2em;}
|
||||
h5 {font-size: 1em; font-family: sans-serif; margin: 1em 0 0em;}
|
||||
p.hdd {float: right; text-align: right; margin-top: 0.5em;}
|
||||
hr.hds {clear: both; margin-bottom: 1em;}
|
||||
kbd {letter-spacing: 0;}
|
||||
small {font-size: 80%;}
|
||||
.indent {margin-left: 2em;}
|
||||
|
||||
/* Tables */
|
||||
table {margin: 0.5em 1em; border-collapse: collapse; border: 2px solid black; }
|
||||
th {background-color: white; border-style: solid; border-width: 1px 1px 2px; border-color: black; padding: 0 3px; vertical-align: top; white-space: nowrap;}
|
||||
td {background-color: white; border: 1px solid black; padding: 0 3px; vertical-align: top; line-height: 1.3em;}
|
||||
table.lst td:first-child {font-size: 0.85em; font-family: "Consolas", "Courier New", monospace; white-space: nowrap;}
|
||||
table.lst2 td {font-size: 0.85em; font-family: "Consolas", "Courier New", monospace; white-space: nowrap;}
|
||||
table.lst3 td {font-family: "Consolas", "Courier New", monospace; white-space: nowrap;}
|
||||
table caption {font-family: sans-serif; font-weight: bold;}
|
||||
tr.lst3 td { border-width: 2px 1px 1px; }
|
||||
|
||||
p.foot {clear: both; text-indent: 0; margin: 1em 0.5em 1em;}
|
||||
|
|
@ -0,0 +1,283 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/appnote.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs Module Application Note</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
<h1>FatFs Module Application Note</h1>
|
||||
<ol class="toc">
|
||||
<li><a href="#port">How to Port</a></li>
|
||||
<li><a href="#limits">Limits</a></li>
|
||||
<li><a href="#memory">Memory Usage</a></li>
|
||||
<li><a href="#reduce">Reducing Module Size</a></li>
|
||||
<li><a href="#lfn">Long File Name</a></li>
|
||||
<li><a href="#unicode">Unicode API</a></li>
|
||||
<li><a href="#exfat">exFAT Filesystem</a></li>
|
||||
<li><a href="#reentrant">Re-entrancy</a></li>
|
||||
<li><a href="#dup">Duplicated File Access</a></li>
|
||||
<li><a href="#fs1">Performance Effective File Access</a></li>
|
||||
<li><a href="#fs2">Considerations on Flash Memory Media</a></li>
|
||||
<li><a href="#critical">Critical Section</a></li>
|
||||
<li><a href="#fs3">Extended Use of FatFs API</a></li>
|
||||
<li><a href="#license">About FatFs License</a></li>
|
||||
</ol>
|
||||
|
||||
<div class="para doc" id="port">
|
||||
<h3>How to Port</h3>
|
||||
|
||||
<h4>Basic considerations</h4>
|
||||
<p>The FatFs module is assuming following conditions on portability.</p>
|
||||
<ul>
|
||||
<li>ANSI C<br>
|
||||
The FatFs module is a middleware written in ANSI C (C89). There is no platform dependence, so long as the compiler is in compliance with ANSI C.</li>
|
||||
<li>Size of integer types<br>
|
||||
The FatFs module assumes that size of <tt>char</tt>/<tt>short</tt>/<tt>long</tt> are 8/16/32 bit and <tt>int</tt> is 16 or 32 bit. These correspondence are defined in <tt>integer.h</tt>. This will not be a problem on most compilers. When a conflict with existing definitions is occured, you must resolve it with care.</li>
|
||||
</ul>
|
||||
|
||||
<h4>System organizations</h4>
|
||||

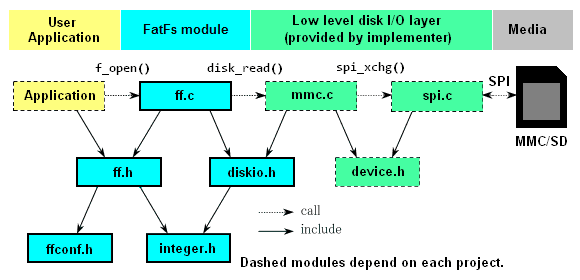

<p>The dependency diagram shown below is a typical but not specific configuration of the embedded system with FatFs module.</p>
|
||||
<p><img src="../res/modules.png" width="580" height="280" alt="dependency diagram"></p>
|
||||
<p>(a) If a working disk module with FatFs disk interface is provided, nothing else will be needed. (b) To attach existing disk drivers with different interface, glue functions are needed to translate the interfaces between FatFs and the drivers.</p>
|
||||

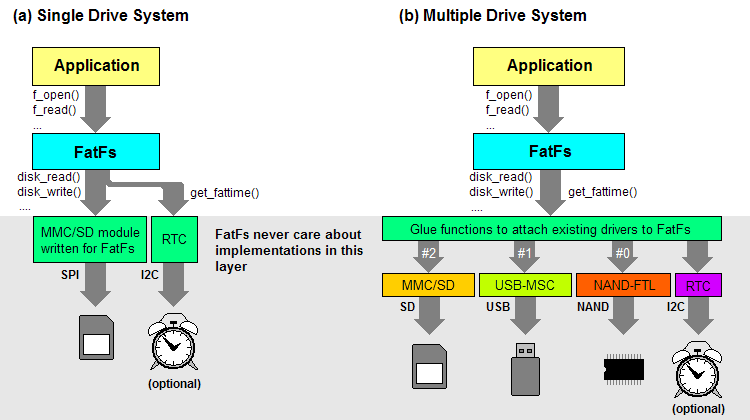

<p><img src="../res/funcs.png" width="750" height="420" alt="functional diagram"></p>
|
||||
|
||||
<h4>Required functions</h4>
|
||||
<p>You need to provide only low level disk I/O functions required by FatFs module and nothing else. If a working disk module for the target system is already provided, you need to write only glue functions to attach it to the FatFs module. If not, you need to port another disk I/O module or write it from scratch. Most of defined functions are not that always required. For example, any write function is not required at read-only configuration. Following table shows which function is required depends on the configuration options.</p>
|
||||
<table class="lst2">
|
||||
<tr><th>Function</th><th>Required when</th><th>Note</th></tr>
|
||||
<tr><td>disk_status<br>disk_initialize<br>disk_read</td><td>Always</td><td rowspan="5">Disk I/O functions.<br>Samples available in ffsample.zip.<br>There are many implementations on the web.</td></tr>
|
||||
<tr><td>disk_write<br>get_fattime<br>disk_ioctl (CTRL_SYNC)</td><td>FF_FS_READONLY == 0</td></tr>
|
||||
<tr><td>disk_ioctl (GET_SECTOR_COUNT)<br>disk_ioctl (GET_BLOCK_SIZE)</td><td>FF_USE_MKFS == 1</td></tr>
|
||||
<tr><td>disk_ioctl (GET_SECTOR_SIZE)</td><td>FF_MAX_SS != FF_MIN_SS</td></tr>
|
||||
<tr><td>disk_ioctl (CTRL_TRIM)</td><td>FF_USE_TRIM == 1</td></tr>
|
||||
<tr><td>ff_uni2oem<br>ff_oem2uni<br>ff_wtoupper</td><td>FF_USE_LFN != 0</td><td>Unicode support functions.<br>Just add ffunicode.c to the project.</td></tr>
|
||||
<tr><td>ff_cre_syncobj<br>ff_del_syncobj<br>ff_req_grant<br>ff_rel_grant</td><td>FF_FS_REENTRANT == 1</td><td rowspan="2">O/S dependent functions.<br>Samples available in ffsystem.c.</td></tr>
|
||||
<tr><td>ff_mem_alloc<br>ff_mem_free</td><td>FF_USE_LFN == 3</td></tr>
|
||||
</table>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="limits">
|
||||
<h3>Limits</h3>
|
||||
<ul>
|
||||
<li>Filesystem type: FAT, FAT32(rev0.0) and exFAT(rev1.0).</li>
|
||||
<li>Number of open files: Unlimited. (depends on available memory)</li>
|
||||
<li>Number of volumes: Upto 10.</li>
|
||||
<li>Volume size: Upto 2 TB at 512 bytes/sector.</li>
|
||||
<li>File size: Upto 4 GB - 1 on FAT volume and virtually unlimited on exFAT volume.</li>
|
||||
<li>Cluster size: Upto 128 sectors on FAT volume and upto 16 MB on exFAT volume.</li>
|
||||
<li>Sector size: 512, 1024, 2048 and 4096 bytes.</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="memory">
|
||||
<h3>Memory Usage</h3>
|
||||
<p>The memory usage varies depends on the <a href="config.html">configuration options</a>.</p>
|
||||
<table class="lst2">
|
||||
<tr><th></th><th>ARM7<small><br>32bit</small></th><th>ARM7<small><br>Thumb</small></th><th>CM3<small><br>Thumb-2</small></th><th>AVR</th><th>H8/300H</th><th>PIC24</th><th>RL78</th><th>V850ES</th><th>SH-2A</th><th>RX600</th><th>IA-32</th></tr>
|
||||
<tr class="cal"> <td>Compiler</td><td>GCC</td><td>GCC</td><td>GCC</td><td>GCC</td><td>CH38</td><td>C30</td><td>CC78K0R</td><td>CA850</td><td>SHC</td><td>RXC</td><td>MSC</td></tr>
|
||||
<!-- ARM Thumb CM3 AVR H8 PIC24 RL78 V850ES SH-2A RX600 IA-32 -->
|
||||
<tr class="ral"><td class="cal">text (Full, R/W)</td><td>10.3k</td><td>6.7k</td><td>6.3k</td><td>12.4k</td> <td>9.9k</td><td>11.4k</td><td>13.1k</td><td>8.7k</td><td>9.0k</td><td>6.5k</td><td>8.6k</td></tr>
|
||||
<tr class="ral"><td class="cal">text (Min, R/W)</td> <td>6.9k</td><td>4.7k</td><td>4.4k</td> <td>8.4k</td> <td>6.9k</td> <td>8.0k</td> <td>9.4k</td><td>6.2k</td><td>6.2k</td><td>4.6k</td><td>6.1k</td></tr>
|
||||
<tr class="ral"><td class="cal">text (Full, R/O)</td> <td>4.7k</td><td>3.1k</td><td>2.8k</td> <td>5.7k</td> <td>4.7k</td> <td>5.4k</td> <td>6.4k</td><td>4.2k</td><td>4.0k</td><td>3.1k</td><td>4.1k</td></tr>
|
||||
<tr class="ral"><td class="cal">text (Min, R/O)</td> <td>3.6k</td><td>2.4k</td><td>2.2k</td> <td>4.4k</td> <td>3.6k</td> <td>4.2k</td> <td>5.0k</td><td>3.3k</td><td>3.1k</td><td>2.4k</td><td>3.2k</td></tr>
|
||||
<tr class="ral"><td class="cal">bss</td><td>V*4 + 2</td><td>V*4 + 2</td><td>V*4 + 2</td><td>V*2 + 2</td><td>V*4 + 2</td><td>V*2 + 2</td><td>V*2 + 2</td><td>V*4 + 2</td><td>V*4 + 2</td><td>V*4 + 2</td><td>V*4 + 2</td></tr>
|
||||
<tr class="ral"><td class="cal">Work area<br><small>(FF_FS_TINY == 0)</small></td><td>V*564<br>+ F*552</td><td>V*564<br>+ F*552</td><td>V*564<br>+ F*552</td><td>V*560<br>+ F*546</td><td>V*560<br>+ F*546</td><td>V*560<br>+ F*546</td><td>V*560<br>+ F*546</td><td>V*564<br>+ F*552</td><td>V*564<br>+ F*552</td><td>V*564<br>+ F*552</td><td>V*564<br>+ F*552</td></tr>
|
||||
<tr class="ral"><td class="cal">Work area<br><small>(FF_FS_TINY == 1)</small></td><td>V*564<br>+ F*40</td><td>V*564<br>+ F*40</td><td>V*564<br>+ F*40</td><td>V*560<br>+ F*34</td><td>V*560<br>+ F*34</td><td>V*560<br>+ F*34</td><td>V*560<br>+ F*34</td><td>V*564<br>+ F*40</td><td>V*564<br>+ F*40</td><td>V*564<br>+ F*40</td><td>V*564<br>+ F*40</td></tr>
|
||||
</table>
|
||||
<p>These are the memory usage on some target systems with following condition. The memory sizes are in unit of byte, <em>V</em> denotes option <tt>FF_VOLUMES</tt> and <em>F</em> denotes number of open files. All samples here are optimezed in code size.</p>
|
||||
<pre>
|
||||
FatFs R0.13 options:
|
||||
FF_FS_READONLY 0 (R/W) or 1 (R/O)
|
||||
FF_FS_MINIMIZE 0 (Full, with all basic functions) or 3 (Min, with fully minimized)
|
||||
FF_FS_TINY 0 (Default) or 1 (Tiny file object)
|
||||
And other options are left unchanged from original setting.
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="reduce">
|
||||
<h3>Reducing Modle Size</h3>
|
||||
<p>Follwing table shows which API function is removed by configuration options for the module size reduction. To use any API function, the row of the function must be clear.</p>
|
||||
<table class="lst2">
|
||||
<tr><td rowspan="2">Function</td><td colspan="4">FF_FS_<br>MINIMIZE</td><td colspan="2">FF_FS_<br>READONLY</td><td colspan="2">FF_USE_<br>STRFUNC</td><td colspan="3">FF_FS_<br>RPATH</td><td colspan="2">FF_USE_<br>FIND</td><td colspan="2">FF_USE_<br>CHMOD</td><td colspan="2">FF_USE_<br>EXPAND</td><td colspan="2">FF_USE_<br>LABEL</td><td colspan="2">FF_USE_<br>MKFS</td><td colspan="2">FF_USE_<br>FORWARD</td><td colspan="2">FF_MULTI_<br>PARTITION</td></tr>
|
||||
<tr> <td>0</td><td>1</td><td>2</td><td>3</td><td>0</td><td>1</td><td>0</td><td>1</td><td>0</td><td>1</td><td>2</td><td>0</td><td>1</td><td>0</td><td>1</td><td>0</td><td>1</td><td>0</td><td>1</td><td>0</td><td>1</td><td>0</td><td>1</td><td>0</td><td>1</td></tr>
|
||||
<tr class="lst3">
|
||||
<td>f_mount</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_open</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_close</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_read</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_write</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_sync</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_lseek</td> <td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_opendir</td> <td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_closedir</td> <td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_readdir</td> <td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_findfirst</td><td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_findnext</td> <td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_stat</td> <td> </td><td>x</td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_getfree</td> <td> </td><td>x</td><td>x</td><td>x</td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_truncate</td> <td> </td><td>x</td><td>x</td><td>x</td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_unlink</td> <td> </td><td>x</td><td>x</td><td>x</td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_mkdir</td> <td> </td><td>x</td><td>x</td><td>x</td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_rename</td> <td> </td><td>x</td><td>x</td><td>x</td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_chdir</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_chdrive</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_getcwd</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_chmod</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_utime</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_getlabel</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_setlabel</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_expand</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_forward</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_mkfs</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_fdisk</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td>x</td><td> </td></tr>
|
||||
<tr><td>f_putc</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_puts</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_printf</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
<tr><td>f_gets</td> <td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td>x</td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td><td> </td></tr>
|
||||
</table>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="lfn">
|
||||
<h3>Long File Name</h3>
|
||||
<p>FatFs module supports long file name (LFN). The two different file names, short file name (SFN) and LFN, of a file is transparent on the API except for <tt>f_readdir</tt> function. The support for LFN is disabled by default. To enable the LFN, set <tt><a href="config.html#use_lfn">FF_USE_LFN</a></tt> to 1, 2 or 3, and add <tt>ffunicode.c</tt> to the project. The LFN requiers a certain working buffer in addition. The buffer size can be configured by <tt><a href="config.html#max_lfn">FF_MAX_LFN</a></tt> according to the available memory. The length of an LFN will be up to 255 characters, so that the <tt>FF_MAX_LFN</tt> should be set to 255 for all file names. If the size of working buffer is insufficient for the input file name, the file function fails with <tt>FR_INVALID_NAME</tt>. When use any re-entry to the API with LFN is enabled, <tt>FF_USE_LFN</tt> must be set to 2 or 3. In this case, the file function allocates the working buffer on the stack or heap. The working buffer occupies <tt>(FF_MAX_LFN + 1) * 2</tt> bytes and additional <tt>(FF_MAX_LFN + 44) / 15 * 32</tt> bytes when exFAT is enabled.</p>
|
||||
<table class="lst2 rset">
|
||||
<caption>With LFN at CM3+gcc</caption>
|
||||
<tr><th><tt>FF_CODE_PAGE</tt></th><th>Increment</th></tr>
|
||||
<tr><td>437-869 (SBCS)</td><td>+3.3k</td></tr>
|
||||
<tr><td>932 (Japanese)</td><td>+62k</td></tr>
|
||||
<tr><td>936 (Simplified Chinese)</td><td>+177k</td></tr>
|
||||
<tr><td>949 (Korean)</td><td>+140k</td></tr>
|
||||
<tr><td>950 (Traditional Chinese)</td><td>+111k</td></tr>
|
||||
<tr><td>0 (All code pages)</td><td>+486k</td></tr>
|
||||
</table>
|
||||
<p>When the LFN is enabled, the module size will be increased depends on the configured code page. Right table shows increment of code size by LFN function at different code pages. Especially, in the CJK region, tens of thousands of characters are being used. Unfortunately, it requires a huge OEM-Unicode bidirectional conversion table and the module size will be drastically increased as shown in the table. As the result, the FatFs with LFN enebled with those code pages will not able to be ported on the most 8-bit MCU systems.</p>
|
||||
<p>There ware some restrictions on using LFN for open source project because the support for LFN on the FAT volume was a patent of Microsoft Corporation. The related patents have expired and using the LFN function have got free for any projects.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="unicode">
|
||||
<h3>Unicode API</h3>
|
||||
<p>By default, FatFs uses ANSI/OEM code set on the API even at LFN configuration. FatFs can also switch the character encoding on the API to Unicode by configuration option <tt><a href="config.html#lfn_unicode">FF_LFN_UNICODE</a></tt>. This means that FatFs supports the full featured LFN specification. The data type <tt>TCHAR</tt> specifies path name strings on the API is an alias of either <tt>char</tt>(ANSI/OEM) or <tt>WCHAR</tt>(UTF-16) depends on that option. For more information, refer to the description in the <a href="filename.html#uni">file name</a>.</p>
|
||||
<p>Note that code page setting, <tt><a href="config.html#code_page">FF_CODE_PAGE</a></tt>, has actually no meaning for the path names at the Unicode API. However it still affects code conversion of string I/O functions at <tt><a href="config.html#strf_encode">FF_STRF_ENCODE = 0</a></tt> and backward compatibility with non-LFN systems, so that code page needs to be set properly when it is considered a problem.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="exfat">
|
||||
<h3>exFAT Filesystem</h3>
|
||||
<p>The exFAT (Microsoft's Extended File Allocation Table) filesystem is a succession of the FAT filesystem which has been widely used in embedded systems, consumer devices and portable storage media. It is adopted by SDA (SD Association) as a recommended filesystem for high capacity SD cards larger than 32 GB and they are being shipped with this format, so that the exFAT became one of the standard filesystems for removable media as well as FAT. The exFAT filesystem allows the file size beyond the 4 GB limit what FAT filesystem allows upto and some filesystem overhead, especially cluster allocation delay, are reduced as well. This feature improves the write throughput to the file.</p>
|
||||
<p>Note that the exFAT is a patent of Microsoft Corporation. The exFAT function of FatFs is an implementation based on <cite>US. Pat. App. Pub. No. 2009/0164440 A1</cite>. FatFs module can swich the support for exFAT on/off by configuration option, <tt><a href="config.html#fs_exfat">FF_FS_EXFAT</a></tt>. When enable the exFAT on the commercial products, a license by Microsoft will be needed depends on the final destination of the products.</p>
|
||||
<p><em>Remark: Enabling exFAT discards ANSI C (C89) compatibility because of need for 64-bit integer type.</em></p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="reentrant">
|
||||
<h3>Re-entrancy</h3>
|
||||
<p>The file operations to the <em>different volumes</em> each other is always re-entrant regardless of configurations except when LFN is enabled with static working buffer. It can work concurrently without any mutual exclusion.</p>
|
||||
<p>The file operations to the <em>same volume</em> is not re-entrant. It can also be configured for thread-safe by option <tt><a href="config.html#fs_reentrant">FF_FS_REENTRANT</a></tt>. In this case, also the OS dependent synchronization object control functions, <tt>ff_cre_syncobj/ff_del_syncobj/ff_req_grant/ff_rel_grant</tt>, need to be added to the project. There are some examples in the <tt>ffsystem.c</tt>. When a file function is called while the volume is being accessed by another task, the file function to the volume will be suspended until that task leaves the file function. If the wait time exceeded a period defined by <tt>FF_TIMEOUT</tt>, the file function will abort with <tt>FR_TIMEOUT</tt>. The timeout function might not be supported on the some RTOSs.</p>
|
||||
<p>There is an exception on the re-entrancy for <tt>f_mount/f_mkfs</tt> function. These volume management functions are not re-entrant to the same volume. When use these functions, other tasks need to avoid to access the volume.</p>
|
||||
<p>Remarks: This section describes on the re-entrancy of the FatFs module itself. The <tt>FF_FS_REENTRANT</tt> option enables only exclusive use of each filesystem objects and FatFs never prevents to re-enter <tt>disk_*()</tt> functions. Thus the low level disk I/O layer must be always thread-safe when FatFs API is re-entered for different volumes.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="dup">
|
||||
<h3>Duplicated File Open</h3>
|
||||
<p>FatFs module does not support the read/write collision control of duplicated open to a file. The duplicated open is permitted only when each of open method to a file is read mode. The duplicated open with one or more write mode to a file is always prohibited, and also open file must not be renamed or deleted. A violation of these rules can cause data colluption.</p>
|
||||
<p>The file lock control can be enabled by <tt><a href="config.html#fs_lock">FF_FS_LOCK</a></tt> option. The value of option defines the number of open objects to manage simultaneously. In this case, if any open, rename or remove that violating the file shareing rule that described above is attempted, the file function will rejected with <tt>FR_LOCKED</tt>. If number of open objects, files and sub-directories, is equal to <tt>FF_FS_LOCK</tt>, an extra <tt>f_open/f_opendir</tt> function will fail with <tt>FR_TOO_MANY_OPEN_FILES</tt>.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="fs1">
|
||||
<h3>Performance Effective File Access</h3>
|
||||
<p>For good read/write throughput on the small embedded systems with limited size of memory, application programmer should consider what process is done in the FatFs module. The file data on the volume is transferred in following sequence by <tt>f_read</tt> function.</p>
|
||||

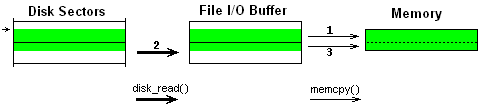

<p>Figure 1. Sector misaligned read (short)<br>
|
||||
<img src="../res/f1.png" width="490" height="110" alt="">
|
||||
</p>
|
||||

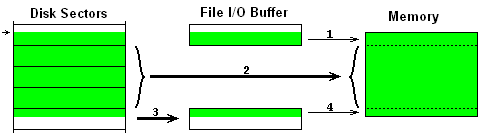

<p>Figure 2. Sector misaligned read (long)<br>
|
||||
<img src="../res/f2.png" width="490" height="140" alt="">
|
||||
</p>
|
||||

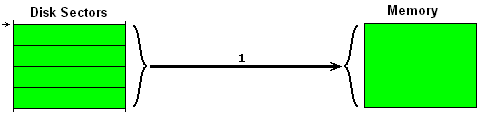

<p>Figure 3. Fully sector aligned read<br>
|
||||
<img src="../res/f3.png" width="490" height="119" alt="">
|
||||
</p>
|
||||
<p>The file I/O buffer is a sector buffer to read/write a part of data on the sector. The sector buffer is either file private sector buffer on each file object or shared sector buffer in the filesystem object. The buffer configuration option <tt><a href="config.html#fs_tiny">FF_FS_TINY</a></tt> determins which sector buffer is used for the file data transfer. When tiny buffer configuration (1) is selected, data memory consumption is reduced <tt>FF_MAX_SS</tt> bytes each file object. In this case, FatFs module uses only a sector buffer in the filesystem object for file data transfer and FAT/directory access. The disadvantage of the tiny buffer configuration is: the FAT data cached in the sector buffer will be lost by file data transfer and it must be reloaded at every cluster boundary. However it will be suitable for most application from view point of the decent performance and low memory comsumption.</p>
|
||||
<p>Figure 1 shows that a partial sector, sector misaligned part of the file, is transferred via the file I/O buffer. At long data transfer shown in Figure 2, middle of transfer data that covers one or more sector is transferred to the application buffer directly. Figure 3 shows that the case of entier transfer data is aligned to the sector boundary. In this case, file I/O buffer is not used. On the direct transfer, the maximum extent of sectors are read with <tt>disk_read</tt> function at a time but the multiple sector transfer is divided at cluster boundary even if it is contiguous.</p>
|
||||
<p>Therefore taking effort to sector aligned read/write accesss eliminates buffered data transfer and the read/write performance will be improved. Besides the effect, cached FAT data will not be flushed by file data transfer at the tiny configuration, so that it can achieve same performance as non-tiny configuration with small memory footprint.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="fs2">
|
||||
<h3>Considerations on Flash Memory Media</h3>
|
||||
<p>To maximize the write performance of flash memory media, such as SDC, CFC and U Disk, it must be controlled in consideration of its characteristitcs.</p>
|
||||
<h4>Using Mutiple-Sector Write</h4>
|
||||
<div class="rset">
|
||||

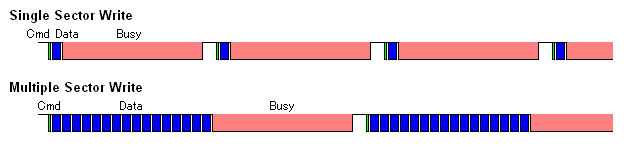

Figure 6. Comparison between Multiple/Single Sector Write<br>
|
||||
<img src="../res/f6.png" width="630" height="148" alt="fig.6">
|
||||
</div>
|
||||
<p>The write throughput of the flash memory media becomes the worst at single sector write transaction. The write throughput increases as the number of sectors per a write transaction as shown in Figure 6. This effect more appers at faster interface speed and the performance ratio often becomes grater than ten. <a href="../res/rwtest2.png">This graph</a> is clearly explaining how fast is multiple block write (W:16K, 32 sectors) than single block write (W:100, 1 sector), and also larger card tends to be slow at single block write. Number of write transactions also affects life time of the flash memory media. When compared at same amount of write data, the single sector write in Figure 6 above wears flash memory media 16 times more than multiple sector write in Figure 6 below. Single sector write is pretty pain for the flash memory media.</p>
|
||||
<p>Therefore the application program should write the data in large block as possible. The ideal write chunk size and alighment is size of sector, and size of cluster is the best. Of course all layers between the application and the storage device must have consideration on multiple sector write, however most of open-source memory card drivers lack it. Do not split a multiple sector write request into single sector write transactions or the write throughput gets poor. Note that FatFs module and its sample disk drivers supprt multiple sector read/write operation. </p>
|
||||
<h4>Forcing Memory Erase</h4>
|
||||
<p>When remove a file with <tt>f_unlink</tt> function, the data clusters occupied by the file are marked 'free' on the FAT. But the data sectors containing the file data are not that applied any process, so that the file data left occupies a part of the flash memory array as 'live block'. If the file data can be erased on removing the file, those data blocks will be turned into the free block pool. This may skip internal block erase operation to the data block on next write operation. As the result the write performance might be improved. FatFs can manage this function by setting <tt><a href="config.html#use_trim">FF_USE_TRIM</a></tt> to 1. Note that this is an expectation of internal process of the storage device and not that always effective. Most applications will not need this function. Also <tt>f_unlink</tt> function can take a time when remove a large file.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="critical">
|
||||
<h3>Critical Section</h3>
|
||||
<p>If a write operation to the FAT volume is interrupted due to an accidental failure, such as sudden blackout, incorrect media removal and unrecoverable disk error, the FAT structure on the volume can be broken. Following images shows the critical section of the FatFs module.</p>
|
||||
<div class="lset">
|
||||

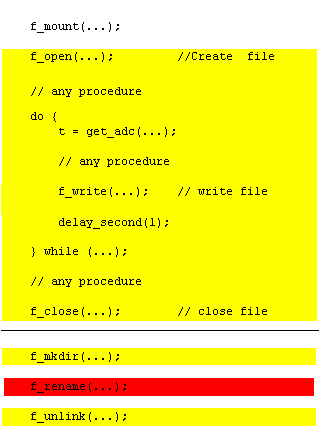

Figure 4. Long critical section<br>
|
||||
<img src="../res/f4.png" width="320" height="436" alt="fig.4">
|
||||
</div>
|
||||
<div class="lset">
|
||||
Figure 5. Minimized critical section<br>
|
||||
<img src="../res/f5.png" width="320" height="436" alt="fig.5">
|
||||
</div>
|
||||
<br class="clr">
|
||||
<p>An interruption in the red section can cause a cross link; as a result, the object being changed can be lost. If an interruption in the yellow section is occured, there is one or more possibility listed below.</p>
|
||||
<ul>
|
||||
<li>The file data being rewrited is collapsed.</li>
|
||||
<li>The file being appended returns initial state.</li>
|
||||
<li>The file created as new is gone.</li>
|
||||
<li>The file created as new or overwritten remains but no content.</li>
|
||||
<li>Efficiency of disk use gets worse due to lost clusters.</li>
|
||||
</ul>
|
||||
<p>Each case does not affect any file not opened in write mode. To minimize risk of data loss, the critical section can be minimized by minimizing the time that file is opened in write mode or using <tt>f_sync</tt> function as shown in Figure 5.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="fs3">
|
||||
<h3>Extended Use of FatFs API</h3>
|
||||
<p>These are examples of extended use of FatFs APIs. New item will be added whenever a useful code is found.</p>
|
||||
<ol>
|
||||
<li><a href="../res/app1.c">Open or create a file for append</a> (for only R0.12 and earlier)</li>
|
||||
<li><a href="../res/app2.c">Empty a directory</a></li>
|
||||
<li><a href="../res/app3.c">Allocate contiguous area to the file</a> (for only R0.11a and earlier)</li>
|
||||
<li><a href="../res/app4.c">Compatibility checker for low level disk I/O module</a></li>
|
||||
<li><a href="../res/mkfatimg.zip">FAT image creator</a></li>
|
||||
</ol>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="license">
|
||||
<h3>About FatFs License</h3>
|
||||
<p>FatFs has being developped as a personal project of the author, ChaN. It is free from the code anyone else wrote at current release. Following code block shows a copy of the FatFs license document that included in the source files.</p>
|
||||
<pre>
|
||||
/*----------------------------------------------------------------------------/
|
||||
/ FatFs - Generic FAT Filesystem Module Rx.xx /
|
||||
/-----------------------------------------------------------------------------/
|
||||
/
|
||||
/ Copyright (C) 20xx, ChaN, all right reserved.
|
||||
/
|
||||
/ FatFs module is an open source software. Redistribution and use of FatFs in
|
||||
/ source and binary forms, with or without modification, are permitted provided
|
||||
/ that the following condition is met:
|
||||
/
|
||||
/ 1. Redistributions of source code must retain the above copyright notice,
|
||||
/ this condition and the following disclaimer.
|
||||
/
|
||||
/ This software is provided by the copyright holder and contributors "AS IS"
|
||||
/ and any warranties related to this software are DISCLAIMED.
|
||||
/ The copyright owner or contributors be NOT LIABLE for any damages caused
|
||||
/ by use of this software.
|
||||
/----------------------------------------------------------------------------*/
|
||||
</pre>
|
||||
<p>Therefore FatFs license is one of the BSD-style licenses but there is a significant feature. FatFs is mainly intended for embedded systems. In order to extend the usability for commercial products, the redistributions of FatFs in binary form, such as embedded code, binary library and any forms without source code, does not need to include about FatFs in the documentations. This is equivalent to the 1-clause BSD license. Of course FatFs is compatible with the most of open source software licenses including GNU GPL. When you redistribute the FatFs source code with any changes or create a fork, the license can also be changed to GNU GPL, BSD-style license or any open source software license that not conflict with FatFs license.</p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return Home</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,81 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/chdir.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_chdir</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_chdir</h2>
|
||||
<p>The f_chdir function changes the current directory of a drive.</p>
|
||||
<pre>
|
||||
FRESULT f_chdir (
|
||||
const TCHAR* <span class="arg">path</span> <span class="c">/* [IN] Path name */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">directory</a> to go.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_chdir</tt> function changes the current directory of the logical drive. The current directory of a drive is set to the root directory when the drive is mounted. Note that the current directory is retained in the each file system object, so that it also affects other tasks that use the volume.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_RPATH >= 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Change current direcoty of the current drive ('dir1' under root directory) */</span>
|
||||
<em>f_chdir</em>("/dir1");
|
||||
|
||||
<span class="c">/* Change current direcoty of drive 2 (parent directory) */</span>
|
||||
<em>f_chdir</em>("2:..");
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="chdrive.html">f_chdrive</a>, <a href="getcwd.html">f_getcwd</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,71 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/chdrive.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_chdrive</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_chdrive</h2>
|
||||
<p>The f_chdrive function changes the current drive.</p>
|
||||
<pre>
|
||||
FRESULT f_chdrive (
|
||||
const TCHAR* <span class="arg">path</span> <span class="c">/* [IN] Logical drive number */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Specifies the <a href="filename.html">logical drive number</a> to be set as the current drive.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_chdrive</tt> function changes the current drive. The initial value of the current drive number is 0. Note that the current drive is retained in a static variable so that it also affects other tasks that using the file functions.</p>
|
||||
</div>
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_RPATH >= 1</tt> and <tt>FF_VOLUMES >= 2</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<em>f_chdrive</em>("2:"); <span class="c">/* Set current drive to drive 2 */</span>
|
||||
|
||||
<em>f_chdrive</em>(""); <span class="c">/* No effect (set current drive to current drive) */</span>
|
||||
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="chdir.html">f_chdir</a>, <a href="getcwd.html">f_getcwd</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,89 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/chmod.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_chmod</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_chmod</h2>
|
||||
<p>The f_chmod function changes the attribute of a file or sub-directory.</p>
|
||||
<pre>
|
||||
FRESULT f_chmod (
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Object name */</span>
|
||||
BYTE <span class="arg">attr</span>, <span class="c">/* [IN] Attribute flags */</span>
|
||||
BYTE <span class="arg">mask</span> <span class="c">/* [IN] Attribute masks */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies an <a href="filename.html">object</a> to be changed</dd>
|
||||
<dt>attr</dt>
|
||||
<dd>Attribute flags to be set in one or more combination of the following flags. The specified flags are set and others are cleard.<br>
|
||||
<table class="lst">
|
||||
<tr><th>Attribute</th><th>Description</th></tr>
|
||||
<tr><td>AM_RDO</td><td>Read only</td></tr>
|
||||
<tr><td>AM_ARC</td><td>Archive</td></tr>
|
||||
<tr><td>AM_SYS</td><td>System</td></tr>
|
||||
<tr><td>AM_HID</td><td>Hidden</td></tr>
|
||||
</table>
|
||||
</dd>
|
||||
<dt>mask</dt>
|
||||
<dd>Attribute mask that specifies which attribute is changed. The specified attributes are set or cleard and others are left unchanged.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ok">FR_NO_FILE</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_chmod</tt> function changes the attribute of a file or sub-directory.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_USE_CHMOD == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Set Read-only, clear Archive and others are left unchanged. */</span>
|
||||
<em>f_chmod</em>("file.txt", AM_RDO, AM_RDO | AM_ARC);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,65 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/close.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_close</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_close</h2>
|
||||
<p>The f_close function closes an open file.</p>
|
||||
<pre>
|
||||
FRESULT f_close (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] Pointer to the file object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure to be closed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_close</tt> function closes an open file object. If the file has been changed, the cached information of the file is written back to the volume. After the function succeeded, the file object is no longer valid and it can be discarded.</p>
|
||||
<p>Note that if the file object is in read-only mode and <tt>FF_FS_LOCK</tt> is not enabled, the file object can also be discarded without this procedure. However this is not recommended for future compatibility.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="read.html">f_read</a>, <a href="write.html">f_write</a>, <a href="sync.html">f_sync</a>, <a href="sfile.html">FIL</a>, <a href="sfatfs.html">FATFS</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,64 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/close.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_closedir</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_closedir</h2>
|
||||
<p>The f_closedir function closes an open directory.</p>
|
||||
<pre>
|
||||
FRESULT f_closedir (
|
||||
DIR* <span class="arg">dp</span> <span class="c">/* [IN] Pointer to the directory object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>dp</dt>
|
||||
<dd>Pointer to the open directory object structure to be closed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_closedir</tt> function closes an open directory object. After the function succeeded, the directory object is no longer valid and it can be discarded.</p>
|
||||
<p>Note that the directory object can also be discarded without this procedure when option <tt>FF_FS_LOCK</tt> is not enabled. However this is not recommended for future compatibility.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_MINIMIZE <= 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="opendir.html">f_opendir</a>, <a href="readdir.html">f_readdir</a>, <a href="sdir.html">DIR</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,253 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/config.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - Configuration Options</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
<h1>Configuration Options</h1>
|
||||
<p>There are many options to configure the functions of FatFs for requirement of each project. The configuration options are defined in the <em><tt>ffconf.h</tt></em>.</p>
|
||||
<ul>
|
||||
<li>Function Configurations
|
||||
<ul>
|
||||
<li><a href="#fs_readonly">FF_FS_READONLY</a></li>
|
||||
<li><a href="#fs_minimize">FF_FS_MINIMIZE</a></li>
|
||||
<li><a href="#use_strfunc">FF_USE_STRFUNC</a></li>
|
||||
<li><a href="#use_find">FF_USE_FIND</a></li>
|
||||
<li><a href="#use_mkfs">FF_USE_MKFS</a></li>
|
||||
<li><a href="#use_fastseek">FF_USE_FASTSEEK</a></li>
|
||||
<li><a href="#use_expand">FF_USE_EXPAND</a></li>
|
||||
<li><a href="#use_chmod">FF_USE_CHMOD</a></li>
|
||||
<li><a href="#use_label">FF_USE_LABEL</a></li>
|
||||
<li><a href="#use_forward">FF_USE_FORWARD</a></li>
|
||||
</ul>
|
||||
</li>
|
||||
<li>Namespace and Locale Configurations
|
||||
<ul>
|
||||
<li><a href="#code_page">FF_CODE_PAGE</a></li>
|
||||
<li><a href="#use_lfn">FF_USE_LFN</a></li>
|
||||
<li><a href="#max_lfn">FF_MAX_LFN</a></li>
|
||||
<li><a href="#lfn_unicode">FF_LFN_UNICODE</a></li>
|
||||
<li><a href="#strf_encode">FF_STRF_ENCODE</a></li>
|
||||
<li><a href="#fs_rpath">FF_FS_RPATH</a></li>
|
||||
</ul>
|
||||
</li>
|
||||
<li>Volume/Drive Configurations
|
||||
<ul>
|
||||
<li><a href="#volumes">FF_VOLUMES</a></li>
|
||||
<li><a href="#str_volume_id">FF_STR_VOLUME_ID</a></li>
|
||||
<li><a href="#volume_strs">FF_VOLUME_STRS</a></li>
|
||||
<li><a href="#multi_partition">FF_MULTI_PARTITION</a></li>
|
||||
<li><a href="#max_ss">FF_MIN_SS, FF_MAX_SS</a></li>
|
||||
<li><a href="#use_trim">FF_USE_TRIM</a></li>
|
||||
<li><a href="#fs_nofsinfo">FF_FS_NOFSINFO</a></li>
|
||||
</ul>
|
||||
</li>
|
||||
<li>System Configurations
|
||||
<ul>
|
||||
<li><a href="#fs_tiny">FF_FS_TINY</a></li>
|
||||
<li><a href="#fs_exfat">FF_FS_EXFAT</a></li>
|
||||
<li><a href="#fs_nortc">FF_FS_NORTC</a></li>
|
||||
<li><a href="#nortc_time">FF_NORTC_MON, FF_NORTC_MDAY, FF_NORTC_YEAR</a></li>
|
||||
<li><a href="#fs_lock">FF_FS_LOCK</a></li>
|
||||
<li><a href="#fs_reentrant">FF_FS_REENTRANT</a></li>
|
||||
<li><a href="#fs_timeout">FF_FS_TIMEOUT</a></li>
|
||||
<li><a href="#sync_t">FF_SYNC_t</a></li>
|
||||
</ul>
|
||||
</li>
|
||||
</ul>
|
||||
|
||||
<div class="para doc" id="func">
|
||||
<h3>Function Configurations</h3>
|
||||
|
||||
<h4 id="fs_readonly">FF_FS_READONLY</h4>
|
||||
<p>Read/Write (0) or Read-only (1). Read-only configuration removes writing API functions, <tt>f_write</tt>, <tt>f_sync</tt>, <tt>f_unlink</tt>, <tt>f_mkdir</tt>, <tt>f_chmod</tt>, <tt>f_rename</tt>, <tt>f_truncate</tt>, <tt>f_getfree</tt> and optional writing functions as well.</p>
|
||||
|
||||
<h4 id="fs_minimize">FF_FS_MINIMIZE</h4>
|
||||
<p>This option defines minimization level to remove some basic API functions as follows:</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>0</td><td>All basic API functions are available.</td></tr>
|
||||
<tr><td>1</td><td><tt>f_stat</tt>, <tt>f_getfree</tt>, <tt>f_unlink</tt>, <tt>f_mkdir</tt>, <tt>f_chmod</tt>, <tt>f_utime</tt>, <tt>f_truncate</tt> and <tt>f_rename</tt> function are removed.</td></tr>
|
||||
<tr><td>2</td><td><tt>f_opendir</tt>, <tt>f_readdir</tt> and <tt>f_closedir</tt> function are removed in addition to 1.</td></tr>
|
||||
<tr><td>3</td><td><tt>f_lseek</tt> function is removed in addition to 2.</td></tr>
|
||||
</table>
|
||||
|
||||
<h4 id="use_strfunc">FF_USE_STRFUNC</h4>
|
||||
<p>This option switches string functions, <tt>f_gets</tt>, <tt>f_putc</tt>, <tt>f_puts</tt> and <tt>f_printf</tt>.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>0</td><td>Disable string functions.</td></tr>
|
||||
<tr><td>1</td><td>Enable string functions without LF-CRLF conversion.</td></tr>
|
||||
<tr><td>2</td><td>Enable string functions with LF-CRLF conversion.</td></tr>
|
||||
</table>
|
||||
|
||||
<h4 id="use_find">FF_USE_FIND</h4>
|
||||
<p>Disable (0) or Enable (1) filtered directory read functions, <tt>f_findfirst</tt> and <tt>f_findnext</tt>. Also <tt>FF_FS_MINIMIZE</tt> needs to be 0 or 1.</p>
|
||||
|
||||
<h4 id="use_mkfs">FF_USE_MKFS</h4>
|
||||
<p>Disable (0) or Enable (1) <tt>f_mkfs</tt> function.</p>
|
||||
|
||||
<h4 id="use_fastseek">FF_USE_FASTSEEK</h4>
|
||||
<p>Disable (0) or Enable (1) fast seek function to enable accelerated mode for <tt>f_lseek</tt>, <tt>f_read</tt> and <tt>f_write</tt> function. For more information, read <a href="lseek.html">here</a>.</p>
|
||||
|
||||
<h4 id="use_expand">FF_USE_EXPAND</h4>
|
||||
<p>Disable (0) or Enable (1) <tt>f_expand</tt> function.</p>
|
||||
|
||||
<h4 id="use_chmod">FF_USE_CHMOD</h4>
|
||||
<p>Disable (0) or Enable (1) metadata control functions, <tt>f_chmod</tt> and <tt>f_utime</tt>. Also <tt>FF_FS_READONLY</tt> needs to be 0.</p>
|
||||
|
||||
<h4 id="use_label">FF_USE_LABEL</h4>
|
||||
<p>Disable (0) or Enable (1) API functions for volume label, <tt>f_getlabel</tt> and <tt>f_setlabel</tt>.</p>
|
||||
|
||||
<h4 id="use_forward">FF_USE_FORWARD</h4>
|
||||
<p>Disable (0) or Enable (1) <tt>f_forward</tt> function.</p>
|
||||
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para doc" id="name">
|
||||
<h3>Namespace and Locale Configurations</h3>
|
||||
|
||||
<h4 id="code_page">FF_CODE_PAGE</h4>
|
||||
<p>This option specifies the OEM code page to be used on the target system. Incorrect setting of the code page can cause a file open failure. If any non-ASCII character is not used at all, there is no difference between any code pages.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Code page</th></tr>
|
||||
<tr><td>0</td><td>Include all code pages below and set by <tt>f_setcp()</tt></td></tr>
|
||||
<tr><td>437</td><td>U.S.</td></tr>
|
||||
<tr><td>720</td><td>Arabic</td></tr>
|
||||
<tr><td>737</td><td>Greek</td></tr>
|
||||
<tr><td>771</td><td>KBL</td></tr>
|
||||
<tr><td>775</td><td>Baltic</td></tr>
|
||||
<tr><td>850</td><td>Latin 1</td></tr>
|
||||
<tr><td>852</td><td>Latin 2</td></tr>
|
||||
<tr><td>855</td><td>Cyrillic</td></tr>
|
||||
<tr><td>857</td><td>Turkish</td></tr>
|
||||
<tr><td>860</td><td>Portuguese</td></tr>
|
||||
<tr><td>861</td><td>Icelandic</td></tr>
|
||||
<tr><td>862</td><td>Hebrew</td></tr>
|
||||
<tr><td>863</td><td>Canadian French</td></tr>
|
||||
<tr><td>864</td><td>Arabic</td></tr>
|
||||
<tr><td>865</td><td>Nordic</td></tr>
|
||||
<tr><td>866</td><td>Russian</td></tr>
|
||||
<tr><td>869</td><td>Greek 2</td></tr>
|
||||
<tr><td>932</td><td>Japanese (DBCS)</td></tr>
|
||||
<tr><td>936</td><td>Simplified Chinese (DBCS)</td></tr>
|
||||
<tr><td>949</td><td>Korean (DBCS)</td></tr>
|
||||
<tr><td>950</td><td>Traditional Chinese (DBCS)</td></tr>
|
||||
</table>
|
||||
|
||||
<h4 id="use_lfn">FF_USE_LFN</h4>
|
||||
<p>This option switches the support for long file name (LFN). When enable the LFN, Unicode support functions <tt>ffunicode.c</tt> need to be added to the project. The working buffer for LFN occupies <tt>(FF_MAX_LFN + 1) * 2</tt> bytes and additional <tt>((FF_MAX_LFN + 44) / 15 * 32</tt> bytes when exFAT enabled. When use stack for the working buffer, take care on stack overflow. When use heap memory for the working buffer, memory management functions, <tt>ff_memalloc</tt> and <tt>ff_memfree</tt>, need to be added to the project.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>0</td><td>Disable LFN. Path name in only 8.3 format can be used.</td></tr>
|
||||
<tr><td>1</td><td>Enable LFN with static working buffer on the BSS. Always NOT thread-safe.</td></tr>
|
||||
<tr><td>2</td><td>Enable LFN with dynamic working buffer on the STACK.</td></tr>
|
||||
<tr><td>3</td><td>Enable LFN with dynamic working buffer on the HEAP.</td></tr>
|
||||
</table>
|
||||
|
||||
<h4 id="max_lfn">FF_MAX_LFN</h4>
|
||||
<p>This option defines the size of LFN working buffer from 12 to 255 in unit of character. This option has no effect when LFN is disabled.</p>
|
||||
|
||||
<h4 id="lfn_unicode">FF_LFN_UNICODE</h4>
|
||||
<p>This option switches character encoding on the API, ANSI/OEM (0) or Unicode in UTF-16 (1). To use Unicode string for the path name, enable LFN and set this option to 1. This option also affects behavior of string I/O functions. When LFN is disabled, this option has no effect. For more information, read <a href="filename.html#uni">here</a>.</p>
|
||||
|
||||
<h4 id="strf_encode">FF_STRF_ENCODE</h4>
|
||||
<p>When Unicode API is selected by <tt>FF_LFN_UNICODE = 1</tt>, string I/O functions, <tt>f_gets</tt>, <tt>f_putc</tt>, <tt>f_puts</tt> and <tt>f_printf</tt> convert the character encodins in it. This option defines the assumption of character encoding <em>on the file</em> to be read/written via those functions. When Unicode API is not selected, the string functions work without any conversion and this option has no effect.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>0</td><td>ANSI/OEM</td></tr>
|
||||
<tr><td>1</td><td>UTF-16LE</td></tr>
|
||||
<tr><td>2</td><td>UTF-16BE</td></tr>
|
||||
<tr><td>3</td><td>UTF-8</td></tr>
|
||||
</table>
|
||||
|
||||
<h4 id="fs_rpath">FF_FS_RPATH</h4>
|
||||
<p>This option configures relative path function. For more information, read <a href="filename.html#nam">here</a>.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>0</td><td>Disable relative path function and remove related functions.</td></tr>
|
||||
<tr><td>1</td><td>Enable relative path function. <tt>f_chdir</tt> and <tt>f_chdrive</tt> function is available.</td></tr>
|
||||
<tr><td>2</td><td><tt>f_getcwd</tt> function is available in addition to 1</td></tr>
|
||||
</table>
|
||||
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para doc" id="volume">
|
||||
<h3>Volume/Drive Configurations</h3>
|
||||
|
||||
<h4 id="volumes">FF_VOLUMES</h4>
|
||||
<p>This option configures number of volumes (logical drives, from 1 to 10) to be used.</p>
|
||||
|
||||
<h4 id="str_volume_id">FF_STR_VOLUME_ID</h4>
|
||||
<p>Disable (0) or Enable (1). This option switches the support for string volume ID. When enabled, also pre-defined strings in <tt>FF_VOLUME_STRS</tt> can be used as drive identifier in the path name.</p>
|
||||
|
||||
<h4 id="volume_strs">FF_VOLUME_STRS</h4>
|
||||
<p>This option defines the drive ID strings for each logical drives. Number of items must not be less than <tt>FF_VOLUMES</tt>. Valid characters for the drive ID string are: A-Z and 0-9.</p>
|
||||
|
||||
<h4 id="multi_partition">FF_MULTI_PARTITION</h4>
|
||||
<p>Disable (0) or Enable (1). This option switches multi-partition function. By default (0), each logical drive number is bound to the same physical drive number and only a volume in the physical drive is mounted. When enabled, each logical drive is bound to the partition on the physical drive listed in the user defined partition resolution table <tt>VolToPart[]</tt>. Also <tt>f_fdisk</tt> funciton will be available. For more information, read <a href="filename.html#vol">here</a>.</p>
|
||||
|
||||
<h4 id="max_ss">FF_MIN_SS, FF_MAX_SS</h4>
|
||||
<p>This set of options defines the extent of sector size used on the low level disk I/O interface, <tt>disk_read</tt> and <tt>disk_write</tt> function. Valid values are 512, 1024, 2048 and 4096. <tt>FF_MIN_SS</tt> defines minimum sector size and <tt>FF_MAX_SS</tt> defines the maximum sector size. Always set both 512 for memory card and harddisk. But a larger value may be required for on-board flash memory and some type of optical media. When <tt>FF_MAX_SS > FF_MIN_SS</tt>, support of variable sector size is enabled and <tt>GET_SECTOR_SIZE</tt> command needs to be implemented to the <tt>disk_ioctl</tt> function.</p>
|
||||
|
||||
<h4 id="use_trim">FF_USE_TRIM</h4>
|
||||
<p>Disable (0) or Enable (1). This option switches ATA-TRIM function. To enable Trim function, also <tt>CTRL_TRIM</tt> command should be implemented to the <tt>disk_ioctl</tt> function.</p>
|
||||
|
||||
<h4 id="fs_nofsinfo">FF_FS_NOFSINFO</h4>
|
||||
<p>0 to 3. If you need to know correct free space on the FAT32 volume, set bit 0 of this option, and <tt>f_getfree</tt> function at first time after volume mount will force a full FAT scan. Bit 1 controls the use of last allocated cluster number.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>bit0=0</td><td>Use free cluster count in the FSINFO if available.</td></tr>
|
||||
<tr><td>bit0=1</td><td>Do not trust free cluster count in the FSINFO.</td></tr>
|
||||
<tr><td>bit1=0</td><td>Use last allocated cluster number in the FSINFO to find a free cluster if available.</td></tr>
|
||||
<tr><td>bit1=1</td><td>Do not trust last allocated cluster number in the FSINFO.</td></tr>
|
||||
</table>
|
||||
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para doc" id="system">
|
||||
<h3>System Configurations</h3>
|
||||
|
||||
<h4 id="fs_tiny">FF_FS_TINY</h4>
|
||||
<p>Normal (0) or Tiny (1). At the tiny configuration, size of the file object <tt>FIL</tt> is reduced <tt>FF_MAX_SS</tt> bytes. Instead of private data buffer eliminated from the file object, common sector buffer in the filesystem object <tt>FATFS</tt> is used for the file data transfer.</p>
|
||||
|
||||
<h4 id="fs_exfat">FF_FS_EXFAT</h4>
|
||||
<p>This option switches support for the exFAT filesystem in addition to the FAT/FAT32 filesystem, Enabled(1) or Disabled(0). To enable this feature, also LFN must be enabled and configureing <tt>FF_LFN_UNICODE = 1</tt> and <tt>FF_MAX_LFN = 255</tt> is recommended for full-featured exFAT function. Note that enabling exFAT discards ANSI C (C89) compatibility because of need for 64-bit integer type.</p>
|
||||
|
||||
<h4 id="fs_nortc">FF_FS_NORTC</h4>
|
||||
<p>Use RTC (0) or Do not use RTC (1). This option controls timestamp function. If the system does not have an RTC function or valid timestamp is not needed, set <tt>FF_FS_NORTC</tt> to 1 to disable the timestamp function. Any object modified by FatFs will have a fixed timestamp defined by <tt>FF_NORTC_MON</tt>, <tt>FF_NORTC_MDAY</tt> and <tt>FF_NORTC_YEAR</tt>. To use the timestamp function, set <tt>FF_FS_NORTC = 0</tt> and add <tt>get_fattime</tt> function to the project to get the current time form real-time clock. This option has no effect at read-only configuration.</p>
|
||||
|
||||
<h4 id="nortc_time">FF_NORTC_MON, FF_NORTC_MDAY, FF_NORTC_YEAR</h4>
|
||||
<p>This set of options defines the time to be used at no RTC systems. This option has no effect at read-only configuration or <tt>FF_FS_NORTC = 0</tt>.</p>
|
||||
|
||||
<h4 id="fs_lock">FF_FS_LOCK</h4>
|
||||
<p>This option switches file lock function to control duplicated file open and illegal operations to open objects. Note that the file lock function is independent of re-entrancy. This option must be 0 at read-only configuration.</p>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Description</th></tr>
|
||||
<tr><td>0</td><td>Disable file lock function. To avoid collapsing file by wrong file operation, application program needs to avoid illegal open, remove and rename to the open objects.</td></tr>
|
||||
<tr><td>>0</td><td>Enable file lock function. The value defines how many files/sub-directories can be opened simultaneously under the file lock control. Illigal operations to the open object will be rejected with <tt>FR_LOCKED</tt>.</td></tr>
|
||||
</table>
|
||||
|
||||
<h4 id="fs_reentrant">FF_FS_REENTRANT</h4>
|
||||
<p>Disable (0) or Enable (1). This option switches the re-entrancy (thread safe) of the FatFs module itself. Note that file/directory access to the different volume is always re-entrant and it can work simultaneously regardless of this option but volume control functions. <tt>f_mount</tt>, <tt>f_mkfs</tt> and <tt>f_fdisk</tt>, are always not re-entrant. Only file/directory access to the same volume, in other words, exclusive use of each filesystem object, is under control of this function. To enable this feature, also user provided synchronization handlers, <tt>ff_req_grant</tt>, <tt>ff_rel_grant</tt>, <tt>ff_del_syncobj</tt> and <tt>ff_cre_syncobj</tt>, need to be added to the project. Sample code is available in <tt>ffsystem.c</tt>.</p>
|
||||
|
||||
<h4 id="fs_timeout">FF_FS_TIMEOUT</h4>
|
||||
<p>Number of time ticks to abort the file function with <tt>FR_TIMEOUT</tt> when wait time is too long. This option has no effect when <tt>FF_FS_REENTRANT = 0</tt>.</p>
|
||||
|
||||
<h4 id="sync_t">FF_SYNC_t</h4>
|
||||
<p>This option defines O/S dependent sync object type. e.g. <tt>HANDLE</tt>, <tt>ID</tt>, <tt>OS_EVENT*</tt>, <tt>SemaphoreHandle_t</tt> and etc. A header file for O/S definitions needs to be included somewhere in the scope of <tt>ff.c</tt>. This option has no effect when <tt>FF_FS_REENTRANT = 0</tt>.</p>
|
||||
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,46 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/dinit.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - disk_initialize</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>disk_initialize</h2>
|
||||
<p>The disk_initialize function is called to initializes the storage device.</p>
|
||||
<pre>
|
||||
DSTATUS disk_initialize (
|
||||
BYTE <span class="arg">pdrv</span> <span class="c">/* [IN] Physical drive number */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>pdrv</dt>
|
||||
<dd>Physical drive number to identify the target device. Always zero at single drive system.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>This function returns the current drive status flags as the result. For details of the drive status, refer to the <a href="dstat.html">disk_status</a> function.</p>
|
||||
</div>
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>This function initializes the storage device and put it ready to generic read/write. When the function succeeded, <tt>STA_NOINIT</tt> flag in the return value is cleared.</p>
|
||||
<p><em>Remarks: This function needs to be under control of FatFs module. Application program MUST NOT call this function, or FAT structure on the volume can be broken. To re-initialize the filesystem, use <tt>f_mount</tt> function instead.</em></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,100 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/dioctl.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - disk_ioctl</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>disk_ioctl</h2>
|
||||
<p>The disk_ioctl function is called to control device specific features and miscellaneous functions other than generic read/write.</p>
|
||||
<pre>
|
||||
DRESULT disk_ioctl (
|
||||
BYTE <span class="arg">pdrv</span>, <span class="c">/* [IN] Drive number */</span>
|
||||
BYTE <span class="arg">cmd</span>, <span class="c">/* [IN] Control command code */</span>
|
||||
void* <span class="arg">buff</span> <span class="c">/* [I/O] Parameter and data buffer */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>pdrv</dt>
|
||||
<dd>Physical drive number to identify the target device.</dd>
|
||||
<dt>cmd</dt>
|
||||
<dd>Command code.</dd>
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to the parameter depends on the command code. Do not care if no parameter to be passed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Value</h4>
|
||||
<dl class="ret">
|
||||
<dt>RES_OK (0)</dt>
|
||||
<dd>The function succeeded.</dd>
|
||||
<dt>RES_ERROR</dt>
|
||||
<dd>An error occured.</dd>
|
||||
<dt>RES_PARERR</dt>
|
||||
<dd>The command code or parameter is invalid.</dd>
|
||||
<dt>RES_NOTRDY</dt>
|
||||
<dd>The device has not been initialized.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The FatFs module requires only five device independent commands described below.</p>
|
||||
<table class="lst">
|
||||
<caption>Standard ioctl command used by FatFs</caption>
|
||||
<tr><th>Command</th><th>Description</th></tr>
|
||||
<tr><td>CTRL_SYNC</td><td>Make sure that the device has finished pending write process. If the disk I/O module has a write back cache, the dirty buffers must be written back to the media immediately. Nothing to do for this command if each write operation to the media is completed within the <tt>disk_write</tt> function.</td></tr>
|
||||
<tr><td>GET_SECTOR_COUNT</td><td>Returns number of available sectors on the drive into the <tt>DWORD</tt> variable pointed by <tt class="arg">buff</tt>. This command is used in only <tt>f_mkfs</tt> and <tt>f_fdisk</tt> function to determine the volume/partition size to be created. Required at <tt>FF_USE_MKFS == 1</tt> or <tt>FF_MULTI_PARTITION == 1</tt>.</td></tr>
|
||||
<tr><td>GET_SECTOR_SIZE</td><td>Returns sector size of the device into the <tt>WORD</tt> variable pointed by <tt class="arg">buff</tt>. Valid return values for this command are 512, 1024, 2048 and 4096. This command is required only if <tt>FF_MAX_SS > FF_MIN_SS</tt>. When <tt>FF_MAX_SS == FF_MIN_SS</tt>, this command is never used and the device must work at that sector size.</td></tr>
|
||||
<tr><td>GET_BLOCK_SIZE</td><td>Returns erase block size of the flash memory media in unit of sector into the <tt>DWORD</tt> variable pointed by <tt class="arg">buff</tt>. The allowable value is from 1 to 32768 in power of 2. Return 1 if the erase block size is unknown or non flash memory media. This command is used by only <tt>f_mkfs</tt> function and it attempts to align data area on the erase block boundary. Required at <tt>FF_USE_MKFS == 1</tt>.</td></tr>
|
||||
<tr><td>CTRL_TRIM</td><td>Informs the device the data on the block of sectors is no longer needed and it can be erased. The sector block is specified by a <tt>DWORD</tt> array {<start sector>, <end sector>} pointed by <tt class="arg">buff</tt>. This is an identical command to Trim of ATA device. Nothing to do for this command if this funcion is not supported or not a flash memory device. FatFs does not check the result code and the file function is not affected even if the sector block was not erased well. This command is called on remove a cluster chain and in the <tt>f_mkfs</tt> function. Required at <tt>FF_USE_TRIM == 1</tt>.</td></tr>
|
||||
</table>
|
||||
|
||||
<p>FatFs never uses any device dependent command nor user defined command. Following table shows an example of non-standard commands may be useful for some applications.</p>
|
||||
<table class="lst">
|
||||
<caption>Example of optional ioctl command</caption>
|
||||
<tr><th>Command</th><th>Description</th></tr>
|
||||
<tr><td>CTRL_FORMAT</td><td>Create a physical format on the media. If <tt class="arg">buff</tt> is not null, it is pointer to the call-back function for progress notification.</td></tr>
|
||||
<tr><td>CTRL_POWER_IDLE</td><td>Put the device idle state. <tt>STA_NOINIT</tt> in the current status flags may not be set if the device goes active state by generic read/write function.</td></tr>
|
||||
<tr><td>CTRL_POWER_OFF</td><td>Put the device off state. Shut-down the power to the device and deinitialize the device interface if needed. <tt>STA_NOINIT</tt> in the current status flags must be set. The device goes active state by <tt>disk_initialize</tt> function.</td></tr>
|
||||
<tr><td>CTRL_LOCK</td><td>Lock media eject mechanism.</td></tr>
|
||||
<tr><td>CTRL_UNLOCK</td><td>Unlock media eject mechanism.</td></tr>
|
||||
<tr><td>CTRL_EJECT</td><td>Eject media cartridge. <tt>STA_NOINIT</tt> and <tt>STA_NODISK</tt> in status flag are set after the function succeeded.</td></tr>
|
||||
<tr><td>MMC_GET_TYPE</td><td>Get card type. The type flags, bit0:MMCv3, bit1:SDv1, bit2:SDv2+ and bit3:LBA, is stored to a BYTE variable pointed by <tt class="arg">buff</tt>. (MMC/SDC specific command)</td></tr>
|
||||
<tr><td>MMC_GET_CSD</td><td>Get CSD register into a 16-byte buffer pointed by <tt class="arg">buff</tt>. (MMC/SDC specific command)</td></tr>
|
||||
<tr><td>MMC_GET_CID</td><td>Get CID register into a 16-byte buffer pointed by <tt class="arg">buff</tt>. (MMC/SDC specific command)</td></tr>
|
||||
<tr><td>MMC_GET_OCR</td><td>Get OCR register into a 4-byte buffer pointed by <tt class="arg">buff</tt>. (MMC/SDC specific command)</td></tr>
|
||||
<tr><td>MMC_GET_SDSTAT</td><td>Get SDSTATUS register into a 64-byte buffer pointed by <tt class="arg">buff</tt>. (SDC specific command)</td></tr>
|
||||
<tr><td>ATA_GET_REV</td><td>Get the revision string into a 16-byte buffer pointed by <tt class="arg">buff</tt>. (ATA/CFC specific command)</td></tr>
|
||||
<tr><td>ATA_GET_MODEL</td><td>Get the model string into a 40-byte buffer pointed by <tt class="arg">buff</tt>. (ATA/CFC specific command)</td></tr>
|
||||
<tr><td>ATA_GET_SN</td><td>Get the serial number string into a 20-byte buffer pointed by <tt class="arg">buff</tt>. (ATA/CFC specific command)</td></tr>
|
||||
<tr><td>ISDIO_READ</td><td>Read a block of iSDIO registers specified by command structure pointed by <tt class="arg">buff</tt>. (FlashAir specific command)</td></tr>
|
||||
<tr><td>ISDIO_WRITE</td><td>Write a block of data to iSDIO registers specified by command structure pointed by <tt class="arg">buff</tt>. (FlashAir specific command)</td></tr>
|
||||
<tr><td>ISDIO_MRITE</td><td>Change bits in an iSDIO register specified by command structure pointed by <tt class="arg">buff</tt>. (FlashAir specific command)</td></tr>
|
||||
</table>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>The disk_ioctl function is not needed when <tt>FF_FS_READONLY == 1</tt> and <tt>FF_MAX_SS == FF_MIN_SS</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,72 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/dread.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - disk_read</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>disk_read</h2>
|
||||
<p>The disk_read function is called to read data from the sector(s) of storage device.</p>
|
||||
<pre>
|
||||
DRESULT disk_read (
|
||||
BYTE <span class="arg">pdrv</span>, <span class="c">/* [IN] Physical drive number */</span>
|
||||
BYTE* <span class="arg">buff</span>, <span class="c">/* [OUT] Pointer to the read data buffer */</span>
|
||||
DWORD <span class="arg">sector</span>, <span class="c">/* [IN] Start sector number */</span>
|
||||
UINT <span class="arg">count</span> <span class="c">/* [IN] Number of sectros to read */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>pdrv</dt>
|
||||
<dd>Physical drive number to identify the target device.</dd>
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to the first item of the <em>byte array</em> to store read data. Size of read data will be the sector size * <tt class="arg">count</tt> bytes.</dd>
|
||||
<dt>sector</dt>
|
||||
<dd>Start sector number in 32-bit LBA.</dd>
|
||||
<dt>count</dt>
|
||||
<dd>Number of sectors to read.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Value</h4>
|
||||
<dl class="ret">
|
||||
<dt>RES_OK (0)</dt>
|
||||
<dd>The function succeeded.</dd>
|
||||
<dt>RES_ERROR</dt>
|
||||
<dd>A hard error occured during the read operation and could not recover it.</dd>
|
||||
<dt>RES_PARERR</dt>
|
||||
<dd>Invalid parameter.</dd>
|
||||
<dt>RES_NOTRDY</dt>
|
||||
<dd>The device has not been initialized.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>Read/write operation to the generic storage devices, such as memory card, hadddisk and optical disk, is done in unit of block of data bytes called <em>sector</em>. FatFs supports the sector size in range of from 512 to 4096 bytes. When FatFs is configured for fixed sector size (<tt>FF_MIN_SS == MAX_SS</tt>, this is the most case), the read/write function must work at that sector size. When FatFs is configured for variable sector size (<tt>FF_MIN_SS != MAX_SS</tt>), the sector size of medium is inquired with <tt>disk_ioctl</tt> function immediately following <tt>disk_initialize</tt> function.</p>
|
||||
<p>The memory address specified by <tt class="arg">buff</tt> is not that always aligned to word boundary because the argument is defined as <tt>BYTE*</tt>. The unaligned read/write request can occure at <a href="appnote.html#fs1">direct transfer</a>. If the bus architecture, especially DMA controller, does not allow unaligned memory access, it should be solved in this function. There are some workarounds described below to avoid this issue.</p>
|
||||
<ul>
|
||||
<li>Convert word transfer to byte transfer in this function if needed. - Recommended.</li>
|
||||
<li>On the <tt>f_read()</tt> calls, avoid long read request that includes a whole of sector. - Any direct transfer never occures.</li>
|
||||
<li>On the <tt>f_read(fp, data, btw, bw)</tt> calls, make sure that <tt>(((UINT)data & 3) == (f_tell(fp) & 3))</tt> is true. - Word alignment of <tt class="arg">buff</tt> is guaranteed.</li>
|
||||
</ul>
|
||||
<p>Generally, a multiple sector read request must not be split into single sector transactions to the storage device, or read throughput gets worse.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,48 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/dstat.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - disk_status</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>disk_status</h2>
|
||||
<p>The disk_status function is called to inquire the current drive status.</p>
|
||||
<pre>
|
||||
DSTATUS disk_status (
|
||||
BYTE <span class="arg">pdrv</span> <span class="c">/* [IN] Physical drive number */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>pdrv</dt>
|
||||
<dd>Physical drive number to identify the target device. Always zero at single drive system.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>The current drive status is returned in combination of status flags described below. FatFs refers only <tt>STA_NOINIT</tt> and <tt>STA_PROTECT</tt>.</p>
|
||||
<dl class="ret">
|
||||
<dt>STA_NOINIT</dt>
|
||||
<dd>Indicates that the device has not been initialized and not ready to work. This flag is set on system reset, media removal or failure of <tt>disk_initialize</tt> function. It is cleared on <tt>disk_initialize</tt> function succeeded. Any media change that occurs asynchronously must be captured and reflect it to the status flags, or auto-mount function will not work correctly. If the system does not support media change detection, application program needs to explicitly re-mount the volume with <tt>f_mount</tt> function after each media change.</dd>
|
||||
<dt>STA_NODISK</dt>
|
||||
<dd>Indicates that no medium in the drive. This is always cleared at fixed disk drive. Note that FatFs does not refer this flag.</dd>
|
||||
<dt>STA_PROTECT</dt>
|
||||
<dd>Indicates that the medium is write protected. This is always cleared at the drives without write protect function. Not valid if no medium in the drive.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,76 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/dwrite.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - disk_write</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>disk_write</h2>
|
||||
<p>The disk_write function is called to write data to the sector(s) of storage device.</p>
|
||||
<pre>
|
||||
DRESULT disk_write (
|
||||
BYTE <span class="arg">drv</span>, <span class="c">/* [IN] Physical drive number */</span>
|
||||
const BYTE* <span class="arg">buff</span>, <span class="c">/* [IN] Pointer to the data to be written */</span>
|
||||
DWORD <span class="arg">sector</span>, <span class="c">/* [IN] Sector number to write from */</span>
|
||||
UINT <span class="arg">count</span> <span class="c">/* [IN] Number of sectors to write */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>pdrv</dt>
|
||||
<dd>Physical drive number to identify the target device.</dd>
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to the first item of the <em>byte array</em> to be written. The size of data to be written is sector size * <tt class="arg">count</tt> bytes.</dd>
|
||||
<dt>sector</dt>
|
||||
<dd>Start sector number in 32-bit LBA.</dd>
|
||||
<dt>count</dt>
|
||||
<dd>Number of sectors to write.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<dl class="ret">
|
||||
<dt>RES_OK (0)</dt>
|
||||
<dd>The function succeeded.</dd>
|
||||
<dt>RES_ERROR</dt>
|
||||
<dd>A hard error occured during the write operation and could not recover it.</dd>
|
||||
<dt>RES_WRPRT</dt>
|
||||
<dd>The medium is write protected.</dd>
|
||||
<dt>RES_PARERR</dt>
|
||||
<dd>Invalid parameter.</dd>
|
||||
<dt>RES_NOTRDY</dt>
|
||||
<dd>The device has not been initialized.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The specified memory address is not that always aligned to word boundary because the argument is defined as <tt>BYTE*</tt>. For more information, refer to the description of <a href="dread.html"><tt>disk_read</tt></a> function.</p>
|
||||
<p>Generally, a multiple sector transfer request must not be split into single sector transactions to the storage device, or the write throughput will be drastically decreased.</p>
|
||||
<p>FatFs expects delayed write function of the disk control layer. The write operation to the media does not need to be completed at return from this function by what write operation is in progress or data is only stored into the write-back cache. But write data on the <tt class="arg">buff</tt> is invalid after return from this function. The write completion request is done by <tt>CTRL_SYNC</tt> command of <tt><a href="dioctl.html">disk_ioctl</a></tt> function. Therefore, if a delayed write function is implemented, the write throughput of the filesystem will be improved.</p>
|
||||
<p><em>Remarks: Application program MUST NOT call this function, or FAT structure on the volume can be collapsed.</em></p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This function is not needed when <tt>FF_FS_READONLY == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,62 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/eof.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_eof</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_eof</h2>
|
||||
<p>The f_eof function tests for end-of-file on a file.</p>
|
||||
<pre>
|
||||
int f_eof (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>The <tt>f_eof</tt> function returns a non-zero value if the read/write pointer has reached end of the file; otherwise it returns a zero.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>In this revision, this function is implemented as a macro. It does not have any validation and mutual exclusion.</p>
|
||||
<pre>
|
||||
<span class="k">#define</span> f_eof(fp) ((int)((fp)->fptr == (fp)->fsize))
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="lseek.html">f_lseek</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,62 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/error.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_error</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_error</h2>
|
||||
<p>The f_error tests for an error on a file.</p>
|
||||
<pre>
|
||||
int f_error (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>Returns a non-zero value if a hard error has occured; otherwise it returns a zero.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>In this revision, this function is implemented as a macro. It does not have any validation and mutual exclusion.</p>
|
||||
<pre>
|
||||
<span class="k">#define</span> f_error(fp) ((fp)->err)
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,117 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/lseek.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_expand</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_expand</h2>
|
||||
<p>The f_expand function prepares or allocates a contiguous data area to the file.</p>
|
||||
|
||||
<pre>
|
||||
FRESULT f_expand (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [IN] File object */</span>
|
||||
FSIZE_t <span class="arg">fsz</span>, <span class="c">/* [IN] File size expanded to */</span>
|
||||
BYTE <span class="arg">opt</span> <span class="c">/* [IN] Operation mode */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object.</dd>
|
||||
<dt>fsz</dt>
|
||||
<dd>Number of bytes in size to prepare or allocate for the file. The data type <tt>FSIZE_t</tt> is an alias of either <tt>DWORD</tt>(32-bit) or <tt>QWORD</tt>(64-bit) depends on the configuration option <tt>FF_FS_EXFAT</tt>.</dd>
|
||||
<dt>opt</dt>
|
||||
<dd>Operation mode. Prepare only (0) or Allocate now (1).</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_expand</tt> function prepares or allocates a contiguous data area to the file. When <tt class="arg">opt</tt> is 1, the function allocates a contiguous data area to the file. Unlike expansion of file by <tt>f_lseek</tt> function, the file must be truncated prior to use this function and read/write pointer of the file stays at top of the file after the function. The file content allocated with this function is <em>undefined</em> because no data is written to the file in this process. The function can fail with <tt>FR_DENIED</tt> due to some reasons below.</p>
|
||||
<ul>
|
||||
<li>No free contiguous space was found.</li>
|
||||
<li>Size of the file was not zero.</li>
|
||||
<li>The file has been opened in read-only mode.</li>
|
||||
<li>Not allowable file size. (>= 4GiB on FAT volume)</li>
|
||||
</ul>
|
||||
<p>When <tt class="arg">opt</tt> is 0, the function finds a contiguous data area and set it as suggested point for next allocation instead of allocating it to the file. The next cluster allocation is started at top of the contiguous area found by this function. Thus the write file is guaranteed be contiguous and no allocation delay until the size reaches that size at least unless any other changes to the volume is performed.</p>
|
||||
<p>The contiguous file would have an advantage at time-critical read/write operations. It eliminates some overheads in the filesystem and the storage media caused by random access due to fragmented file data. Especially FAT access for the contiguous file on the exFAT volume is completely eliminated and storage media will be accessed sequentially.</p>
|
||||
<p>Also the contiguous file can be easily accessed directly via low-level disk functions. But this is not recommended in consideration for future compatibility.</p>
|
||||
</div>
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_USE_EXPAND == 1</tt> and <tt>FF_FS_READONLY == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Creating a contiguous file */</span>
|
||||
|
||||
<span class="c">/* Create a new file */</span>
|
||||
res = f_open(fp = malloc(sizeof (FIL)), "file.dat", FA_WRITE|FA_CREATE_ALWAYS);
|
||||
if (res) { <span class="c">/* Check if the file has been opened */</span>
|
||||
free(fp);
|
||||
die("Failed to open the file.");
|
||||
}
|
||||
|
||||
<span class="c">/* Alloacte a 100 MiB of contiguous area to the file */</span>
|
||||
res = <em>f_expand</em>(fp, 104857600, 1);
|
||||
if (res) { <span class="c">/* Check if the file has been expanded */</span>
|
||||
f_close(fp);
|
||||
free(fp);
|
||||
die("Failed to allocate contiguous area.");
|
||||
}
|
||||
|
||||
<span class="c">/* Now you have a contiguous file accessible with fp */</span>
|
||||
|
||||
</pre>
|
||||
<pre>
|
||||
<span class="c">/* Accessing the contiguous file via low-level disk functions */</span>
|
||||
|
||||
<span class="c">/* Get physical location of the file data */</span>
|
||||
drv = fp->obj.fs->pdrv;
|
||||
lba = fp->obj.fs->database + fp->obj.fs->csize * (fp->obj.sclust - 2);
|
||||
|
||||
<span class="c">/* Write 2048 sectors from top of the file at a time */</span>
|
||||
res = disk_write(drv, buffer, lba, 2048);
|
||||
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="lseek.html">f_lseek</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,57 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/fattime.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - get_fattime</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>get_fattime</h2>
|
||||
<p>The get_fattime function is called to get the current time.</p>
|
||||
<pre>
|
||||
DWORD get_fattime (void);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Value</h4>
|
||||
<p>Currnet local time shall be returned as bit-fields packed into a <tt>DWORD</tt> value. The bit fields are as follows:</p>
|
||||
<dl class="ret">
|
||||
<dt>bit31:25</dt>
|
||||
<dd>Year origin from the 1980 (0..127, e.g. 37 for 2017)</dd>
|
||||
<dt>bit24:21</dt>
|
||||
<dd>Month (1..12)</dd>
|
||||
<dt>bit20:16</dt>
|
||||
<dd>Day of the month(1..31)</dd>
|
||||
<dt>bit15:11</dt>
|
||||
<dd>Hour (0..23)</dd>
|
||||
<dt>bit10:5</dt>
|
||||
<dd>Minute (0..59)</dd>
|
||||
<dt>bit4:0</dt>
|
||||
<dd>Second / 2 (0..29, e.g. 25 for 50)</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>get_fattime</tt> function shall return any valid time even if the system does not support a real time clock. If a zero is returned, the file will not have a valid timestamp.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This function is not needed when <tt>FF_FS_READONLY == 1</tt> or <tt>FF_FS_NORTC == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,91 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/fdisk.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_fdisk</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_fdisk</h2>
|
||||
<p>The f_fdisk fucntion divides a physical drive.</p>
|
||||
<pre>
|
||||
FRESULT f_fdisk (
|
||||
BYTE <span class="arg">pdrv</span>, <span class="c">/* [IN] Physical drive number */</span>
|
||||
const DWORD* <span class="arg">szt</span>, <span class="c">/* [IN] Partition map table */</span>
|
||||
void* <span class="arg">work</span> <span class="c">/* [IN] Work area */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>pdrv</dt>
|
||||
<dd>Specifies the <em>physical drive</em> to be divided. This is not the logical drive number but the drive identifier passed to the low level disk functions.</dd>
|
||||
<dt>szt</dt>
|
||||
<dd>Pointer to the first item of the partition map table.</dd>
|
||||
<dt>work</dt>
|
||||
<dd>Pointer to the function work area. The size must be at least <tt>FF_MAX_SS</tt> bytes.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#ip">FR_INVALID_PARAMETER</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_fdisk</tt> function creates partitions on the physical drive. The partitioning format is in generic FDISK format, so that it can create upto four primary partitions. Logical volumes in the extended partition is not supported. The partition map table with four items specifies how to divide the physical drive. The first item specifies the size of first primary partition and fourth item specifies the fourth primary partition. If the value is less than or equal to 100, it specifies the partition size in percentage of the entire drive space. If it is larger than 100, it specifies the partition size in unit of sector. The partitions are located on the drive in order of from first item.</p>
|
||||
</div>
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READOLNY == 0</tt>, <tt>FF_USE_MKFS == 1</tt> and <tt>FF_MULTI_PARTITION == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Volume management table defined by user (required when FF_MULTI_PARTITION == 1) */</span>
|
||||
|
||||
PARTITION VolToPart[] = {
|
||||
{0, 1}, <span class="c">/* "0:" ==> Physical drive 0, 1st partition */</span>
|
||||
{0, 2}, <span class="c">/* "1:" ==> Physical drive 0, 2nd partition */</span>
|
||||
{1, 0} <span class="c">/* "2:" ==> Physical drive 1, auto detection */</span>
|
||||
};
|
||||
</pre>
|
||||
<pre>
|
||||
<span class="c">/* Initialize a brand-new disk drive mapped to physical drive 0 */</span>
|
||||
|
||||
DWORD plist[] = {50, 50, 0, 0}; <span class="c">/* Divide drive into two partitions */</span>
|
||||
BYTE work[FF_MAX_SS];
|
||||
|
||||
<em>f_fdisk</em>(0, plist, work); <span class="c">/* Divide physical drive 0 */</span>
|
||||
|
||||
f_mkfs("0:", FM_ANY, work, sizeof work); <span class="c">/* Create FAT volume on the logical drive 0 */</span>
|
||||
f_mkfs("1:", FM_ANY, work, sizeof work); <span class="c">/* Create FAT volume on the logical drive 1 */</span>
|
||||
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><a href="filename.html#vol">Volume management</a>, <a href="mkfs.html"><tt>f_mkfs</tt></a></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,85 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/filename.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - Path Names</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
<h1>Path Names on the FatFs</h1>
|
||||
|
||||
<div class="para doc" id="nam">
|
||||
<h3>Format of the path names</h3>
|
||||
<p>The format of path name on the FatFs module is similer to the filename specs of DOS/Windos as follows:</p>
|
||||
<pre>[<em>drive#</em>:][/]<em>directory</em>/<em>file</em></pre>
|
||||
<p>The FatFs module supports long file name (LFN) and 8.3 format file name (SFN). The LFN can be used when (<tt><a href="config.html#use_lfn">FF_USE_LFN</a> != 0</tt>). The sub directories are separated with a \ or / in the same way as DOS/Windows API. Duplicated separators are skipped and ignored. Only a difference is that the logical drive is specified in a numeral with a colon. When drive prefix is omitted, the drive number is assumed as <em>default drive</em> (drive 0 or current drive).</p>
|
||||
<p>Control characters (<tt>'\0'</tt> to <tt>'\x1F'</tt>) are recognized as end of the path name. Leading/embedded spaces in the path name are valid as a part of the name at LFN configuration but the space is recognized as end of the path name at non-LFN configuration. Trailing spaces and dots are ignored at both configurations.</p>
|
||||
<p>In default configuration (<tt><a href="config.html#fs_rpath">FF_FS_RPATH</a> == 0</tt>), it does not have a concept of current directory like OS oriented filesystem. Every object on the volume is always specified in full path name that followed from the root directory. Dot directory names (<tt>".", ".."</tt>) are not allowed. Heading separator is ignored and it can be exist or omitted. The default drive is fixed to drive 0.</p>
|
||||
<p>When relative path is enabled (<tt>FF_FS_RPATH >= 1</tt>), specified path is followed from the root directory if a heading separator is exist. If not, it is followed from the current directory of the drive set by <a href="chdir.html"><tt>f_chdir</tt></a> function. Dot names are also allowed for the path names. The default drive is the current drive set by <a href="chdrive.html"><tt>f_chdrive</tt></a> function.</p>
|
||||
<table class="lst2">
|
||||
<tr><td>Path name</td><td>FF_FS_RPATH == 0</td><td>FF_FS_RPATH >= 1</td></tr>
|
||||
<tr class="lst3"><td>file.txt</td><td>A file in the root directory of the drive 0</td><td>A file in the current directory of the current drive</td></tr>
|
||||
<tr><td>/file.txt</td><td>A file in the root directory of the drive 0</td><td>A file in the root directory of the current drive</td></tr>
|
||||
<tr><td></td><td>The root directory of the drive 0</td><td>The current directory of the current drive</td></tr>
|
||||
<tr><td>/</td><td>The root directory of the drive 0</td><td>The root directory of the current drive</td></tr>
|
||||
<tr><td>2:</td><td>The root directory of the drive 2</td><td>The current directory of the drive 2</td></tr>
|
||||
<tr><td>2:/</td><td>The root directory of the drive 2</td><td>The root directory of the drive 2</td></tr>
|
||||
<tr><td>2:file.txt</td><td>A file in the root directory of the drive 2</td><td>A file in the current directory of the drive 2</td></tr>
|
||||
<tr><td>../file.txt</td><td>Invalid name</td><td>A file in the parent directory</td></tr>
|
||||
<tr><td>.</td><td>Invalid name</td><td>This directory</td></tr>
|
||||
<tr><td>..</td><td>Invalid name</td><td>Parent directory of the current directory (*)</td></tr>
|
||||
<tr><td>dir1/..</td><td>Invalid name</td><td>The current directory</td></tr>
|
||||
<tr><td>/..</td><td>Invalid name</td><td>The root directory (sticks the top level)</td></tr>
|
||||
</table>
|
||||
<p>When option <tt><a href="config.html#str_volume_id">FF_STR_VOLUME_ID</a></tt> is specified, also pre-defined arbitrary keyword instead of a numeral can be used as drive prefix. e.g. <tt>"sdcard:file1.txt"</tt>, <tt>"ram:swapfile.dat"</tt> and DOS/Windows style drive letter, of course.</p>
|
||||
<p><em>Remark: In this revision, double dot name <tt>".."</tt> cannot follow the parent directory on the exFAT volume. It will work as <tt>"."</tt> and stay there.</em></p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="case">
|
||||
<h3>Legal Characters and Case Sensitivity</h3>
|
||||
<p>On the FAT filesystem, legal characters for object name (file/directory name) are, <tt>0-9 A-Z ! # $ % & ' ( ) - @ ^ _ ` { } ~</tt> and extended characters (<tt>\x80</tt>-<tt>\xFF</tt>). Under LFN supported system, also <tt>+ , ; = [ ]</tt> and space are legal for the object name and the white spaces and periods can be placed anywhere in the path name except for end of the object name.</p>
|
||||
<p>FAT filesystem is case-insensitive to the object names on the volume. All object names are compared in case-insensitive. For example, these three names, <tt>file.txt</tt>, <tt>File.Txt</tt> and <tt>FILE.TXT</tt>, are identical. This is applied to also extended charactres. When an object is created on the FAT volume, upper converted name is recorded to the SFN entry, and the raw name is recorded to the LFN entry.</p>
|
||||
<p>As for the DBCS language MS-DOS, it was case-sensitive to the extended characters. To follow this specification, FatFs works with case-sensitive to the extended characters at only non-LFN with DBCS configuration (DOS/DBCS specs). But at LFN configuration, FatFs works with case-insensitive to all characters (WindowsNT specs). This can cause a problem on compatibility with Windows system when an object with extended characters is created on the volume at non-LFN and DBCS configuration; therfore the object names with DBCS extended characters should not be used on the FAT volume shared by those systems.</p>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="uni">
|
||||
<h3>Unicode API</h3>
|
||||
<p>The path names are input/output in either ANSI/OEM code or Unicode depends on the configuration options. The type of arguments which specify the path names are defined as <tt>TCHAR</tt>. It is an alias of <tt>char</tt> by default. The code set used to the path name string is ANSI/OEM specifid by <tt><a href="config.html#code_page">FF_CODE_PAGE</a></tt>. When <tt><a href="config.html#lfn_unicode">FF_LFN_UNICODE</a></tt> is set to 1, the type of the <tt>TCHAR</tt> is switched to <tt>WCHAR</tt> to support Unicode (UTF-16 encoding). In this case, the full-featured LFN specification is supported and the Unicode specific characters, such as ✝☪✡☸☭, can also be used for the path name. It also affects data types and encoding of the string I/O functions. To define literal strings, <tt>_T(s)</tt> and <tt>_TEXT(s)</tt> macro are available to select either ANSI/OEM or Unicode automatically. The code shown below is an example to define the literal strings.</p>
|
||||
<pre>
|
||||
f_open(fp, "filename.txt", FA_READ); <span class="c">/* ANSI/OEM string */</span>
|
||||
f_open(fp, L"filename.txt", FA_READ); <span class="c">/* Unicode string */</span>
|
||||
f_open(fp, _T("filename.txt"), FA_READ); <span class="c">/* Changed by configuration */</span>
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para doc" id="vol">
|
||||
<h3>Volume Management</h3>
|
||||
<p>FatFs module needs dynamic work area, <em>filesystem object</em>, for each volume (logical drive). It is registered/unregistered to the FatFs module by <tt>f_mount</tt> function. By default, each logical drive is bound to the physical drive with the same drive number and an FAT volume on the drive is serched by the volume mount process. It reads boot sectors and checks it if it is an FAT boot sector in order of sector 0 as SFD format, 1st partition, 2nd partition, 3rd partition and 4th partition as FDISK format.</p>
|
||||
<p>When <tt><a href="config.html#multi_partition">FF_MULTI_PARTITION</a> == 1</tt> is specified by configuration option, each individual logical drive is bound to the partition on the physical drive specified by volume management table. The volume management table needs to be defined by user to resolve the mappings of logical drives and partitions. Following code is an example of a volume management table.</p>
|
||||
<pre>
|
||||
Example: 0:-2: are tied to three pri-partitions on the physical drive 0 (fixed drive)
|
||||
3: is tied to an FAT volume on the physical drive 1 (removable drive)
|
||||
|
||||
PARTITION VolToPart[FF_VOLUMES] = {
|
||||
{0, 1}, <span class="c">/* "0:" ==> Physical drive 0, 1st partition */</span>
|
||||
{0, 2}, <span class="c">/* "1:" ==> Physical drive 0, 2nd partition */</span>
|
||||
{0, 3}, <span class="c">/* "2:" ==> Physical drive 0, 3rd partition */</span>
|
||||
{1, 0} <span class="c">/* "3:" ==> Physical drive 1, auto detection */</span>
|
||||
};
|
||||
</pre>
|
||||
<div><img src="../res/f7.png" width="900" height="288" alt="relationship between logical drive and physical drive"></div>
|
||||
<p>There are some considerations on using multi-partition configuration.</p>
|
||||
<ul>
|
||||
<li>The physical drive that has two or more mounted partitions must be non-removable. Media change while a system operation is prohibited.</li>
|
||||
<li>Only four primary partitions can be specified. Extended partition is not supported.</li>
|
||||
<li>Windows does not support multiple volumes on the removable storage. Only first parition will be recognized.</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,111 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/findfirst.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_findfirst</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_findfirst</h2>
|
||||
<p>The f_findfirst function searches a directroy for an item.</p>
|
||||
<pre>
|
||||
FRESULT f_findfirst (
|
||||
DIR* <span class="arg">dp</span>, <span class="c">/* [OUT] Poninter to the directory object */</span>
|
||||
FILINFO* <span class="arg">fno</span>, <span class="c">/* [OUT] Pointer to the file information structure */</span>
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Pointer to the directory name to be opened */</span>
|
||||
const TCHAR* <span class="arg">pattern</span> <span class="c">/* [IN] Pointer to the matching pattern string */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>dp</dt>
|
||||
<dd>Pointer to the blank directory object.</dd>
|
||||
<dt>fno</dt>
|
||||
<dd>Pointer to the file information structure to store the information about the found item.</dd>
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">directory name</a> to be opened.</dd>
|
||||
<dt>pattern</dt>
|
||||
<dd>Pointer to the nul-terminated string that specifies the name matching pattern to be searched for. It is referred by also subsequent <tt>f_findnext</tt> function, so that the string must be valid while the successive function calls.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>,
|
||||
<a href="rc.html#tf">FR_TOO_MANY_OPEN_FILES</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>After the directory specified by <tt class="arg">path</tt> could be opened, it starts to search the directory for items with the name specified by <tt class="arg">pattern</tt>. If the first item is found, the information about the object is stored into the file information structure. For more information about file information structure, refer to <a href="readdir.html"><tt>f_readdir</tt></a> function.</p>
|
||||
<p>The matching pattern can contain wildcard characters (<tt>?</tt> and <tt>*</tt>). A <tt>?</tt> matches an any character and an <tt>*</tt> matches an any string in length of zero or longer. When support of long file name is enabled, only <tt>fname[]</tt> is tested at <tt>FF_USE_FIND == 1</tt> and also <tt>altname[]</tt> is tested at <tt>FF_USE_FIND == 2</tt>. In this revision, there are some differences listed below between FatFs and standard systems in matching condition.</p>
|
||||
<ul>
|
||||
<li><tt>"*.*"</tt> never matches any name without extension while it matches any name with or without extension at the standard systems.</li>
|
||||
<li>Any pattern terminated with a period never matches any name while it matches any name without extensiton at the standard systems.</li>
|
||||
<li><a href="filename.html#case">DBCS extended characters</a> are compared in case-sensitive at LFN with non-Unicode configuration.</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This is a wrapper function of <a href="opendir.html"><tt>f_opendir</tt></a> and <a href="readdir.html"><tt>f_readdir</tt></a> function. Available when <tt>FF_USE_FIND >= 1</tt> and <tt>FF_FS_MINIMIZE <= 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Examples</h4>
|
||||
<pre>
|
||||
<span class="c">/* Search a directory for objects and display it */</span>
|
||||
|
||||
void find_image_file (void)
|
||||
{
|
||||
FRESULT fr; <span class="c">/* Return value */</span>
|
||||
DIR dj; <span class="c">/* Directory search object */</span>
|
||||
FILINFO fno; <span class="c">/* File information */</span>
|
||||
|
||||
fr = <em>f_findfirst</em>(&dj, &fno, "", "dsc*.jpg"); <span class="c">/* Start to search for photo files */</span>
|
||||
|
||||
while (fr == FR_OK && fno.fname[0]) { <span class="c">/* Repeat while an item is found */</span>
|
||||
printf("%s\n", fno.fname); <span class="c">/* Display the object name */</span>
|
||||
fr = f_findnext(&dj, &fno); <span class="c">/* Search for next item */</span>
|
||||
}
|
||||
|
||||
f_closedir(&dj);
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="findnext.html">f_findnext</a>, <a href="closedir.html">f_closedir</a>, <a href="sdir.html">DIR</a>, <a href="sfileinfo.html">FILINFO</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,69 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/findnext.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_findnext</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_findnext</h2>
|
||||
<p>The f_findnext function searches for a next matched object</p>
|
||||
<pre>
|
||||
FRESULT f_findnext (
|
||||
DIR* <span class="arg">dp</span>, <span class="c">/* [IN] Poninter to the directory object */</span>
|
||||
FILINFO* <span class="arg">fno</span> <span class="c">/* [OUT] Pointer to the file information structure */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>dp</dt>
|
||||
<dd>Pointer to the valid directory object created by <tt>f_findfirst</tt> function.</dd>
|
||||
<dt>fno</dt>
|
||||
<dd>Pointer to the file information structure to store the information about the found directory item.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>It continues the search from a previous call to the <tt>f_findfirst</tt> or <tt>f_findnext</tt> function. If found, the information about the object is stored into the file information structure. If no item to be read, a null string will be returned into <tt>fno->fname[]</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This is a wrapper function of <a href="readdir.html"><tt>f_readdir</tt></a> function. Available when <tt>FF_USE_FIND == 1</tt> and <tt>FF_FS_MINIMIZE <= 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="findfirst.html">f_findfirst</a>, <a href="closedir.html">f_closedir</a>, <a href="sdir.html">DIR</a>, <a href="sfileinfo.html">FILINFO</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,139 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/forward.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_forward</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_forward</h2>
|
||||
<p>The f_forward function reads the file data and forward it to the data streaming device.</p>
|
||||
<pre>
|
||||
FRESULT f_forward (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [IN] File object */</span>
|
||||
UINT (*<span class="arg">func</span>)(const BYTE*,UINT), <span class="c">/* [IN] Data streaming function */</span>
|
||||
UINT <span class="arg">btf</span>, <span class="c">/* [IN] Number of bytes to forward */</span>
|
||||
UINT* <span class="arg">bf</span> <span class="c">/* [OUT] Number of bytes forwarded */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object.</dd>
|
||||
<dt>func</dt>
|
||||
<dd>Pointer to the user-defined data streaming function. For details, refer to the sample code.</dd>
|
||||
<dt>btf</dt>
|
||||
<dd>Number of bytes to forward in range of <tt>UINT</tt>.</dd>
|
||||
<dt>bf</dt>
|
||||
<dd>Pointer to the <tt>UINT</tt> variable to return number of bytes forwarded.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_forward</tt> function reads the data from the file and forward it to the outgoing stream without data buffer. This is suitable for small memory system because it does not require any data buffer at application module. The file pointer of the file object increases in number of bytes forwarded. In case of <tt class="arg">*bf</tt> is less than <tt class="arg">btf</tt> without error, it means the requested bytes could not be transferred due to end of file or stream goes busy during data transfer.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_USE_FORWARD == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example (Audio playback)</h4>
|
||||
<pre>
|
||||
<span class="c">/*------------------------------------------------------------------------*/</span>
|
||||
<span class="c">/* Sample code of data transfer function to be called back from f_forward */</span>
|
||||
<span class="c">/*------------------------------------------------------------------------*/</span>
|
||||
|
||||
UINT out_stream ( <span class="c">/* Returns number of bytes sent or stream status */</span>
|
||||
const BYTE *p, <span class="c">/* Pointer to the data block to be sent */</span>
|
||||
UINT btf <span class="c">/* >0: Transfer call (Number of bytes to be sent). 0: Sense call */</span>
|
||||
)
|
||||
{
|
||||
UINT cnt = 0;
|
||||
|
||||
|
||||
if (btf == 0) { <span class="c">/* Sense call */</span>
|
||||
<span class="c">/* Return stream status (0: Busy, 1: Ready) */</span>
|
||||
<span class="c">/* When once it returned ready to sense call, it must accept a byte at least */</span>
|
||||
<span class="c">/* at subsequent transfer call, or f_forward will fail with FR_INT_ERR. */</span>
|
||||
if (FIFO_READY) cnt = 1;
|
||||
}
|
||||
else { <span class="c">/* Transfer call */</span>
|
||||
do { <span class="c">/* Repeat while there is any data to be sent and the stream is ready */</span>
|
||||
FIFO_PORT = *p++;
|
||||
cnt++;
|
||||
} while (cnt < btf && FIFO_READY);
|
||||
}
|
||||
|
||||
return cnt;
|
||||
}
|
||||
|
||||
|
||||
<span class="c">/*------------------------------------------------------------------------*/</span>
|
||||
<span class="c">/* Sample code using f_forward function */</span>
|
||||
<span class="c">/*------------------------------------------------------------------------*/</span>
|
||||
|
||||
FRESULT play_file (
|
||||
char *fn <span class="c">/* Pointer to the audio file name to be played */</span>
|
||||
)
|
||||
{
|
||||
FRESULT rc;
|
||||
FIL fil;
|
||||
UINT dmy;
|
||||
|
||||
<span class="c">/* Open the audio file in read only mode */</span>
|
||||
rc = f_open(&fil, fn, FA_READ);
|
||||
if (rc) return rc;
|
||||
|
||||
<span class="c">/* Repeat until the file pointer reaches end of the file */</span>
|
||||
while (rc == FR_OK && !f_eof(&fil)) {
|
||||
|
||||
<span class="c">/* some processes... */</span>
|
||||
|
||||
<span class="c">/* Fill output stream periodicaly or on-demand */</span>
|
||||
rc = <em>f_forward</em>(&fil, out_stream, 1000, &dmy);
|
||||
}
|
||||
|
||||
<span class="c">/* Close the file and return */</span>
|
||||
f_close(&fil);
|
||||
return rc;
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="gets.html">fgets</a>, <a href="write.html">f_write</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,82 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/getcwd.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_getcwd</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_getcwd</h2>
|
||||
<p>The f_getcwd function retrieves the current directory of the current drive.</p>
|
||||
<pre>
|
||||
FRESULT f_getcwd (
|
||||
TCHAR* <span class="arg">buff</span>, <span class="c">/* [OUT] Buffer to return path name */</span>
|
||||
UINT <span class="arg">len</span> <span class="c">/* [IN] The length of the buffer */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to the buffer to receive the current directory string.</dd>
|
||||
<dt>len</dt>
|
||||
<dd>Size of the buffer in unit of <tt>TCHAR</tt>.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_getcwd</tt> function retrieves full path name of the current directory of the current drive. When <tt>FF_VOLUMES</tt> is larger than 1, a logical drive number is added to top of the path name.</p>
|
||||
<p><em>Note: In this revision, this function cannot retrieve the current directory path on the exFAT volume. It always returns the root directory path.</em></p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_RPATH == 2</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
TCHAR str[256];
|
||||
|
||||
fr = <em>f_getcwd</em>(str, sizeof str / sizeof *str); <span class="c">/* Get current directory path */</span>
|
||||
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="chdrive.html">f_chdrive</a>, <a href="chdir.html">f_chdir</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,95 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/getfree.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_getfree</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_getfree</h2>
|
||||
<p>The f_getfree function gets number of the free clusters on the volume.</p>
|
||||
<pre>
|
||||
FRESULT f_getfree (
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Logical drive number */</span>
|
||||
DWORD* <span class="arg">nclst</span>, <span class="c">/* [OUT] Number of free clusters */</span>
|
||||
FATFS** <span class="arg">fatfs</span> <span class="c">/* [OUT] Corresponding filesystem object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">logical drive</a>. A null-string means the default drive.</dd>
|
||||
<dt>nclst</dt>
|
||||
<dd>Pointer to the <tt>DWORD</tt> variable to store number of free clusters.</dd>
|
||||
<dt>fatfs</dt>
|
||||
<dd>Pointer to pointer that to store a pointer to the corresponding file system object.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Descriptions</h4>
|
||||
<p>The <tt>f_getfree</tt> function gets number of free clusters on the volume. The member <tt>csize</tt> in the file system object indicates number of sectors per cluster, so that the free space in unit of sector can be calcurated with this information. When FSINFO structure on the FAT32 volume is not in sync, this function can return an incorrect free cluster count. To avoid this problem, FatFs can be forced full FAT scan by <tt><a href="config.html#fs_nofsinfo">FF_FS_NOFSINFO</a></tt> option.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_FS_MINIMIZE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
FATFS *fs;
|
||||
DWORD fre_clust, fre_sect, tot_sect;
|
||||
|
||||
|
||||
<span class="c">/* Get volume information and free clusters of drive 1 */</span>
|
||||
res = <em>f_getfree</em>("1:", &fre_clust, &fs);
|
||||
if (res) die(res);
|
||||
|
||||
<span class="c">/* Get total sectors and free sectors */</span>
|
||||
tot_sect = (fs->n_fatent - 2) * fs->csize;
|
||||
fre_sect = fre_clust * fs->csize;
|
||||
|
||||
<span class="c">/* Print the free space (assuming 512 bytes/sector) */</span>
|
||||
printf("%10lu KiB total drive space.\n%10lu KiB available.\n",
|
||||
tot_sect / 2, fre_sect / 2);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="sfatfs.html">FATFS</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,82 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/getlabel.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_getlabel</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_getlabel</h2>
|
||||
<p>The f_getlabel function returns volume label and volume serial number of a drive.</p>
|
||||
<pre>
|
||||
FRESULT f_getlabel (
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Drive number */</span>
|
||||
TCHAR* <span class="arg">label</span>, <span class="c">/* [OUT] Volume label */</span>
|
||||
DWORD* <span class="arg">vsn</span> <span class="c">/* [OUT] Volume serial number */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">logical drive</a>. Null-string specifies the default drive.</dd>
|
||||
<dt>label</dt>
|
||||
<dd>Pointer to the buffer to store the volume label. The buffer size must be at least 24 items at <tt>FF_LFN_UNICODE == 0</tt> or 12 items at <tt>FF_LFN_UNICODE == 1</tt>. If the volume has no label, a null-string will be returned. Set null pointer if this information is not needed.</dd>
|
||||
<dt>vsn</dt>
|
||||
<dd>Pointer to the <tt>DWORD</tt> variable to store the volume serial number. Set null pointer if this information is not needed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_USE_LABEL == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
char str[24];
|
||||
|
||||
<span class="c">/* Get volume label of the default drive */</span>
|
||||
<em>f_getlabel</em>("", str, 0);
|
||||
|
||||
<span class="c">/* Get volume label of the drive 2 */</span>
|
||||
<em>f_getlabel</em>("2:", str, 0);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<tt><a href="setlabel.html">f_setlabel</a></tt>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,65 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/gets.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_gets</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_gets</h2>
|
||||
<p>The f_gets reads a string from the file.</p>
|
||||
<pre>
|
||||
TCHAR* f_gets (
|
||||
TCHAR* <span class="arg">buff</span>, <span class="c">/* [OUT] Read buffer */</span>
|
||||
int <span class="arg">len</span>, <span class="c">/* [IN] Size of the read buffer */</span>
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to read buffer to store the read string.</dd>
|
||||
<dt>len</dt>
|
||||
<dd>Size of the read buffer in unit of character.</dd>
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>When the function succeeded, <tt class="arg">buff</tt> will be returuned.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The read operation continues until a <tt>'\n'</tt> is stored, reached end of the file or the buffer is filled with <tt>len - 1</tt> characters. The read string is terminated with a <tt>'\0'</tt>. When no character to read or any error occured during read operation, it returns a null pointer. The status of EOF and error can be examined with <tt>f_eof</tt> and <tt>f_error</tt> function.</p>
|
||||
<p>When FatFs is configured to Unicode API (<tt>FF_LFN_UNICODE == 1</tt>), data types on the srting fuctions, <tt>f_putc</tt>, <tt>f_puts</tt>, <tt>f_printf</tt> and <tt>f_gets</tt>, is also switched to Unicode. The character encoding on the file to be read/written via those functions is assumed depends on <a href="config.html#strf_encode"><tt>FF_STRF_ENCODE</tt></a>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This is a wrapper function of <a href="read.html"><tt>f_read</tt></a> function. Available when <tt>FF_USE_STRFUNC</tt> is 1 or 2. When it is set to 2, <tt>'\r'</tt>s contained in the file are stripped out.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="read.html">f_read</a>, <a href="putc.html">f_putc</a>, <a href="puts.html">f_puts</a>, <a href="printf.html">f_printf</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,131 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/lseek.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_lseek</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_lseek</h2>
|
||||
<p>The f_lseek function moves the file read/write pointer of an open file object. It can also be used to expand the file size (cluster pre-allocation). </p>
|
||||
|
||||
<pre>
|
||||
FRESULT f_lseek (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [IN] File object */</span>
|
||||
FSIZE_t <span class="arg">ofs</span> <span class="c">/* [IN] File read/write pointer */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object.</dd>
|
||||
<dt>ofs</dt>
|
||||
<dd>Byte offset from top of the file to set read/write pointer. The data type <tt>FSIZE_t</tt> is an alias of either <tt>DWORD</tt>(32-bit) or <tt>QWORD</tt>(64-bit) depends on the configuration option <tt>FF_FS_EXFAT</tt>.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>File read/write ponter in the open file object points the data byte to be read/written at next read/write operation. It advances as the number of bytes read/written. The <tt>f_lseek</tt> function moves the file read/write pointer without any read/write operation to the file.</p>
|
||||
<p>When an offset beyond the file size is specified at write mode, the file size is expanded to the specified offset. The file data in the expanded area is <em>undefined</em> because no data is written to the file in this process. This is suitable to pre-allocate a data area to the file quickly for fast write operation. When a contiguous data area needs to be allocated to the file, use <tt>f_expand</tt> function instead. After the <tt>f_lseek</tt> function succeeded, the current read/write pointer should be checked in order to make sure the read/write pointer has been moved correctry. In case of the read/write pointer is not the expected value, either of followings has been occured.</p>
|
||||
<ul>
|
||||
<li>End of file. The specified <tt class="arg">ofs</tt> was clipped at end of the file because the file has been opened in read-only mode.</li>
|
||||
<li>Disk full. There is no free space on the volume to expand the file.</li>
|
||||
</ul>
|
||||
<p>The fast seek function enables fast backward/long seek operations without FAT access by using an on-memory CLMT (cluster link map table). It is applied to <tt>f_read</tt> and <tt>f_write</tt> function as well, however, the file size cannot be expanded by <tt>f_write</tt>, <tt>f_lseek</tt> function while the file is in fast seek mode.</p>
|
||||
<p>The fast seek function is enabled when the member <tt>cltbl</tt> in the file object is not NULL. The CLMT must be created into the <tt>DWORD</tt> array prior to use the fast seek function. To create the CLMT, set address of the <tt>DWORD</tt> array to the member <tt>cltbl</tt> in the open file object, set the size of array in unit of items to the first item and call the <tt>f_lseek</tt> function with <tt class="arg">ofs</tt><tt> = CREATE_LINKMAP</tt>. After the function succeeded and CLMT is created, no FAT access is occured in subsequent <tt>f_read</tt>, <tt>f_write</tt>, <tt>f_lseek</tt> function to the file. The number of items used or required is returned into the first item of the array. The number of items to be used is (number of the file fragments + 1) * 2. For example, when the file is fragmented in 5, 12 items in the array will be used. If the function failed with <tt>FR_NOT_ENOUGH_CORE</tt>, the given array size is insufficient for the file.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_MINIMIZE <= 2</tt>. To use fast seek function, <tt>FF_USE_FASTSEEK</tt> needs to be set 1.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Open file */</span>
|
||||
fp = malloc(sizeof (FIL));
|
||||
res = f_open(fp, "file.dat", FA_READ|FA_WRITE);
|
||||
if (res) ...
|
||||
|
||||
<span class="c">/* Move to offset of 5000 from top of the file */</span>
|
||||
res = <em>f_lseek</em>(fp, 5000);
|
||||
|
||||
<span class="c">/* Move to end of the file to append data */</span>
|
||||
res = <em>f_lseek</em>(fp, f_size(fp));
|
||||
|
||||
<span class="c">/* Forward 3000 bytes */</span>
|
||||
res = <em>f_lseek</em>(fp, f_tell(fp) + 3000);
|
||||
|
||||
<span class="c">/* Rewind 2000 bytes (take care on wraparound) */</span>
|
||||
res = <em>f_lseek</em>(fp, f_tell(fp) - 2000);
|
||||
</pre>
|
||||
<pre>
|
||||
<span class="c">/* Cluster pre-allocation (to prevent buffer overrun on streaming write) */</span>
|
||||
|
||||
res = f_open(fp, recfile, FA_CREATE_NEW | FA_WRITE); <span class="c">/* Create a file */</span>
|
||||
|
||||
res = <em>f_lseek</em>(fp, PRE_SIZE); <span class="c">/* Expand file size (cluster pre-allocation) */</span>
|
||||
if (res || f_tell(fp) != PRE_SIZE) ... <span class="c">/* Check if the file has been expanded */</span>
|
||||
|
||||
res = <em>f_lseek</em>(fp, DATA_START); <span class="c">/* Record data stream WITHOUT cluster allocation delay */</span>
|
||||
... <span class="c">/* Write operation should be aligned to sector boundary to optimize the write throughput */</span>
|
||||
|
||||
res = f_truncate(fp); <span class="c">/* Truncate unused area */</span>
|
||||
res = <em>f_lseek</em>(fp, 0); <span class="c">/* Put file header */</span>
|
||||
...
|
||||
|
||||
res = f_close(fp);
|
||||
</pre>
|
||||
<pre>
|
||||
<span class="c">/* Using fast seek function */</span>
|
||||
|
||||
DWORD clmt[SZ_TBL]; <span class="c">/* Cluster link map table buffer */</span>
|
||||
|
||||
res = f_open(fp, fname, FA_READ | FA_WRITE); <span class="c">/* Open a file */</span>
|
||||
|
||||
res = <em>f_lseek</em>(fp, ofs1); <span class="c">/* This is normal seek (cltbl is nulled on file open) */</span>
|
||||
|
||||
fp->cltbl = clmt; <span class="c">/* Enable fast seek function (cltbl != NULL) */</span>
|
||||
clmt[0] = SZ_TBL; <span class="c">/* Set table size */</span>
|
||||
res = <em>f_lseek</em>(fp, CREATE_LINKMAP); <span class="c">/* Create CLMT */</span>
|
||||
...
|
||||
|
||||
res = <em>f_lseek</em>(fp, ofs2); <span class="c">/* This is fast seek */</span>
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="truncate.html">f_truncate</a>, <a href="expand.html">f_expand</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,80 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/mkdir.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_mkdir</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_mkdir</h2>
|
||||
<p>The f_mkdir function creates a new directory.</p>
|
||||
<pre>
|
||||
FRESULT f_mkdir (
|
||||
const TCHAR* <span class="arg">path</span> <span class="c">/* [IN] Directory name */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">directory name</a> to create. </dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Value</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#ex">FR_EXIST</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>This function creates a new directory. To remove a directory, use <a href="unlink.html"><tt>f_unlink</tt></a> function.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_FS_MINIMIZE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
res = <em>f_mkdir</em>("sub1");
|
||||
if (res) die(res);
|
||||
res = <em>f_mkdir</em>("sub1/sub2");
|
||||
if (res) die(res);
|
||||
res = <em>f_mkdir</em>("sub1/sub2/sub3");
|
||||
if (res) die(res);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,116 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/mkfs.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_mkfs</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_mkfs</h2>
|
||||
<p>The f_mkfs fucntion creates an FAT/exFAT volume on the logical drive.</p>
|
||||
<pre>
|
||||
FRESULT f_mkfs (
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Logical drive number */</span>
|
||||
BYTE <span class="arg">opt</span>, <span class="c">/* [IN] Format options */</span>
|
||||
DWORD <span class="arg">au</span>, <span class="c">/* [IN] Size of the allocation unit */</span>
|
||||
void* <span class="arg">work</span>, <span class="c">/* [-] Working buffer */</span>
|
||||
UINT <span class="arg">len</span> <span class="c">/* [IN] Size of working buffer */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string specifies the <a href="filename.html">logical drive</a> to be formatted. If it has no drive number in it, it means the default drive. The logical drive may or may not be mounted for the format process.</dd>
|
||||
<dt>opt</dt>
|
||||
<dd>Specifies the format option in combination of <tt>FM_FAT</tt>, <tt>FM_FAT32</tt>, <tt>FM_EXFAT</tt> and bitwise-or of these three, <tt>FM_ANY</tt>. <tt>FM_EXFAT</tt> is ignored when exFAT is not enabled. These flags specify which FAT type to be created on the volume. If two or more types are specified, one out of them will be selected depends on the volume size. The flag <tt>FM_SFD</tt> specifies to place the volume on the drive in SFD format.</dd>
|
||||
<dt>au</dt>
|
||||
<dd>Specifies size of the allocation unit (cluter) in unit of byte. The valid value is <tt>n</tt> times the sector size. The <tt>n</tt> is power of 2 from 1 to 128 for FAT volume and upto 16MiB for exFAT volume. If zero is given, the default allocation unit size is selected depends on the volume size.</dd>
|
||||
<dt>work</dt>
|
||||
<dd>Pointer to the working buffer used for the format process.</dd>
|
||||
<dt>len</dt>
|
||||
<dd>Size of the working buffer in unit of byte. It needs to be the sector size of the corresponding physical drive at least. Plenty of working buffer reduces number of write transactions to the drive and the format process will finish quickly.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ma">FR_MKFS_ABORTED</a>,
|
||||
<a href="rc.html#ip">FR_INVALID_PARAMETER</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The FAT sub-type, FAT12/FAT16/FAT32, of FAT volume except exFAT is determined by only number of clusters on the volume and nothing else, according to the FAT specification issued by Microsoft. Thus which FAT sub-type is selected, is depends on the volume size and the specified cluster size. In case of the combination of FAT type and cluter size specified by argument cannot be valid on the volume, the function will fail with <tt>FR_MKFS_ABORTED</tt>.</p>
|
||||
<p>The allocation unit, also called <em>cluster</em>, is a unit of disk space allocation for files. When the size of allocation unit is 32768 bytes, a file with 100 bytes in size occupies 32768 bytes of disk space. The space efficiency of disk usage gets worse as increasing size of allocation unit, but, on the other hand, the read/write performance increases as the size of allocation unit. Therefore the size of allocation unit is a trade-off between space efficiency and performance. For the large storages in GB order, 32768 bytes or larger (this is automatically selected by default) is recommended for most case unless extremely many small files are created on a volume.</p>
|
||||
<p>There are two disk formats, FDISK and SFD. The FDISK format is usually used for harddisk, MMC, SDC, CFC and U Disk. It can divide a physical drive into one or more partitions with a partition table on the MBR (maser boot record, the first sector of the physical drive). The SFD (super-floppy disk) format is non-partitioned disk format. The FAT volume starts at the first sector of the physical drive without any disk partitioning. It is usually used for floppy disk, Microdrive, optical disk and most type of super-floppy media. Some systems support only either one of the two formats and the other is not supported.</p>
|
||||
<p>When the logical drive to be formatted is bound to a physical drive and <tt>FM_SFD</tt> is not specified, a primary partition occupies whole drive space is created and then the FAT volume is created in it. When <tt>FM_SFD</tt> is specified, the FAT volume occupies from the first sector of the physical drive is created without partitioning.</p>
|
||||
<p>When the logical drive to be formatted is bound to a specific partition (1-4) by support of multiple partition (<tt><a href="config.html#multi_partition">FF_MULTI_PARTITION</a></tt>) the FAT volume is created into the partition and <tt>FM_SFD</tt> flag is ignored. The physical drive needs to be partitioned with <tt>f_fdisk</tt> function or any other partitioning tools prior to create the FAT volume with this function.</p>
|
||||
</div>
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READOLNY == 0</tt> and <tt>FF_USE_MKFS == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Format default drive and create a file */</span>
|
||||
int main (void)
|
||||
{
|
||||
FATFS fs; <span class="c">/* Filesystem object */</span>
|
||||
FIL fil; <span class="c">/* File object */</span>
|
||||
FRESULT res; <span class="c">/* API result code */</span>
|
||||
UINT bw; <span class="c">/* Bytes written */</span>
|
||||
BYTE work[FF_MAX_SS]; <span class="c">/* Work area (larger is better for processing time) */</span>
|
||||
|
||||
|
||||
<span class="c">/* Create FAT volume */</span>
|
||||
res = <em>f_mkfs</em>("", FM_ANY, 0, work, sizeof work);
|
||||
if (res) ...
|
||||
|
||||
<span class="c">/* Register work area */</span>
|
||||
f_mount(&fs, "", 0);
|
||||
|
||||
<span class="c">/* Create a file as new */</span>
|
||||
res = f_open(&fil, "hello.txt", FA_CREATE_NEW | FA_WRITE);
|
||||
if (res) ...
|
||||
|
||||
<span class="c">/* Write a message */</span>
|
||||
f_write(&fil, "Hello, World!\r\n", 15, &bw);
|
||||
if (bw != 15) ...
|
||||
|
||||
<span class="c">/* Close the file */</span>
|
||||
f_close(&fil);
|
||||
|
||||
<span class="c">/* Unregister work area */</span>
|
||||
f_mount(0, "", 0);
|
||||
|
||||
...
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><a href="../res/mkfs.xls">Example of volume size and format parameters</a>, <a href="filename.html#vol">Volume management</a>, <tt><a href="fdisk.html">f_fdisk</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,112 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/mount.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_mount</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_mount</h2>
|
||||
<p>The f_mount fucntion registers/unregisters filesystem object to the FatFs module.</p>
|
||||
<pre>
|
||||
FRESULT f_mount (
|
||||
FATFS* <span class="arg">fs</span>, <span class="c">/* [IN] Filesystem object */</span>
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Logical drive number */</span>
|
||||
BYTE <span class="arg">opt</span> <span class="c">/* [IN] Initialization option */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fs</dt>
|
||||
<dd>Pointer to the filesystem object to be registered and cleared. Null pointer unregisters the registered filesystem object.</dd>
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">logical drive</a>. The string without drive number means the default drive.</dd>
|
||||
<dt>opt</dt>
|
||||
<dd>Mounting option. 0: Do not mount now (to be mounted on the first access to the volume), 1: Force mounted the volume to check if it is ready to work.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>FatFs needs work area (<em>filesystem object</em>) for each logical drives (FAT volumes). Prior to perform file/directory operations, a filesystem object needs to be registered with <tt>f_mount</tt> function to the logical drive. The file/directory API functions get ready to work after this procedure. If there is any open object of file or directory on the logical drive, the object will be invalidated by this function.</p>
|
||||
<p>The <tt>f_mount</tt> function registers/unregisters a filesystem object to the FatFs module as follows:</p>
|
||||
<ol>
|
||||
<li>Determines the logical drive which specified by <tt class="arg">path</tt>.</li>
|
||||
<li>Clears and unregisters the regsitered work area of the volume if exist.</li>
|
||||
<li>Clears and registers the new work area to the volume if <tt class="arg">fs</tt> is not NULL.</li>
|
||||
<li>Performs volume mount process to the volume if forced mounting is specified.</li>
|
||||
</ol>
|
||||
<p>If forced mounting is not specified (<tt>opt = 0</tt>), this function always succeeds regardless of the physical drive status. It only clears (de-initializes) the given work area and registers its address to the internal table and no activity of the physical drive in this function. To unregister the work area, specify a NULL to the <tt class="arg">fs</tt>, and then the work area can be discarded. The volume mount processes, initialize the corresponding physical drive, find the FAT volume in it and then initialize the work area, is performed in the subsequent file/directory functions when either of following conditions is true.</p>
|
||||
<ul>
|
||||
<li>File system object has not been initialized. It is de-initialized by <tt>f_mount</tt> function.</li>
|
||||
<li>Physical drive is not initialized. It is de-initialized by system reset or media removal.</li>
|
||||
</ul>
|
||||
<p>If the function with forced mounting (<tt>opt = 1</tt>) failed, it means that the filesystem object has been registered successfully but the volume is currently not ready to work. The volume mount process will be attempted at subsequent file/directroy functions if the filesystem object is not initialized. (delayed mounting)</p>
|
||||
<p>If implementation of the disk I/O layer lacks asynchronous media change detection, application program needs to perform <tt>f_mount</tt> function after each media change to force cleared the filesystem object.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
int main (void)
|
||||
{
|
||||
FATFS *fs; <span class="c">/* Ponter to the filesystem object */</span>
|
||||
|
||||
|
||||
fs = malloc(sizeof (FATFS)); <span class="c">/* Get work area for the volume */</span>
|
||||
<em>f_mount</em>(fs, "", 0); <span class="c">/* Mount the default drive */</span>
|
||||
|
||||
f_open(... <span class="c">/* Here any file API can be used */</span>
|
||||
|
||||
...
|
||||
|
||||
<em>f_mount</em>(fs, "", 0); <span class="c">/* Re-mount the default drive to reinitialize the filesystem */</span>
|
||||
|
||||
...
|
||||
|
||||
<em>f_mount</em>(0, "", 0); <span class="c">/* Unmount the default drive */</span>
|
||||
free(fs); <span class="c">/* Here the work area can be discarded */</span>
|
||||
|
||||
...
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a></tt>, <tt><a href="sfatfs.html">FATFS</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,186 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/open.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_open</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_open</h2>
|
||||
<p>The f_open function opens a file.</p>
|
||||
<pre>
|
||||
FRESULT f_open (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [OUT] Pointer to the file object structure */</span>
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] File name */</span>
|
||||
BYTE <span class="arg">mode</span> <span class="c">/* [IN] Mode flags */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the blank file object structure.</dd>
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">file name</a> to open or create.</dd>
|
||||
<dt>mode</dt>
|
||||
<dd>Mode flags that specifies the type of access and open method for the file. It is specified by a combination of following flags.<br>
|
||||
<table class="lst">
|
||||
<tr><th>Flags</th><th>Meaning</th></tr>
|
||||
<tr><td>FA_READ</td><td>Specifies read access to the object. Data can be read from the file.</tr>
|
||||
<tr><td>FA_WRITE</td><td>Specifies write access to the object. Data can be written to the file. Combine with <tt>FA_READ</tt> for read-write access.</td></tr>
|
||||
<tr><td>FA_OPEN_EXISTING</td><td>Opens the file. The function fails if the file is not existing. (Default)</td></tr>
|
||||
<tr><td>FA_CREATE_NEW</td><td>Creates a new file. The function fails with <tt>FR_EXIST</tt> if the file is existing.</td></tr>
|
||||
<tr><td>FA_CREATE_ALWAYS</td><td>Creates a new file. If the file is existing, it will be truncated and overwritten.</td></tr>
|
||||
<tr><td>FA_OPEN_ALWAYS</td><td>Opens the file if it is existing. If not, a new file will be created.</td></tr>
|
||||
<tr><td>FA_OPEN_APPEND</td><td>Same as <tt>FA_OPEN_ALWAYS</tt> except the read/write pointer is set end of the file.</td></tr>
|
||||
</table>
|
||||
Mode flags of POSIX fopen() corresponds to FatFs mode flags as follows:<br>
|
||||
<table class="lst">
|
||||
<tr><th>POSIX</th><th>FatFs</th></tr>
|
||||
<tr><td><tt>"r"</tt></td><td><tt>FA_READ</tt></td></tr>
|
||||
<tr><td><tt>"r+"</tt></td><td><tt>FA_READ | FA_WRITE</tt></td></tr>
|
||||
<tr><td><tt>"w"</tt></td><td><tt>FA_CREATE_ALWAYS | FA_WRITE</tt></td></tr>
|
||||
<tr><td><tt>"w+"</tt></td><td><tt>FA_CREATE_ALWAYS | FA_WRITE | FA_READ</tt></td></tr>
|
||||
<tr><td><tt>"a"</tt></td><td><tt>FA_OPEN_APPEND | FA_WRITE</tt></td></tr>
|
||||
<tr><td><tt>"a+"</tt></td><td><tt>FA_OPEN_APPEND | FA_WRITE | FA_READ</tt></td></tr>
|
||||
<tr><td><tt>"x"</tt><sup>*1</sup></td><td><tt>FA_CREATE_NEW | FA_WRITE</tt></td></tr>
|
||||
<tr><td><tt>"x+"</tt><sup>*1</sup></td><td><tt>FA_CREATE_NEW | FA_WRITE | FA_READ</tt></td></tr>
|
||||
</table>
|
||||
<sup>*1</sup>: glibc extension
|
||||
</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#nf">FR_NO_FILE</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#ex">FR_EXIST</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#lo">FR_LOCKED</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>,
|
||||
<a href="rc.html#tf">FR_TOO_MANY_OPEN_FILES</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_open</tt> function opens a file and creates a <em>file object</em>. The file object is used for subsequent read/write operations to the file to identify the file. Open file should be closed with <a href="close.html"><tt>f_close</tt></a> function after the session of the file access. If any change to the file is made and not closed prior to power down, media removal or re-mount, or the file can be collapsed.</p>
|
||||
<p>If duplicated file open is needed, read <a href="appnote.html#dup">here</a> carefully. However duplicated open of a file with any write mode flag is always prohibited.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available. Only <tt>FA_READ</tt> and <tt>FA_OPEN_EXISTING</tt> are supported when <tt>FF_FS_READONLY == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Read a text file and display it */</span>
|
||||
|
||||
FATFS FatFs; <span class="c">/* Work area (filesystem object) for logical drive */</span>
|
||||
|
||||
int main (void)
|
||||
{
|
||||
FIL fil; <span class="c">/* File object */</span>
|
||||
char line[100]; <span class="c">/* Line buffer */</span>
|
||||
FRESULT fr; <span class="c">/* FatFs return code */</span>
|
||||
|
||||
|
||||
<span class="c">/* Register work area to the default drive */</span>
|
||||
f_mount(&FatFs, "", 0);
|
||||
|
||||
<span class="c">/* Open a text file */</span>
|
||||
fr = <em>f_open</em>(&fil, "message.txt", FA_READ);
|
||||
if (fr) return (int)fr;
|
||||
|
||||
<span class="c">/* Read all lines and display it */</span>
|
||||
while (f_gets(line, sizeof line, &fil)) {
|
||||
printf(line);
|
||||
}
|
||||
|
||||
<span class="c">/* Close the file */</span>
|
||||
f_close(&fil);
|
||||
|
||||
return 0;
|
||||
}
|
||||
</pre>
|
||||
<pre>
|
||||
<span class="c">/* Copy a file "file.bin" on the drive 1 to drive 0 */</span>
|
||||
|
||||
int main (void)
|
||||
{
|
||||
FATFS fs[2]; <span class="c">/* Work area (filesystem object) for logical drives */</span>
|
||||
FIL fsrc, fdst; <span class="c">/* File objects */</span>
|
||||
BYTE buffer[4096]; <span class="c">/* File copy buffer */</span>
|
||||
FRESULT fr; <span class="c">/* FatFs function common result code */</span>
|
||||
UINT br, bw; <span class="c">/* File read/write count */</span>
|
||||
|
||||
|
||||
<span class="c">/* Register work area for each logical drive */</span>
|
||||
f_mount(&fs[0], "0:", 0);
|
||||
f_mount(&fs[1], "1:", 0);
|
||||
|
||||
<span class="c">/* Open source file on the drive 1 */</span>
|
||||
fr = <em>f_open</em>(&fsrc, "1:file.bin", FA_READ);
|
||||
if (fr) return (int)fr;
|
||||
|
||||
<span class="c">/* Create destination file on the drive 0 */</span>
|
||||
fr = <em>f_open</em>(&fdst, "0:file.bin", FA_WRITE | FA_CREATE_ALWAYS);
|
||||
if (fr) return (int)fr;
|
||||
|
||||
<span class="c">/* Copy source to destination */</span>
|
||||
for (;;) {
|
||||
fr = f_read(&fsrc, buffer, sizeof buffer, &br); <span class="c">/* Read a chunk of source file */</span>
|
||||
if (fr || br == 0) break; <span class="c">/* error or eof */</span>
|
||||
fr = f_write(&fdst, buffer, br, &bw); <span class="c">/* Write it to the destination file */</span>
|
||||
if (fr || bw < br) break; <span class="c">/* error or disk full */</span>
|
||||
}
|
||||
|
||||
<span class="c">/* Close open files */</span>
|
||||
f_close(&fsrc);
|
||||
f_close(&fdst);
|
||||
|
||||
<span class="c">/* Unregister work area prior to discard it */</span>
|
||||
f_mount(NULL, "0:", 0);
|
||||
f_mount(NULL, "1:", 0);
|
||||
|
||||
return (int)fr;
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="read.html">f_read</a>, <a href="write.html">f_write</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a>, <a href="sfatfs.html">FATFS</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,75 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/opendir.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_opendir</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_opendir</h2>
|
||||
<p>The f_opendir function opens a directory.</p>
|
||||
<pre>
|
||||
FRESULT f_opendir (
|
||||
DIR* <span class="arg">dp</span>, <span class="c">/* [OUT] Pointer to the directory object structure */</span>
|
||||
const TCHAR* <span class="arg">path</span> <span class="c">/* [IN] Directory name */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>dp</dt>
|
||||
<dd>Pointer to the blank directory object to create a new one.</dd>
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">directory name</a> to be opened.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>,
|
||||
<a href="rc.html#tf">FR_TOO_MANY_OPEN_FILES</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_opendir</tt> function opens an exsisting directory and creates a directory object for subsequent <tt>f_readdir</tt> function.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_MINIMIZE <= 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="readdir.html">f_readdir</a>, <a href="closedir.html">f_closedir</a>, <a href="sdir.html">DIR</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,93 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/printf.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_printf</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_printf</h2>
|
||||
<p>The f_printf function writes formatted string to the file.</p>
|
||||
<pre>
|
||||
int f_printf (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [IN] File object */</span>
|
||||
const TCHAR* <span class="arg">fmt</span>, <span class="c">/* [IN] Format stirng */</span>
|
||||
...
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
<dt>fmt</dt>
|
||||
<dd>Pointer to the null terminated format string. The terminator charactor will not be written.</dd>
|
||||
<dt>...</dt>
|
||||
<dd>Optional arguments...</dd>
|
||||
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>When the function succeeded, it returns number of characters written. If the function could not write the generated string to the file due to disk full or an error, <tt>EOF (-1)</tt> will be returned.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The format control directive is a sub-set of standard library shown as follos:</p>
|
||||
<ul>
|
||||
<li>Type: <tt>c C s S d D u U x X b B</tt></li>
|
||||
<li>Size: <tt>l L</tt></li>
|
||||
<li>Flag: <tt>0 -</tt></li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This is a wrapper function of <a href="write.html"><tt>f_write</tt></a> function. Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_USE_STRFUNC</tt> is 1 or 2. When it is set to 2, <tt>'\n'</tt>s contained in the output are converted to <tt>'\r'+'\n'</tt>.</p>
|
||||
<p>When FatFs is configured to Unicode API (<tt>FF_LFN_UNICODE == 1</tt>), data types on the srting fuctions, <tt>f_putc</tt>, <tt>f_puts</tt>, <tt>f_printf</tt> and <tt>f_gets</tt> function, is also switched to Unicode. The character encoding on the file to be read/written via those functions is selected by <tt>FF_STRF_ENCODE</tt> option.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<em>f_printf</em>(&fil, "%d", 1234); <span class="c">/* "1234" */</span>
|
||||
<em>f_printf</em>(&fil, "%6d,%3d%%", -200, 5); <span class="c">/* " -200, 5%" */</span>
|
||||
<em>f_printf</em>(&fil, "%ld", 12345L); <span class="c">/* "12345" */</span>
|
||||
<em>f_printf</em>(&fil, "%06d", 25); <span class="c">/* "000025" */</span>
|
||||
<em>f_printf</em>(&fil, "%06d", -25); <span class="c">/* "000-25" */</span>
|
||||
<em>f_printf</em>(&fil, "%-6d", 25); <span class="c">/* "25 " */</span>
|
||||
<em>f_printf</em>(&fil, "%u", -1); <span class="c">/* "65535" or "4294967295" */</span>
|
||||
<em>f_printf</em>(&fil, "%04x", 0xAB3); <span class="c">/* "0ab3" */</span>
|
||||
<em>f_printf</em>(&fil, "%08LX", 0x123ABCL); <span class="c">/* "00123ABC" */</span>
|
||||
<em>f_printf</em>(&fil, "%016b", 0x550F); <span class="c">/* "0101010100001111" */</span>
|
||||
<em>f_printf</em>(&fil, "%s", "String"); <span class="c">/* "String" */</span>
|
||||
<em>f_printf</em>(&fil, "%8s", "abc"); <span class="c">/* " abc" */</span>
|
||||
<em>f_printf</em>(&fil, "%-8s", "abc"); <span class="c">/* "abc " */</span>
|
||||
<em>f_printf</em>(&fil, "%c", 'a'); <span class="c">/* "a" */</span>
|
||||
<em>f_printf</em>(&fil, "%f", 10.0); <span class="c">/* <em>f_printf</em> lacks floating point support */</span>
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="putc.html">f_putc</a>, <a href="puts.html">f_puts</a>, <a href="gets.html">f_gets</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,56 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/putc.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_putc</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_putc</h2>
|
||||
<p>The f_putc funciton puts a character to the file.</p>
|
||||
<pre>
|
||||
int f_putc (
|
||||
TCHAR <span class="arg">chr</span>, <span class="c">/* [IN] A character to put */</span>
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>chr</dt>
|
||||
<dd>A character to be put.</dd>
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structuer.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>When the character was written successfuly, it returns number of characters written. When the function failed due to disk full or any error, an <tt>EOF (-1)</tt> will be returned.</p>
|
||||
<p>When FatFs is configured to Unicode API (<tt>FF_LFN_UNICODE == 1</tt>), character encoding on the string fuctions, <tt>f_putc</tt>, <tt>f_puts</tt>, <tt>f_printf</tt> and <tt>f_gets</tt> function, is also switched to Unicode. The character encoding on the file to be read/written via those functions is selected by <tt>FF_STRF_ENCODE</tt> option.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This is a wrapper function of <a href="write.html"><tt>f_write</tt></a> function. Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_USE_STRFUNC</tt> is 1 or 2. When it is set to 2, a <tt>'\n'</tt> is converted to <tt>'\r'+'\n'</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="puts.html">f_puts</a>, <a href="printf.html">f_printf</a>, <a href="gets.html">f_gets</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,56 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/puts.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_puts</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_puts</h2>
|
||||
<p>The f_puts function writes a string to the file.</p>
|
||||
<pre>
|
||||
int f_puts (
|
||||
const TCHAR* <span class="arg">str</span>, <span class="c">/* [IN] String */</span>
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>str</dt>
|
||||
<dd>Pointer to the null terminated string to be written. The terminator character will not be written.</dd>
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Value</h4>
|
||||
<p>When the function succeeded, it returns number of characters written. When the write operation is aborted due to disk full or any error, an <tt>EOF (-1)</tt> will be returned.</p>
|
||||
<p>When FatFs is configured to Unicode API (<tt>FF_LFN_UNICODE == 1</tt>), character encoding on the srting fuctions, <tt>f_putc</tt>, <tt>f_puts</tt>, <tt>f_printf</tt> and <tt>f_gets</tt> function, is also switched to Unicode. The character encoding on the file to be read/written via those functions is selected by <tt>FF_STRF_ENCODE</tt> option.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>This is a wrapper function of <a href="write.html"><tt>f_write</tt></a> function. Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_USE_STRFUNC</tt> is 1 or 2. When it is set to 2, <tt>'\n'</tt>s contained in the string are converted to <tt>'\r'+'\n'</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="putc.html">f_putc</a>, <a href="printf.html">f_printf</a>, <a href="gets.html">f_gets</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
123
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/doc/rc.html
Normal file
123
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/doc/rc.html
Normal file
|
|
@ -0,0 +1,123 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/rc.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - API Return Code</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
<h1>Return Code of API Functions</h1>
|
||||
<p>Most of API functions return common result code as enum type <tt>FRESULT</tt>. When an API function succeeded, it returns zero (<tt>FR_OK</tt>), otherwise it returns non-zero value indicates type of error.</p>
|
||||
|
||||
<dl class="ret">
|
||||
|
||||
<dt id="ok">FR_OK (0)</dt>
|
||||
<dd>The function succeeded.</dd>
|
||||
|
||||
<dt id="de">FR_DISK_ERR</dt>
|
||||
<dd>The lower layer, <tt>disk_read</tt>, <tt>disk_write</tt> or <tt>disk_ioctl</tt> function, reported that an unrecoverable hard error occured.<br>Note that if once this error occured at any operation to an open file, the file object is aborted and all operations to the file except for close will be rejected.</dd>
|
||||
|
||||
<dt id="ie">FR_INT_ERR</dt>
|
||||
<dd>Assertion failed. An insanity is detected in the internal process. One of the following possibilities is suspected.
|
||||
<ul>
|
||||
<li>Work area (file system object, file object or etc...) has been broken by stack overflow or any other tasks. This is the reason in most case.</li>
|
||||
<li>There is an error of the FAT structure on the volume.</li>
|
||||
<li>There is a bug in the FatFs module itself.</li>
|
||||
</ul>
|
||||
Note that if once this error occured at any operation to an open file, the file object is aborted and all operations to the file except for close will be rejected.
|
||||
</dd>
|
||||
|
||||
<dt id="nr">FR_NOT_READY</dt>
|
||||
<dd>The lower layer, <a href="dinit.html"><tt>disk_initialize</tt></a> function, reported that the storage device could not be got ready to work. One of the following possibilities is suspected.
|
||||
<ul>
|
||||
<li>No medium in the drive.</li>
|
||||
<li>Wrong lower layer implementation for the storage device.</li>
|
||||
<li>Wrong hardware configuration.</li>
|
||||
<li>The storage device is broken.</li>
|
||||
</ul>
|
||||
</dd>
|
||||
|
||||
<dt id="nf">FR_NO_FILE</dt>
|
||||
<dd>Could not find the file.</dd>
|
||||
|
||||
<dt id="np">FR_NO_PATH</dt>
|
||||
<dd>Could not find the path.</dd>
|
||||
|
||||
<dt id="in">FR_INVALID_NAME</dt>
|
||||
<dd>The given string is invalid as the <a href="filename.html">path name</a>.</dd>
|
||||
|
||||
<dt id="dn">FR_DENIED</dt>
|
||||
<dd>The required access was denied due to one of the following reasons:
|
||||
<ul>
|
||||
<li>Write mode open against the read-only file.</li>
|
||||
<li>Deleting the read-only file or directory.</li>
|
||||
<li>Deleting the non-empty directory or current directory.</li>
|
||||
<li>Reading the file opened without <tt>FA_READ</tt> flag.</li>
|
||||
<li>Any modification to the file opened without <tt>FA_WRITE</tt> flag.</li>
|
||||
<li>Could not create the object due to root directory full or disk full.</li>
|
||||
<li>Could not allocate a contiguous area to the file.</li>
|
||||
</ul>
|
||||
</dd>
|
||||
|
||||
<dt id="ex">FR_EXIST</dt>
|
||||
<dd>Name collision. An object with the same name is already existing.</dd>
|
||||
|
||||
<dt id="io">FR_INVALID_OBJECT</dt>
|
||||
<dd>The file/directory object is invalid or a null pointer is given. There are some reasons as follows:
|
||||
<ul>
|
||||
<li>It has been closed, it has not been opened or it has been collapsed.</li>
|
||||
<li>It has been invalidated by a voulme mount process. Open objects on the volume are invalidated by voulme mount process.</li>
|
||||
<li>Physical drive is not ready to work due to a media removal.</li>
|
||||
</ul>
|
||||
</dd>
|
||||
|
||||
<dt id="wp">FR_WRITE_PROTECTED</dt>
|
||||
<dd>A write mode operation against the write-protected media.</dd>
|
||||
|
||||
<dt id="id">FR_INVALID_DRIVE</dt>
|
||||
<dd>Invalid drive number is specified in the path name. A null pointer is given as the path name. (Related option: <tt><a href="config.html#volumes">FF_VOLUMES</a></tt>)</dd>
|
||||
|
||||
<dt id="ne">FR_NOT_ENABLED</dt>
|
||||
<dd>Work area for the logical drive has not been registered by <tt>f_mount</tt> function.</dd>
|
||||
|
||||
<dt id="ns">FR_NO_FILESYSTEM</dt>
|
||||
<dd>There is no valid FAT volume on the drive.</dd>
|
||||
|
||||
<dt id="ma">FR_MKFS_ABORTED</dt>
|
||||
<dd>The <tt>f_mkfs</tt> function aborted before start in format due to a reason as follows:
|
||||
<ul>
|
||||
<li>It is pmpossible to formart with the given parameters.</li>
|
||||
<li>The size of volume is too small.</li>
|
||||
<li>The size of given work area is too small.</li>
|
||||
<li>The partition bound to the logical drive coulud not be found. (Related option: <tt><a href="config.html#multi_partition">FF_MULTI_PARTITION</a></tt>)</li>
|
||||
</ul>
|
||||
</dd>
|
||||
|
||||
<dt id="tm">FR_TIMEOUT</dt>
|
||||
<dd>The function was canceled due to a timeout of <a href="appnote.html#reentrant">thread-safe control</a>. (Related option: <tt><a href="config.html#timeout">FF_TIMEOUT</a></tt>)</dd>
|
||||
|
||||
<dt id="lo">FR_LOCKED</dt>
|
||||
<dd>The operation to the object was rejected by <a href="appnote.html#dup">file sharing control</a>. (Related option: <tt><a href="config.html#fs_lock">FF_FS_LOCK</a></tt>)</dd>
|
||||
|
||||
<dt id="nc">FR_NOT_ENOUGH_CORE</dt>
|
||||
<dd>Not enough memory for the operation. There is one of the following reasons:
|
||||
<ul>
|
||||
<li>Could not allocate a memory for LFN working buffer. (Related option: <tt><a href="config.html#use_lfn">FF_USE_LFN</a></tt>)</li>
|
||||
<li>Size of the given buffer is insufficient for the size required.</li>
|
||||
</ul>
|
||||
</dd>
|
||||
|
||||
<dt id="tf">FR_TOO_MANY_OPEN_FILES</dt>
|
||||
<dd>Number of open objects has been reached maximum value and no more object can be opened. (Related option: <tt><a href="config.html#fs_lock">FF_FS_LOCK</a></tt>)</dd>
|
||||
|
||||
<dt id="ip">FR_INVALID_PARAMETER</dt>
|
||||
<dd>The given parameter is invalid or there is an inconsistent for the volume.</dd>
|
||||
</dl>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,74 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/read.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_read</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_read</h2>
|
||||
<p>The f_read function reads data from a file.</p>
|
||||
<pre>
|
||||
FRESULT f_read (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [IN] File object */</span>
|
||||
void* <span class="arg">buff</span>, <span class="c">/* [OUT] Buffer to store read data */</span>
|
||||
UINT <span class="arg">btr</span>, <span class="c">/* [IN] Number of bytes to read */</span>
|
||||
UINT* <span class="arg">br</span> <span class="c">/* [OUT] Number of bytes read */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object.</dd>
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to the buffer to store read data.</dd>
|
||||
<dt>btr</dt>
|
||||
<dd>Number of bytes to read in range of <tt>UINT</tt> type.</dd>
|
||||
<dt>br</dt>
|
||||
<dd>Pointer to the <tt>UINT</tt> variable to return number of bytes read. This value is always valid after the function call regardless of the return value.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The function starts to read data from the file at the position pointed by the read/write pointer. The read/write pointer advances as number of bytes read. After the function succeeded, <tt class="arg">*br</tt> should be checked to detect end of the file. In case of <tt class="arg">*br</tt> < <tt class="arg">btr</tt>, it means the read/write pointer reached end of the file during read operation.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="gets.html">fgets</a>, <a href="write.html">f_write</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,129 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/readdir.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_readdir</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_readdir</h2>
|
||||
<p>The f_readdir function reads an item of the directory.</p>
|
||||
<pre>
|
||||
FRESULT f_readdir (
|
||||
DIR* <span class="arg">dp</span>, <span class="c">/* [IN] Directory object */</span>
|
||||
FILINFO* <span class="arg">fno</span> <span class="c">/* [OUT] File information structure */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>dp</dt>
|
||||
<dd>Pointer to the open directory object or null pointer.</dd>
|
||||
<dt>fno</dt>
|
||||
<dd>Pointer to the <a href="sfileinfo.html">file information structure</a> to store the information about read item.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_readdir</tt> function reads a directory item, informations about the object. All items in the directory can be read in sequence by <tt>f_readdir</tt> function calls. Dot entries (<tt>"."</tt> and <tt>".."</tt>) in the sub-directory are filtered out and they will never appear in the read items. When all directory items have been read and no item to read, a nul string is stored into the <tt>fno->fname[]</tt> without any error. When a null pointer is given to the <tt class="arg">fno</tt>, the read index of the directory object is rewinded.</p>
|
||||
<p>When support of long file name (LFN) is enabled, a member <tt>altname[]</tt> is defined in the file information structure to store the short file name of the object. In case of the some conditions listed below, short file name is stored into the <tt>fname[]</tt> and <tt>altname[]</tt> has a null string.</p>
|
||||
<ul>
|
||||
<li>The item has no long file name. (Not the case at exFAT volume)</li>
|
||||
<li>Setting of <tt>FF_MAX_LFN</tt> is insufficient for the long file name. (Not the case at <tt>FF_MAX_LFN == 255</tt>)</li>
|
||||
<li>The long file name contains any character not allowed in ANSI/OEM code. (Not the case at <tt>FF_LFN_UNICODE == 1</tt>)</li>
|
||||
</ul>
|
||||
<p>There is a problem on reading a directory of exFAT volume. The exFAT does not support short file name. This means no name can be returned on the condition above. If it is the case, "?" is returned into the <tt>fname[]</tt> to indicate that the object is not accessible. To avoid this problem, configure FatFs <tt>FF_LFN_UNICODE = 1</tt> and <tt>FF_MAX_LFN = 255</tt> to support the full feature of LFN specification.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_MINIMIZE <= 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Sample Code</h4>
|
||||
<pre>
|
||||
FRESULT scan_files (
|
||||
char* path <span class="c">/* Start node to be scanned (***also used as work area***) */</span>
|
||||
)
|
||||
{
|
||||
FRESULT res;
|
||||
DIR dir;
|
||||
UINT i;
|
||||
static FILINFO fno;
|
||||
|
||||
|
||||
res = f_opendir(&dir, path); <span class="c">/* Open the directory */</span>
|
||||
if (res == FR_OK) {
|
||||
for (;;) {
|
||||
res = <em>f_readdir</em>(&dir, &fno); <span class="c">/* Read a directory item */</span>
|
||||
if (res != FR_OK || fno.fname[0] == 0) break; <span class="c">/* Break on error or end of dir */</span>
|
||||
if (fno.fattrib & AM_DIR) { <span class="c">/* It is a directory */</span>
|
||||
i = strlen(path);
|
||||
sprintf(&path[i], "/%s", fno.fname);
|
||||
res = scan_files(path); <span class="c">/* Enter the directory */</span>
|
||||
if (res != FR_OK) break;
|
||||
path[i] = 0;
|
||||
} else { <span class="c">/* It is a file. */</span>
|
||||
printf("%s/%s\n", path, fno.fname);
|
||||
}
|
||||
}
|
||||
f_closedir(&dir)
|
||||
}
|
||||
|
||||
return res;
|
||||
}
|
||||
|
||||
|
||||
int main (void)
|
||||
{
|
||||
FATFS fs;
|
||||
FRESULT res;
|
||||
char buff[256];
|
||||
|
||||
|
||||
res = f_mount(&fs, "", 1);
|
||||
if (res == FR_OK) {
|
||||
strcpy(buff, "/");
|
||||
res = scan_files(buff);
|
||||
}
|
||||
|
||||
return res;
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="opendir.html">f_opendir</a>, <a href="closedir.html">f_closedir</a>, <a href="stat.html">f_stat</a>, <a href="sfileinfo.html">FILINFO</a>, <a href="sdir.html">DIR</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,87 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/rename.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_rename</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_rename</h2>
|
||||
<p>The f_rename function renames and/or moves a file or sub-directory.</p>
|
||||
<pre>
|
||||
FRESULT f_rename (
|
||||
const TCHAR* <span class="arg">old_name</span>, <span class="c">/* [IN] Old object name */</span>
|
||||
const TCHAR* <span class="arg">new_name</span> <span class="c">/* [IN] New object name */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>old_name</dt>
|
||||
<dd>Pointer to a null-terminated string that specifies the existing <a href="filename.html">file or sub-directory</a> to be renamed.</dd>
|
||||
<dt>new_name</dt>
|
||||
<dd>Pointer to a null-terminated string that specifies the new object name. A drive number may be specified in this string but it is ignored and assumed as the same drive of the <tt class="arg">old_name</tt>. Any object with this path name except <tt class="arg">old_name</tt> must not be exist, or the function fails with <tt>FR_EXIST</tt>.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ok">FR_NO_FILE</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#ex">FR_EXIST</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#lo">FR_LOCKED</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>Renames a file or sub-directory and can also move it to other directory in the same volume. The object to be renamed must not be an open object, or <em>the FAT volume can be collapsed</em>. Such the wrong operation is rejected safely when <a href="appnote.html#dup">file lock function</a> is enabled.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_FS_MINIMIZE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Rename an object in the default drive */</span>
|
||||
<em>f_rename</em>("oldname.txt", "newname.txt");
|
||||
|
||||
<span class="c">/* Rename an object in the drive 2 */</span>
|
||||
<em>f_rename</em>("2:oldname.txt", "newname.txt");
|
||||
|
||||
<span class="c">/* Rename an object and move it to another directory in the drive */</span>
|
||||
<em>f_rename</em>("log.txt", "old/log0001.txt");
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,38 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/sdir.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - DIR</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para">
|
||||
<h2>DIR</h2>
|
||||
<p>The <tt>DIR</tt> structure is used for the work area to read a directory by <tt>f_oepndir</tt>, <tt>f_readdir</tt>, <tt>f_findfirst</tt> and <tt>f_findnext</tt> function. Application program must not modify any member in this structure, or any file on the volume can be collapsed.</p>
|
||||
<pre>
|
||||
<span class="k">typedef</span> <span class="k">struct</span> {
|
||||
FFOBJID obj; <span class="c">/* Object identifier */</span>
|
||||
DWORD dptr; <span class="c">/* Current read/write offset */</span>
|
||||
DWORD clust; <span class="c">/* Current cluster */</span>
|
||||
DWORD sect; <span class="c">/* Current sector */</span>
|
||||
BYTE* dir; <span class="c">/* Pointer to the current SFN entry in the win[] */</span>
|
||||
BYTE* fn; <span class="c">/* Pointer to the SFN buffer (in/out) {file[8],ext[3],status[1]} */</span>
|
||||
<span class="k">#if</span> FF_USE_LFN
|
||||
DWORD blk_ofs; <span class="c">/* Offset of the entry block (0xFFFFFFFF:Invalid) */</span>
|
||||
WCHAR* lfn; <span class="c">/* Pointer to the LFN working buffer (in/out) */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if</span> FF_USE_FIND
|
||||
const TCHAR* pat; <span class="c">/* Ponter to the matching pattern */</span>
|
||||
<span class="k">#endif</span>
|
||||
} DIR;
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,82 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/getcwd.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_setcp</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_setcp</h2>
|
||||
<p>The f_setcp function sets the active code page.</p>
|
||||
<pre>
|
||||
FRESULT f_setcp (
|
||||
WORD <span class="arg">cp</span> <span class="c">/* [IN] Code page to be set */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>cp</dt>
|
||||
<dd>OEM code page to be used for the path name. Valid values are as follows.<br>
|
||||
<table class="lst1">
|
||||
<tr><th>Value</th><th>Meaning</th></tr>
|
||||
<tr><td>0</td><td>Initial value (non-ASCII character cannot be used)</td></tr>
|
||||
<tr><td>437</td><td>U.S.</td></tr>
|
||||
<tr><td>720</td><td>Arabic</td></tr>
|
||||
<tr><td>737</td><td>Greek</td></tr>
|
||||
<tr><td>771</td><td>KBL</td></tr>
|
||||
<tr><td>775</td><td>Baltic</td></tr>
|
||||
<tr><td>850</td><td>Latin 1</td></tr>
|
||||
<tr><td>852</td><td>Latin 2</td></tr>
|
||||
<tr><td>855</td><td>Cyrillic</td></tr>
|
||||
<tr><td>857</td><td>Turkish</td></tr>
|
||||
<tr><td>860</td><td>Portuguese</td></tr>
|
||||
<tr><td>861</td><td>Icelandic</td></tr>
|
||||
<tr><td>862</td><td>Hebrew</td></tr>
|
||||
<tr><td>863</td><td>Canadian French</td></tr>
|
||||
<tr><td>864</td><td>Arabic</td></tr>
|
||||
<tr><td>865</td><td>Nordic</td></tr>
|
||||
<tr><td>866</td><td>Russian</td></tr>
|
||||
<tr><td>869</td><td>Greek 2</td></tr>
|
||||
<tr><td>932</td><td>Japanese (DBCS)</td></tr>
|
||||
<tr><td>936</td><td>Simplified Chinese (DBCS)</td></tr>
|
||||
<tr><td>949</td><td>Korean (DBCS)</td></tr>
|
||||
<tr><td>950</td><td>Traditional Chinese (DBCS)</td></tr>
|
||||
</table>
|
||||
</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#ip">FR_INVALID_PARAMETER</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_setcp</tt> function sets the active code page for the path name. Also code conversion of string functions will be affected by the code page when <tt>FF_LFN_UNICODE = 1</tt> and <tt>FF_STRF_ENCODE = 0</tt>. Because the initial setting of the code page is 0 and API function with non-ASCII character will not work properly. Any valid code page needs to be set on the system start-up and it should not be changed on the fly.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_CODE_PAGE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,91 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/setlabel.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_setlabel</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_setlabel</h2>
|
||||
<p>The f_setlabel function sets/removes the label of a volume.</p>
|
||||
<pre>
|
||||
FRESULT f_setlabel (
|
||||
const TCHAR* <span class="arg">label</span> <span class="c">/* [IN] Volume label to be set */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>label</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the volume label to be set.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>When the string has a drive number, the volume label will be set to the volume specified by the drive number. If not, the volume label will be set to the default drive. If length of the given volume label is zero, the volume label on the volume will be removed. The format of the volume label on the FAT volume is similar to the file name but there are some differences shown below:</p>
|
||||
<ul>
|
||||
<li>Period is not allowed.</li>
|
||||
<li>Spaces can be contained anywhere in the volume label. Trailing spaces are truncated off at FAT volume.</li>
|
||||
<li>Up to 11 bytes long as conversion of OEM code page at FAT volume.</li>
|
||||
<li>Up to 11 characters long at exFAT volume. Lower case is preserved.</li>
|
||||
</ul>
|
||||
<p>Remark: The standard system (Windows) has a problem at the volume label with a heading <tt>\xE5</tt> on the FAT volume. To avoid this problem, this function rejects such volume label as invalid name.</p>
|
||||
</div>
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_USE_LABEL == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
<span class="c">/* Set volume label to the default drive */</span>
|
||||
<em>f_setlabel</em>("DATA DISK");
|
||||
|
||||
<span class="c">/* Set volume label to the drive 2 */</span>
|
||||
<em>f_setlabel</em>("2:DISK 3 OF 4");
|
||||
|
||||
<span class="c">/* Remove volume label of the drive 2 */</span>
|
||||
<em>f_setlabel</em>("2:");
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<tt><a href="getlabel.html">f_getlabel</a></tt>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,62 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/sfatfs.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - FATFS</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para">
|
||||
<h2>FATFS</h2>
|
||||
<p>The <tt>FATFS</tt> structure (filesystem object) holds dynamic work area of individual logical drives. It is given by application program and registerd/unregisterd to the FatFs module with <tt>f_mount</tt> function. Initialization of the structure is done by volume mount process whenever necessary. Application program must not modify any member in this structure, or the FAT volume can be collapsed.</p>
|
||||
<pre>
|
||||
<span class="k">typedef</span> <span class="k">struct</span> {
|
||||
BYTE fs_type; <span class="c">/* FAT type (0, FS_FAT12, FS_FAT16, FS_FAT32 or FS_EXFAT) */</span>
|
||||
BYTE pdrv; <span class="c">/* Hosting physical drive of this volume */</span>
|
||||
BYTE n_fats; <span class="c">/* Number of FAT copies (1,2) */</span>
|
||||
BYTE wflag; <span class="c">/* win[] flag (b0:win[] is dirty) */</span>
|
||||
BYTE fsi_flag; <span class="c">/* FSINFO flags (b7:Disabled, b0:Dirty) */</span>
|
||||
WORD id; <span class="c">/* Volume mount ID */</span>
|
||||
WORD n_rootdir; <span class="c">/* Number of root directory entries (FAT12/16) */</span>
|
||||
WORD csize; <span class="c">/* Sectors per cluster */</span>
|
||||
<span class="k">#if</span> FF_MAX_SS != FF_MIN_SS
|
||||
WORD ssize; <span class="c">/* Sector size (512,1024,2048 or 4096) */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if FF_FS_EXFAT</span>
|
||||
BYTE* dirbuf; <span class="c">/* Directory entry block scratchpad buffer */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if</span> FF_FS_REENTRANT
|
||||
FF_SYNC_t sobj; <span class="c">/* Identifier of sync object */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if</span> !FF_FS_READONLY
|
||||
DWORD last_clust; <span class="c">/* FSINFO: Last allocated cluster (0xFFFFFFFF if invalid) */</span>
|
||||
DWORD free_clust; <span class="c">/* FSINFO: Number of free clusters (0xFFFFFFFF if invalid) */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if</span> FF_FS_RPATH
|
||||
DWORD cdir; <span class="c">/* Cluster number of current directory (0:root) */</span>
|
||||
<span class="k">#if FF_FS_EXFAT</span>
|
||||
DWORD cdc_scl; <span class="c">/* Containing directory start cluster (invalid when cdir is 0) */</span>
|
||||
DWORD cdc_size; <span class="c">/* b31-b8:Size of containing directory, b7-b0: Chain status */</span>
|
||||
DWORD cdc_ofs; <span class="c">/* Offset in the containing directory (invalid when cdir is 0) */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#endif</span>
|
||||
DWORD n_fatent; <span class="c">/* Number of FAT entries (Number of clusters + 2) */</span>
|
||||
DWORD fsize; <span class="c">/* Sectors per FAT */</span>
|
||||
DWORD volbase; <span class="c">/* Volume base LBA */</span>
|
||||
DWORD fatbase; <span class="c">/* FAT base LBA */</span>
|
||||
DWORD dirbase; <span class="c">/* Root directory base (LBA|Cluster) */</span>
|
||||
DWORD database; <span class="c">/* Data base LBA */</span>
|
||||
DWORD winsect; <span class="c">/* Sector LBA appearing in the win[] */</span>
|
||||
BYTE win[FF_MAX_SS]; <span class="c">/* Disk access window for directory, FAT (and file data at tiny cfg) */</span>
|
||||
} FATFS;
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,43 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/sfile.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - FIL</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para">
|
||||
<h2>FIL</h2>
|
||||
<p>The <tt>FIL</tt> structure (file object) holds the state of an open file. It is created by <tt>f_open</tt> function and discarded by <tt>f_close</tt> function. Application program must not modify any member in this structure except for <tt>cltbl</tt>, or any data on the FAT volume can be collapsed. Note that a sector buffer is defined in this structure at non-tiny configuration (<tt>FF_FS_TINY == 0</tt>), so that the <tt>FIL</tt> structures at that configuration should not be defined as auto variable.</p>
|
||||
|
||||
<pre>
|
||||
<span class="k">typedef</span> <span class="k">struct</span> {
|
||||
FFOBJID obj; <span class="c">/* Object identifier */</span>
|
||||
BYTE flag; <span class="c">/* File object status flags */</span>
|
||||
BYTE err; <span class="c">/* Abort flag (error code) */</span>
|
||||
FSIZE_t fptr; <span class="c">/* File read/write pointer (Byte offset origin from top of the file) */</span>
|
||||
DWORD clust; <span class="c">/* Current cluster of fptr (One cluster behind if fptr is on the cluster boundary. Invalid if fptr == 0.) */</span>
|
||||
DWORD sect; <span class="c">/* Current data sector (Can be invalid if fptr is on the cluster boundary.)*/</span>
|
||||
<span class="k">#if</span> !FF_FS_READONLY
|
||||
DWORD dir_sect; <span class="c">/* Sector number containing the directory entry */</span>
|
||||
BYTE* dir_ptr; <span class="c">/* Ponter to the directory entry in the window */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if</span> FF_USE_FASTSEEK
|
||||
DWORD* cltbl; <span class="c">/* Pointer to the cluster link map table (Nulled on file open. Set by application.) */</span>
|
||||
<span class="k">#endif</span>
|
||||
<span class="k">#if</span> !FF_FS_TINY
|
||||
BYTE buf[FF_MAX_SS]; <span class="c">/* File private data transfer buffer (Always valid if fptr is not on the sector boundary but can be invalid if fptr is on the sector boundary.) */</span>
|
||||
<span class="k">#endif</span>
|
||||
} FIL;
|
||||
</pre>
|
||||
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,69 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/sfileinfo.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - FILINFO</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para">
|
||||
<h2>FILINFO</h2>
|
||||
<p>The <tt>FILINFO</tt> structure holds information about the object returned by <tt>f_readdir</tt>, <tt>f_findfirst</tt>, <tt>f_findnext</tt> and <tt>f_stat</tt> function. Be careful in the size of structure when LFN is enabled.</p>
|
||||
<pre>
|
||||
<span class="k">typedef struct</span> {
|
||||
FSIZE_t fsize; <span class="c">/* File size */</span>
|
||||
WORD fdate; <span class="c">/* Last modified date */</span>
|
||||
WORD ftime; <span class="c">/* Last modified time */</span>
|
||||
BYTE fattrib; <span class="c">/* Attribute */</span>
|
||||
<span class="k">#if</span> FF_USE_LFN
|
||||
TCHAR altname[13]; <span class="c">/* Alternative object name */</span>
|
||||
TCHAR fname[FF_MAX_LFN + 1]; <span class="c">/* Primary object name */</span>
|
||||
<span class="k">#else</span>
|
||||
TCHAR fname[13]; <span class="c">/* Object name */</span>
|
||||
<span class="k">#endif</span>
|
||||
} FILINFO;
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<h4>Members</h4>
|
||||
<dl>
|
||||
<dt>fsize</dt>
|
||||
<dd>Indicates size of the file in unit of byte. <tt>FSIZE_t</tt> is an alias of integer type either <tt>DWORD</tt>(32-bit) or <tt>QWORD</tt>(64-bit) depends on the configuration option <tt>FF_FS_EXFAT</tt>. Do not care when the item is a directory.</dd>
|
||||
<dt>fdate</dt>
|
||||
<dd>Indicates the date when the file was modified or the directory was created.<br>
|
||||
<dl>
|
||||
<dt>bit15:9</dt>
|
||||
<dd>Year origin from 1980 (0..127)</dd>
|
||||
<dt>bit8:5</dt>
|
||||
<dd>Month (1..12)</dd>
|
||||
<dt>bit4:0</dt>
|
||||
<dd>Day (1..31)</dd>
|
||||
</dl>
|
||||
</dd>
|
||||
<dt>ftime</dt>
|
||||
<dd>Indicates the time when the file was modified or the directory was created.<br>
|
||||
<dl>
|
||||
<dt>bit15:11</dt>
|
||||
<dd>Hour (0..23)</dd>
|
||||
<dt>bit10:5</dt>
|
||||
<dd>Minute (0..59)</dd>
|
||||
<dt>bit4:0</dt>
|
||||
<dd>Second / 2 (0..29)</dd>
|
||||
</dl>
|
||||
</dd>
|
||||
<dt>fattrib</dt>
|
||||
<dd>Indicates the file/directory attribute in combination of <tt>AM_DIR</tt>, <tt>AM_RDO</tt>, <tt>AM_HID</tt>, <tt>AM_SYS</tt> and <tt>AM_ARC</tt>.</dd>
|
||||
<dt>fname[]</dt>
|
||||
<dd>The null-terminated object name is stored. A null string is stored when no item to read and it indicates this structure is invalid.</dd>
|
||||
<dt>altname[]</dt>
|
||||
<dd>Alternative object name is stored if available. This member is not available at non-LFN configuration.</dd>
|
||||
</dl>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,62 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/size.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_size</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_size</h2>
|
||||
<p>The f_size function gets the size of a file.</p>
|
||||
<pre>
|
||||
FSIZE_t f_size (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>Returns the size of the file in unit of byte.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>In this revision, the <tt>f_size</tt> function is implemented as a macro. It does not have any validation and mutual exclusion.</p>
|
||||
<pre>
|
||||
<span class="k">#define</span> f_size(fp) ((fp)->obj.objsize)
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="lseek.html">f_lseek</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,110 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/stat.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_stat</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_stat</h2>
|
||||
<p>The f_stat function checks the existence of a file or sub-directory.</p>
|
||||
<pre>
|
||||
FRESULT f_stat (
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Object name */</span>
|
||||
FILINFO* <span class="arg">fno</span> <span class="c">/* [OUT] FILINFO structure */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies the <a href="filename.html">object</a> to get its information.</dd>
|
||||
<dt>fno</dt>
|
||||
<dd>Pointer to the blank <tt>FILINFO</tt> structure to store the information of the object. Set null pointer if it is not needed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ok">FR_NO_FILE</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_stat</tt> function checks the existence of a file or sub-directory. If not exist, the function returns with <tt>FR_NO_FILE</tt>. If exist, the function returns with <tt>FR_OK</tt> and the informations of the object, file size, timestamp and attribute, are stored to the file information structure. For details of the file information, refer to the <tt>FILINFO</tt> structure and <a href="readdir.html"><tt>f_readdir</tt></a> function.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_MINIMIZE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
FRESULT fr;
|
||||
FILINFO fno;
|
||||
|
||||
|
||||
printf("Test for 'file.txt'...\n");
|
||||
|
||||
fr = f_stat("file.txt", &fno);
|
||||
switch (fr) {
|
||||
|
||||
case FR_OK:
|
||||
printf("Size: %lu\n", fno.fsize);
|
||||
printf("Timestamp: %u/%02u/%02u, %02u:%02u\n",
|
||||
(fno.fdate >> 9) + 1980, fno.fdate >> 5 & 15, fno.fdate & 31,
|
||||
fno.ftime >> 11, fno.ftime >> 5 & 63);
|
||||
printf("Attributes: %c%c%c%c%c\n",
|
||||
(fno.fattrib & AM_DIR) ? 'D' : '-',
|
||||
(fno.fattrib & AM_RDO) ? 'R' : '-',
|
||||
(fno.fattrib & AM_HID) ? 'H' : '-',
|
||||
(fno.fattrib & AM_SYS) ? 'S' : '-',
|
||||
(fno.fattrib & AM_ARC) ? 'A' : '-');
|
||||
break;
|
||||
|
||||
case FR_NO_FILE:
|
||||
printf("It is not exist.\n");
|
||||
break;
|
||||
|
||||
default:
|
||||
printf("An error occured. (%d)\n", fr);
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>References</h4>
|
||||
<p><tt><a href="opendir.html">f_opendir</a>, <a href="readdir.html">f_readdir</a>, <a href="sfileinfo.html">FILINFO</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,65 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/sync.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_sync</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_sync</h2>
|
||||
<p>The f_sync function flushes the cached information of a writing file.</p>
|
||||
<pre>
|
||||
FRESULT f_sync (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object to be flushed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_sync</tt> function performs the same process as <tt>f_close</tt> function but the file is left opened and can continue read/write/seek operations to the file. This is suitable for the applications that open files for a long time in write mode, such as data logger. Performing <tt>f_sync</tt> function of periodic or immediataly after <tt>f_write</tt> function can minimize the risk of data loss due to a sudden blackout or an unintentional media removal. For more information, refer to <a href="appnote.html#critical">application note</a>.</p>
|
||||
<p>However there is no sense in <tt>f_sync</tt> function immediataly before <tt>f_close</tt> function because it performs <tt>f_sync</tt> function in it. In other words, the differnce between those functions is that the file object is invalidated or not.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="close.html">f_close</a></tt>, <a href="appnote.html#critical">Critical section</a></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,62 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/tell.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_tell</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_tell</h2>
|
||||
<p>The f_tell function gets the current read/write pointer of a file.</p>
|
||||
<pre>
|
||||
FSIZE_t f_tell (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>Returns current read/write pointer of the file.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>In this revision, the <tt>f_tell</tt> function is implemented as a macro. It does not have any validation and mutual exclusion.</p>
|
||||
<pre>
|
||||
<span class="k">#define</span> f_tell(fp) ((fp)->fptr)
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Always available.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="lseek.html">f_lseek</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,66 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/truncate.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_truncate</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_truncate</h2>
|
||||
<p>The f_truncate function truncates the file size.</p>
|
||||
<pre>
|
||||
FRESULT f_truncate (
|
||||
FIL* <span class="arg">fp</span> <span class="c">/* [IN] File object */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object to be truncated.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_truncate</tt> function truncates the file size to the current file read/write pointer. This function has no effect if the file read/write pointer is already pointing end of the file.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_FS_MINIMIZE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="lseek.html">f_lseek</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,74 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/unlink.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_unlink</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_unlink</h2>
|
||||
<p>The f_unlink function removes a file or sub-directory.</p>
|
||||
<pre>
|
||||
FRESULT f_unlink (
|
||||
const TCHAR* <span class="arg">path</span> <span class="c">/* [IN] Object name */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameter</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to a null-terminated string that specifies the <a href="filename.html">file or sub-directory</a> to be removed.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ok">FR_NO_FILE</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#lo">FR_LOCKED</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>
|
||||
If condition of the object to be removed is applicable to the following terms, the function will be rejected.<ul>
|
||||
<li>The file/sub-directory must not have read-only attribute (<tt>AM_RDO</tt>), or the function will be rejected with <tt>FR_DENIED</tt>.</li>
|
||||
<li>The sub-directory must be empty and must not be current directory, or the function will be rejected with <tt>FR_DENIED</tt>.</li>
|
||||
<li>The file/sub-directory must not be opened, or the <em>FAT volume can be collapsed</em>. It will be rejected safely when <a href="appnote.html#dup">file lock function</a> is enabled.</li>
|
||||
</ul>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_FS_MINIMIZE == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,99 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/utime.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_utime</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_utime</h2>
|
||||
<p>The f_utime function changes the timestamp of a file or sub-directory.</p>
|
||||
<pre>
|
||||
FRESULT f_utime (
|
||||
const TCHAR* <span class="arg">path</span>, <span class="c">/* [IN] Object name */</span>
|
||||
const FILINFO* <span class="arg">fno</span> <span class="c">/* [IN] Time and data to be set */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>path</dt>
|
||||
<dd>Pointer to the null-terminated string that specifies an <a href="filename.html">object</a> to be changed.</dd>
|
||||
<dt>fno</dt>
|
||||
<dd>Pointer to the file information structure that has a timestamp to be set in member fdate and ftime. Do not care any other members.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#nr">FR_NOT_READY</a>,
|
||||
<a href="rc.html#ok">FR_NO_FILE</a>,
|
||||
<a href="rc.html#np">FR_NO_PATH</a>,
|
||||
<a href="rc.html#in">FR_INVALID_NAME</a>,
|
||||
<a href="rc.html#wp">FR_WRITE_PROTECTED</a>,
|
||||
<a href="rc.html#id">FR_INVALID_DRIVE</a>,
|
||||
<a href="rc.html#ne">FR_NOT_ENABLED</a>,
|
||||
<a href="rc.html#ns">FR_NO_FILESYSTEM</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>,
|
||||
<a href="rc.html#nc">FR_NOT_ENOUGH_CORE</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The <tt>f_utime</tt> function changes the timestamp of a file or sub-directory</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para use">
|
||||
<h4>Example</h4>
|
||||
<pre>
|
||||
FRESULT set_timestamp (
|
||||
char *obj, <span class="c">/* Pointer to the file name */</span>
|
||||
int year,
|
||||
int month,
|
||||
int mday,
|
||||
int hour,
|
||||
int min,
|
||||
int sec
|
||||
)
|
||||
{
|
||||
FILINFO fno;
|
||||
|
||||
fno.fdate = (WORD)(((year - 1980) * 512U) | month * 32U | mday);
|
||||
fno.ftime = (WORD)(hour * 2048U | min * 32U | sec / 2U);
|
||||
|
||||
return <em>f_utime</em>(obj, &fno);
|
||||
}
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt> and <tt>FF_USE_CHMOD == 1</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="stat.html">f_stat</a>, <a href="sfileinfo.html">FILINFO</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,74 @@
|
|||
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
|
||||
<html lang="en">
|
||||
<head>
|
||||
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
|
||||
<meta http-equiv="Content-Style-Type" content="text/css">
|
||||
<link rel="up" title="FatFs" href="../00index_e.html">
|
||||
<link rel="alternate" hreflang="ja" title="Japanese" href="../ja/write.html">
|
||||
<link rel="stylesheet" href="../css_e.css" type="text/css" media="screen" title="ELM Default">
|
||||
<title>FatFs - f_write</title>
|
||||
</head>
|
||||
|
||||
<body>
|
||||
|
||||
<div class="para func">
|
||||
<h2>f_write</h2>
|
||||
<p>The f_write writes data to a file.</p>
|
||||
<pre>
|
||||
FRESULT f_write (
|
||||
FIL* <span class="arg">fp</span>, <span class="c">/* [IN] Pointer to the file object structure */</span>
|
||||
const void* <span class="arg">buff</span>, <span class="c">/* [IN] Pointer to the data to be written */</span>
|
||||
UINT <span class="arg">btw</span>, <span class="c">/* [IN] Number of bytes to write */</span>
|
||||
UINT* <span class="arg">bw</span> <span class="c">/* [OUT] Pointer to the variable to return number of bytes written */</span>
|
||||
);
|
||||
</pre>
|
||||
</div>
|
||||
|
||||
<div class="para arg">
|
||||
<h4>Parameters</h4>
|
||||
<dl class="par">
|
||||
<dt>fp</dt>
|
||||
<dd>Pointer to the open file object structure.</dd>
|
||||
<dt>buff</dt>
|
||||
<dd>Pointer to the data to be written.</dd>
|
||||
<dt>btw</dt>
|
||||
<dd>Specifies number of bytes to write in range of <tt>UINT</tt> type.</dd>
|
||||
<dt>bw</dt>
|
||||
<dd>Pointer to the <tt>UINT</tt> variable to return the number of bytes written. This value is always valid after the function call regardless of the return value.</dd>
|
||||
</dl>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ret">
|
||||
<h4>Return Values</h4>
|
||||
<p>
|
||||
<a href="rc.html#ok">FR_OK</a>,
|
||||
<a href="rc.html#de">FR_DISK_ERR</a>,
|
||||
<a href="rc.html#ie">FR_INT_ERR</a>,
|
||||
<a href="rc.html#dn">FR_DENIED</a>,
|
||||
<a href="rc.html#io">FR_INVALID_OBJECT</a>,
|
||||
<a href="rc.html#tm">FR_TIMEOUT</a>
|
||||
</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para desc">
|
||||
<h4>Description</h4>
|
||||
<p>The function starts to write data to the file at the position pointed by the read/write pointer. The read/write pointer advances as number of bytes written. After the function succeeded, <tt class="arg">*bw</tt> should be checked to detect the disk full. In case of <tt class="arg">*bw</tt> < <tt class="arg">btw</tt>, it means the volume got full during the write operation. The function can take a time when the volume is full or close to full.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para comp">
|
||||
<h4>QuickInfo</h4>
|
||||
<p>Available when <tt>FF_FS_READONLY == 0</tt>.</p>
|
||||
</div>
|
||||
|
||||
|
||||
<div class="para ref">
|
||||
<h4>See Also</h4>
|
||||
<p><tt><a href="open.html">f_open</a>, <a href="read.html">f_read</a>, <a href="putc.html">fputc</a>, <a href="puts.html">fputs</a>, <a href="printf.html">fprintf</a>, <a href="close.html">f_close</a>, <a href="sfile.html">FIL</a></tt></p>
|
||||
</div>
|
||||
|
||||
<p class="foot"><a href="../00index_e.html">Return</a></p>
|
||||
</body>
|
||||
</html>
|
||||
|
|
@ -0,0 +1,44 @@
|
|||
/*------------------------------------------------------------/
|
||||
/ Open or create a file in append mode
|
||||
/ (This function was sperseded by FA_OPEN_APPEND flag at FatFs R0.12a)
|
||||
/------------------------------------------------------------*/
|
||||
|
||||
FRESULT open_append (
|
||||
FIL* fp, /* [OUT] File object to create */
|
||||
const char* path /* [IN] File name to be opened */
|
||||
)
|
||||
{
|
||||
FRESULT fr;
|
||||
|
||||
/* Opens an existing file. If not exist, creates a new file. */
|
||||
fr = f_open(fp, path, FA_WRITE | FA_OPEN_ALWAYS);
|
||||
if (fr == FR_OK) {
|
||||
/* Seek to end of the file to append data */
|
||||
fr = f_lseek(fp, f_size(fp));
|
||||
if (fr != FR_OK)
|
||||
f_close(fp);
|
||||
}
|
||||
return fr;
|
||||
}
|
||||
|
||||
|
||||
int main (void)
|
||||
{
|
||||
FRESULT fr;
|
||||
FATFS fs;
|
||||
FIL fil;
|
||||
|
||||
/* Open or create a log file and ready to append */
|
||||
f_mount(&fs, "", 0);
|
||||
fr = open_append(&fil, "logfile.txt");
|
||||
if (fr != FR_OK) return 1;
|
||||
|
||||
/* Append a line */
|
||||
f_printf(&fil, "%02u/%02u/%u, %2u:%02u\n", Mday, Mon, Year, Hour, Min);
|
||||
|
||||
/* Close the file */
|
||||
f_close(&fil);
|
||||
|
||||
return 0;
|
||||
}
|
||||
|
||||
|
|
@ -0,0 +1,68 @@
|
|||
/*------------------------------------------------------------/
|
||||
/ Remove all contents of a directory
|
||||
/ This function works regardless of FF_FS_RPATH.
|
||||
/------------------------------------------------------------*/
|
||||
|
||||
|
||||
FILINFO fno;
|
||||
|
||||
FRESULT empty_directory (
|
||||
char* path /* Working buffer filled with start directory */
|
||||
)
|
||||
{
|
||||
UINT i, j;
|
||||
FRESULT fr;
|
||||
DIR dir;
|
||||
|
||||
fr = f_opendir(&dir, path);
|
||||
if (fr == FR_OK) {
|
||||
for (i = 0; path[i]; i++) ;
|
||||
path[i++] = '/';
|
||||
for (;;) {
|
||||
fr = f_readdir(&dir, &fno);
|
||||
if (fr != FR_OK || !fno.fname[0]) break;
|
||||
if (_FS_RPATH && fno.fname[0] == '.') continue;
|
||||
j = 0;
|
||||
do
|
||||
path[i+j] = fno.fname[j];
|
||||
while (fno.fname[j++]);
|
||||
if (fno.fattrib & AM_DIR) {
|
||||
fr = empty_directory(path);
|
||||
if (fr != FR_OK) break;
|
||||
}
|
||||
fr = f_unlink(path);
|
||||
if (fr != FR_OK) break;
|
||||
}
|
||||
path[--i] = '\0';
|
||||
closedir(&dir);
|
||||
}
|
||||
|
||||
return fr;
|
||||
}
|
||||
|
||||
|
||||
|
||||
int main (void)
|
||||
{
|
||||
FRESULT fr;
|
||||
FATFS fs;
|
||||
char buff[256]; /* Working buffer */
|
||||
|
||||
|
||||
|
||||
f_mount(&fs, "", 0);
|
||||
|
||||
strcpy(buff, "/"); /* Directory to be emptied */
|
||||
fr = empty_directory(buff);
|
||||
|
||||
if (fr) {
|
||||
printf("Function failed. (%u)\n", fr);
|
||||
return fr;
|
||||
} else {
|
||||
printf("All contents in the %s are successfully removed.\n", buff);
|
||||
return 0;
|
||||
}
|
||||
}
|
||||
|
||||
|
||||
|
||||
109
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/app3.c
Normal file
109
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/app3.c
Normal file
|
|
@ -0,0 +1,109 @@
|
|||
/*----------------------------------------------------------------------/
|
||||
/ Allocate a contiguous area to the file
|
||||
/-----------------------------------------------------------------------/
|
||||
/ This function checks if the file is contiguous with desired size.
|
||||
/ If not, a block of contiguous sectors is allocated to the file.
|
||||
/ If the file has been opened without FA_WRITE flag, it only checks if
|
||||
/ the file is contiguous and returns the resulut.
|
||||
/-----------------------------------------------------------------------/
|
||||
/ This function can work with FatFs R0.09 - R0.11a.
|
||||
/ It is incompatible with R0.12+. Use f_expand function instead.
|
||||
/----------------------------------------------------------------------*/
|
||||
|
||||
/* Declarations of FatFs internal functions accessible from applications.
|
||||
/ This is intended to be used for disk checking/fixing or dirty hacks :-) */
|
||||
DWORD clust2sect (FATFS* fs, DWORD clst);
|
||||
DWORD get_fat (FATFS* fs, DWORD clst);
|
||||
FRESULT put_fat (FATFS* fs, DWORD clst, DWORD val);
|
||||
|
||||
|
||||
DWORD allocate_contiguous_clusters ( /* Returns the first sector in LBA (0:error or not contiguous) */
|
||||
FIL* fp, /* Pointer to the open file object */
|
||||
DWORD len /* Number of bytes to allocate */
|
||||
)
|
||||
{
|
||||
DWORD csz, tcl, ncl, ccl, cl;
|
||||
|
||||
|
||||
if (f_lseek(fp, 0) || !len) /* Check if the given parameters are valid */
|
||||
return 0;
|
||||
csz = 512UL * fp->fs->csize; /* Cluster size in unit of byte (assuming 512 bytes/sector) */
|
||||
tcl = (len + csz - 1) / csz; /* Total number of clusters required */
|
||||
len = tcl * csz; /* Round-up file size to the cluster boundary */
|
||||
|
||||
/* Check if the existing cluster chain is contiguous */
|
||||
if (len == fp->fsize) {
|
||||
ncl = 0; ccl = fp->sclust;
|
||||
do {
|
||||
cl = get_fat(fp->fs, ccl); /* Get the cluster status */
|
||||
if (cl + 1 < 3) return 0; /* Hard error? */
|
||||
if (cl != ccl + 1 && cl < fp->fs->n_fatent) break; /* Not contiguous? */
|
||||
ccl = cl;
|
||||
} while (++ncl < tcl);
|
||||
if (ncl == tcl) /* Is the file contiguous? */
|
||||
return clust2sect(fp->fs, fp->sclust); /* File is contiguous. Return the start sector */
|
||||
}
|
||||
|
||||
/* File is not contiguous */
|
||||
#if _FS_READONLY
|
||||
return 0; /* Exit if in read-only cfg. */
|
||||
#else
|
||||
if (!(fp->flag & FA_WRITE)) return 0; /* Exit if the file object is for read-only */
|
||||
|
||||
if (f_truncate(fp)) return 0; /* Remove the non-contiguous chain */
|
||||
|
||||
/* Find a free contiguous area */
|
||||
ccl = cl = 2; ncl = 0;
|
||||
do {
|
||||
if (cl >= fp->fs->n_fatent) return 0; /* No contiguous area is found. */
|
||||
if (get_fat(fp->fs, cl)) { /* Encounterd a cluster in use */
|
||||
do { /* Skip the block of used clusters */
|
||||
cl++;
|
||||
if (cl >= fp->fs->n_fatent) return 0; /* No contiguous area is found. */
|
||||
} while (get_fat(fp->fs, cl));
|
||||
ccl = cl; ncl = 0;
|
||||
}
|
||||
cl++; ncl++;
|
||||
} while (ncl < tcl);
|
||||
|
||||
/* Create a contiguous cluster chain */
|
||||
fp->fs->last_clust = ccl - 1;
|
||||
if (f_lseek(fp, len)) return 0;
|
||||
|
||||
return clust2sect(fp->fs, fp->sclust); /* Return file start sector */
|
||||
#endif
|
||||
}
|
||||
|
||||
|
||||
int main (void)
|
||||
{
|
||||
FRESULT fr;
|
||||
DRESULT dr;
|
||||
FATFS fs;
|
||||
FIL fil;
|
||||
DWORD org;
|
||||
|
||||
|
||||
/* Open or create a file to write */
|
||||
f_mount(&fs, "", 0);
|
||||
fr = f_open(&fil, "fastrec.log", FA_READ | FA_WRITE | FA_OPEN_ALWAYS);
|
||||
if (fr) return 1;
|
||||
|
||||
/* Check if the file is 256MB in size and occupies a contiguous area.
|
||||
/ If not, a contiguous area will be re-allocated to the file. */
|
||||
org = allocate_contiguous_clusters(&fil, 0x10000000);
|
||||
if (!org) {
|
||||
printf("Function failed due to any error or insufficient contiguous area.\n");
|
||||
f_close(&fil);
|
||||
return 1;
|
||||
}
|
||||
|
||||
/* Now you can read/write the file without filesystem layer. */
|
||||
...
|
||||
dr = disk_write(fil.fs->drv, Buff, org, 1024); /* Write 512KiB from top of the file */
|
||||
...
|
||||
|
||||
f_close(&fil);
|
||||
return 0;
|
||||
}
|
||||
|
||||
311
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/app4.c
Normal file
311
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/app4.c
Normal file
|
|
@ -0,0 +1,311 @@
|
|||
/*----------------------------------------------------------------------/
|
||||
/ Low level disk I/O module function checker /
|
||||
/-----------------------------------------------------------------------/
|
||||
/ WARNING: The data on the target drive will be lost!
|
||||
*/
|
||||
|
||||
#include <stdio.h>
|
||||
#include <string.h>
|
||||
#include "ff.h" /* Declarations of sector size */
|
||||
#include "diskio.h" /* Declarations of disk functions */
|
||||
|
||||
|
||||
static
|
||||
DWORD pn ( /* Pseudo random number generator */
|
||||
DWORD pns /* 0:Initialize, !0:Read */
|
||||
)
|
||||
{
|
||||
static DWORD lfsr;
|
||||
UINT n;
|
||||
|
||||
|
||||
if (pns) {
|
||||
lfsr = pns;
|
||||
for (n = 0; n < 32; n++) pn(0);
|
||||
}
|
||||
if (lfsr & 1) {
|
||||
lfsr >>= 1;
|
||||
lfsr ^= 0x80200003;
|
||||
} else {
|
||||
lfsr >>= 1;
|
||||
}
|
||||
return lfsr;
|
||||
}
|
||||
|
||||
|
||||
int test_diskio (
|
||||
BYTE pdrv, /* Physical drive number to be checked (all data on the drive will be lost) */
|
||||
UINT ncyc, /* Number of test cycles */
|
||||
DWORD* buff, /* Pointer to the working buffer */
|
||||
UINT sz_buff /* Size of the working buffer in unit of byte */
|
||||
)
|
||||
{
|
||||
UINT n, cc, ns;
|
||||
DWORD sz_drv, lba, lba2, sz_eblk, pns = 1;
|
||||
WORD sz_sect;
|
||||
BYTE *pbuff = (BYTE*)buff;
|
||||
DSTATUS ds;
|
||||
DRESULT dr;
|
||||
|
||||
|
||||
printf("test_diskio(%u, %u, 0x%08X, 0x%08X)\n", pdrv, ncyc, (UINT)buff, sz_buff);
|
||||
|
||||
if (sz_buff < _MAX_SS + 4) {
|
||||
printf("Insufficient work area to run program.\n");
|
||||
return 1;
|
||||
}
|
||||
|
||||
for (cc = 1; cc <= ncyc; cc++) {
|
||||
printf("**** Test cycle %u of %u start ****\n", cc, ncyc);
|
||||
|
||||
printf(" disk_initalize(%u)", pdrv);
|
||||
ds = disk_initialize(pdrv);
|
||||
if (ds & STA_NOINIT) {
|
||||
printf(" - failed.\n");
|
||||
return 2;
|
||||
} else {
|
||||
printf(" - ok.\n");
|
||||
}
|
||||
|
||||
printf("**** Get drive size ****\n");
|
||||
printf(" disk_ioctl(%u, GET_SECTOR_COUNT, 0x%08X)", pdrv, (UINT)&sz_drv);
|
||||
sz_drv = 0;
|
||||
dr = disk_ioctl(pdrv, GET_SECTOR_COUNT, &sz_drv);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 3;
|
||||
}
|
||||
if (sz_drv < 128) {
|
||||
printf("Failed: Insufficient drive size to test.\n");
|
||||
return 4;
|
||||
}
|
||||
printf(" Number of sectors on the drive %u is %lu.\n", pdrv, sz_drv);
|
||||
|
||||
#if FF_MAX_SS != FF_MIN_SS
|
||||
printf("**** Get sector size ****\n");
|
||||
printf(" disk_ioctl(%u, GET_SECTOR_SIZE, 0x%X)", pdrv, (UINT)&sz_sect);
|
||||
sz_sect = 0;
|
||||
dr = disk_ioctl(pdrv, GET_SECTOR_SIZE, &sz_sect);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 5;
|
||||
}
|
||||
printf(" Size of sector is %u bytes.\n", sz_sect);
|
||||
#else
|
||||
sz_sect = FF_MAX_SS;
|
||||
#endif
|
||||
|
||||
printf("**** Get block size ****\n");
|
||||
printf(" disk_ioctl(%u, GET_BLOCK_SIZE, 0x%X)", pdrv, (UINT)&sz_eblk);
|
||||
sz_eblk = 0;
|
||||
dr = disk_ioctl(pdrv, GET_BLOCK_SIZE, &sz_eblk);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
}
|
||||
if (dr == RES_OK || sz_eblk >= 2) {
|
||||
printf(" Size of the erase block is %lu sectors.\n", sz_eblk);
|
||||
} else {
|
||||
printf(" Size of the erase block is unknown.\n");
|
||||
}
|
||||
|
||||
/* Single sector write test */
|
||||
printf("**** Single sector write test 1 ****\n");
|
||||
lba = 0;
|
||||
for (n = 0, pn(pns); n < sz_sect; n++) pbuff[n] = (BYTE)pn(0);
|
||||
printf(" disk_write(%u, 0x%X, %lu, 1)", pdrv, (UINT)pbuff, lba);
|
||||
dr = disk_write(pdrv, pbuff, lba, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 6;
|
||||
}
|
||||
printf(" disk_ioctl(%u, CTRL_SYNC, NULL)", pdrv);
|
||||
dr = disk_ioctl(pdrv, CTRL_SYNC, 0);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 7;
|
||||
}
|
||||
memset(pbuff, 0, sz_sect);
|
||||
printf(" disk_read(%u, 0x%X, %lu, 1)", pdrv, (UINT)pbuff, lba);
|
||||
dr = disk_read(pdrv, pbuff, lba, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 8;
|
||||
}
|
||||
for (n = 0, pn(pns); n < sz_sect && pbuff[n] == (BYTE)pn(0); n++) ;
|
||||
if (n == sz_sect) {
|
||||
printf(" Data matched.\n");
|
||||
} else {
|
||||
printf("Failed: Read data differs from the data written.\n");
|
||||
return 10;
|
||||
}
|
||||
pns++;
|
||||
|
||||
printf("**** Multiple sector write test ****\n");
|
||||
lba = 1; ns = sz_buff / sz_sect;
|
||||
if (ns > 4) ns = 4;
|
||||
for (n = 0, pn(pns); n < (UINT)(sz_sect * ns); n++) pbuff[n] = (BYTE)pn(0);
|
||||
printf(" disk_write(%u, 0x%X, %lu, %u)", pdrv, (UINT)pbuff, lba, ns);
|
||||
dr = disk_write(pdrv, pbuff, lba, ns);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 11;
|
||||
}
|
||||
printf(" disk_ioctl(%u, CTRL_SYNC, NULL)", pdrv);
|
||||
dr = disk_ioctl(pdrv, CTRL_SYNC, 0);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 12;
|
||||
}
|
||||
memset(pbuff, 0, sz_sect * ns);
|
||||
printf(" disk_read(%u, 0x%X, %lu, %u)", pdrv, (UINT)pbuff, lba, ns);
|
||||
dr = disk_read(pdrv, pbuff, lba, ns);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 13;
|
||||
}
|
||||
for (n = 0, pn(pns); n < (UINT)(sz_sect * ns) && pbuff[n] == (BYTE)pn(0); n++) ;
|
||||
if (n == (UINT)(sz_sect * ns)) {
|
||||
printf(" Data matched.\n");
|
||||
} else {
|
||||
printf("Failed: Read data differs from the data written.\n");
|
||||
return 14;
|
||||
}
|
||||
pns++;
|
||||
|
||||
printf("**** Single sector write test (misaligned address) ****\n");
|
||||
lba = 5;
|
||||
for (n = 0, pn(pns); n < sz_sect; n++) pbuff[n+3] = (BYTE)pn(0);
|
||||
printf(" disk_write(%u, 0x%X, %lu, 1)", pdrv, (UINT)(pbuff+3), lba);
|
||||
dr = disk_write(pdrv, pbuff+3, lba, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 15;
|
||||
}
|
||||
printf(" disk_ioctl(%u, CTRL_SYNC, NULL)", pdrv);
|
||||
dr = disk_ioctl(pdrv, CTRL_SYNC, 0);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 16;
|
||||
}
|
||||
memset(pbuff+5, 0, sz_sect);
|
||||
printf(" disk_read(%u, 0x%X, %lu, 1)", pdrv, (UINT)(pbuff+5), lba);
|
||||
dr = disk_read(pdrv, pbuff+5, lba, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 17;
|
||||
}
|
||||
for (n = 0, pn(pns); n < sz_sect && pbuff[n+5] == (BYTE)pn(0); n++) ;
|
||||
if (n == sz_sect) {
|
||||
printf(" Data matched.\n");
|
||||
} else {
|
||||
printf("Failed: Read data differs from the data written.\n");
|
||||
return 18;
|
||||
}
|
||||
pns++;
|
||||
|
||||
printf("**** 4GB barrier test ****\n");
|
||||
if (sz_drv >= 128 + 0x80000000 / (sz_sect / 2)) {
|
||||
lba = 6; lba2 = lba + 0x80000000 / (sz_sect / 2);
|
||||
for (n = 0, pn(pns); n < (UINT)(sz_sect * 2); n++) pbuff[n] = (BYTE)pn(0);
|
||||
printf(" disk_write(%u, 0x%X, %lu, 1)", pdrv, (UINT)pbuff, lba);
|
||||
dr = disk_write(pdrv, pbuff, lba, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 19;
|
||||
}
|
||||
printf(" disk_write(%u, 0x%X, %lu, 1)", pdrv, (UINT)(pbuff+sz_sect), lba2);
|
||||
dr = disk_write(pdrv, pbuff+sz_sect, lba2, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 20;
|
||||
}
|
||||
printf(" disk_ioctl(%u, CTRL_SYNC, NULL)", pdrv);
|
||||
dr = disk_ioctl(pdrv, CTRL_SYNC, 0);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 21;
|
||||
}
|
||||
memset(pbuff, 0, sz_sect * 2);
|
||||
printf(" disk_read(%u, 0x%X, %lu, 1)", pdrv, (UINT)pbuff, lba);
|
||||
dr = disk_read(pdrv, pbuff, lba, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 22;
|
||||
}
|
||||
printf(" disk_read(%u, 0x%X, %lu, 1)", pdrv, (UINT)(pbuff+sz_sect), lba2);
|
||||
dr = disk_read(pdrv, pbuff+sz_sect, lba2, 1);
|
||||
if (dr == RES_OK) {
|
||||
printf(" - ok.\n");
|
||||
} else {
|
||||
printf(" - failed.\n");
|
||||
return 23;
|
||||
}
|
||||
for (n = 0, pn(pns); pbuff[n] == (BYTE)pn(0) && n < (UINT)(sz_sect * 2); n++) ;
|
||||
if (n == (UINT)(sz_sect * 2)) {
|
||||
printf(" Data matched.\n");
|
||||
} else {
|
||||
printf("Failed: Read data differs from the data written.\n");
|
||||
return 24;
|
||||
}
|
||||
} else {
|
||||
printf(" Test skipped.\n");
|
||||
}
|
||||
pns++;
|
||||
|
||||
printf("**** Test cycle %u of %u completed ****\n\n", cc, ncyc);
|
||||
}
|
||||
|
||||
return 0;
|
||||
}
|
||||
|
||||
|
||||
|
||||
int main (int argc, char* argv[])
|
||||
{
|
||||
int rc;
|
||||
DWORD buff[FF_MAX_SS]; /* Working buffer (4 sector in size) */
|
||||
|
||||
/* Check function/compatibility of the physical drive #0 */
|
||||
rc = test_diskio(0, 3, buff, sizeof buff);
|
||||
|
||||
if (rc) {
|
||||
printf("Sorry the function/compatibility test failed. (rc=%d)\nFatFs will not work with this disk driver.\n", rc);
|
||||
} else {
|
||||
printf("Congratulations! The disk driver works well.\n");
|
||||
}
|
||||
|
||||
return rc;
|
||||
}
|
||||
|
||||
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f1.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f1.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 1.4 KiB |
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f2.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f2.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 1.4 KiB |
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f3.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f3.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 1 KiB |
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f4.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f4.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 2.3 KiB |
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f5.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f5.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 2.4 KiB |
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f6.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f6.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 1.4 KiB |
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f7.png
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/f7.png
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 25 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 22 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 5.4 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 3.8 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 3.7 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 2.3 KiB |
Binary file not shown.
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/mkfs.xls
Normal file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/res/mkfs.xls
Normal file
Binary file not shown.
Binary file not shown.
|
After Width: | Height: | Size: 17 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 68 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 8 KiB |
Binary file not shown.
|
After Width: | Height: | Size: 2.9 KiB |
206
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/updates.txt
Normal file
206
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/doc/updates.txt
Normal file
|
|
@ -0,0 +1,206 @@
|
|||
R0.13 (May 21, 2017)
|
||||
Changed heading character of configuration keywords "_" to "FF_".
|
||||
Removed ASCII-only configuration, FF_CODE_PAGE = 1. Use FF_CODE_PAGE = 437 instead.
|
||||
Added f_setcp(), run-time code page configuration. (FF_CODE_PAGE = 0)
|
||||
Improved cluster allocation time on stretch a deep buried cluster chain.
|
||||
Improved processing time of f_mkdir() with large cluster size by using FF_USE_LFN = 3.
|
||||
Improved NoFatChain flag of the fragmented file to be set after it is truncated and got contiguous.
|
||||
Fixed archive attribute is left not set when a file on the exFAT volume is renamed. (appeared at R0.12)
|
||||
Fixed exFAT FAT entry can be collapsed when write or lseek operation to the existing file is done. (appeared at R0.12c)
|
||||
Fixed creating a file can fail when a new cluster allocation to the exFAT directory occures. (appeared at R0.12c)
|
||||
|
||||
R0.12c (March 04, 2017)
|
||||
Improved write throughput at the fragmented file on the exFAT volume.
|
||||
Made memory usage for exFAT be able to be reduced as decreasing _MAX_LFN.
|
||||
Fixed successive f_getfree() can return wrong count on the FAT12/16 volume. (appeared at R0.12)
|
||||
Fixed configuration option _VOLUMES cannot be set 10. (appeared at R0.10c)
|
||||
|
||||
R0.12b (September 4, 2016)
|
||||
Made f_rename() be able to rename objects with the same name but case.
|
||||
Fixed an error in the case conversion teble of code page 866. (ff.c)
|
||||
Fixed writing data is truncated at the file offset 4GiB on the exFAT volume. (appeared at R0.12)
|
||||
Fixed creating a file in the root directory of exFAT volume can fail. (appeared at R0.12)
|
||||
Fixed f_mkfs() creating exFAT volume with too small cluster size can collapse unallocated memory. (appeared at R0.12a)
|
||||
Fixed wrong object name can be returned when read directory at Unicode cfg. (appeared at R0.12)
|
||||
Fixed large file allocation/removing on the exFAT volume collapses allocation bitmap. (appeared at R0.12)
|
||||
Fixed some internal errors in f_expand() and f_lseek(). (appeared at R0.12)
|
||||
|
||||
R0.12a (July 10, 2016)
|
||||
Added support for creating exFAT volume with some changes of f_mkfs().
|
||||
Added a file open method FA_OPEN_APPEND. An f_lseek() following f_open() is no longer needed.
|
||||
f_forward() is available regardless of _FS_TINY.
|
||||
Fixed f_mkfs() creates wrong volume. (appeared at R0.12)
|
||||
Fixed wrong memory read in create_name(). (appeared at R0.12)
|
||||
Fixed compilation fails at some configurations, _USE_FASTSEEK and _USE_FORWARD.
|
||||
|
||||
R0.12 (April 12, 2016)
|
||||
Added support for exFAT file system. (_FS_EXFAT)
|
||||
Added f_expand(). (_USE_EXPAND)
|
||||
Changed some members in FINFO structure and behavior of f_readdir().
|
||||
Added an option _USE_CHMOD and removed an option _WORD_ACCESS.
|
||||
Fixed errors in the case conversion teble of Unicode (cc*.c).
|
||||
|
||||
R0.11a (September 5, 2015)
|
||||
Fixed wrong media change can lead a deadlock at thread-safe configuration.
|
||||
Added code page 771, 860, 861, 863, 864, 865 and 869. (_CODE_PAGE)
|
||||
Removed some code pages actually not exist on the standard systems. (_CODE_PAGE)
|
||||
Fixed errors in the case conversion teble of code page 437 and 850 (ff.c).
|
||||
Fixed errors in the case conversion teble of Unicode (cc*.c).
|
||||
|
||||
R0.11 (February 9, 2015)
|
||||
Added f_findfirst() and f_findnext(). (_USE_FIND)
|
||||
Fixed f_unlink() does not remove cluster chain of the file. (appeared at R0.10c)
|
||||
Fixed _FS_NORTC option does not work properly. (appeared at R0.10c)
|
||||
|
||||
R0.10c (November 9, 2014)
|
||||
Added a configuration option for the platforms without RTC. (_FS_NORTC)
|
||||
Fixed volume label created by Mac OS X cannot be retrieved with f_getlabel(). (appeared at R0.09b)
|
||||
Fixed a potential problem of FAT access that can appear on disk error.
|
||||
Fixed null pointer dereference on attempting to delete the root direcotry. (appeared at R0.08)
|
||||
|
||||
R0.10b (May 19, 2014)
|
||||
Fixed a hard error in the disk I/O layer can collapse the directory entry.
|
||||
Fixed LFN entry is not deleted on delete/rename an object with its lossy converted SFN. (appeared at R0.07)
|
||||
|
||||
R0.10a (January 15, 2014)
|
||||
Added arbitrary strings as drive number in the path name. (_STR_VOLUME_ID)
|
||||
Added an option for minimum sector size. (_MIN_SS)
|
||||
2nd argument of f_rename() can have a drive number and it will be ignored.
|
||||
Fixed f_mount() with forced mount fails when drive number is larger than 0. (appeared at R0.10)
|
||||
Fixed f_close() invalidates the file object without volume lock.
|
||||
Fixed volume lock is left acquired after return from f_closedir(). (appeared at R0.10)
|
||||
Fixed creation of a directory entry with LFN fails on too many SFN collisions. (appeared at R0.07)
|
||||
|
||||
R0.10 (October 2, 2013)
|
||||
Added an option for character encoding on the file. (_STRF_ENCODE)
|
||||
Added f_closedir().
|
||||
Added forced full FAT scan option for f_getfree(). (_FS_NOFSINFO)
|
||||
Added forced mount option with changes of f_mount().
|
||||
Improved behavior of volume auto detection.
|
||||
Improved write throughput of f_puts() and f_printf().
|
||||
Changed argument of f_chdrive(), f_mkfs(), disk_read() and disk_write().
|
||||
Fixed f_write() can be truncated when the file size is close to 4GB.
|
||||
Fixed f_open(), f_mkdir() and f_setlabel() can return incorrect result code on error.
|
||||
|
||||
R0.09b (January 24, 2013)
|
||||
Added f_getlabel() and f_setlabel(). (_USE_LABEL = 1)
|
||||
|
||||
R0.09a (August 27, 2012)
|
||||
Fixed assertion failure due to OS/2 EA on FAT12/16 volume.
|
||||
Changed file functions reject null object pointer to avoid crash.
|
||||
Changed option name _FS_SHARE to _FS_LOCK.
|
||||
|
||||
R0.09 (September 6, 2011)
|
||||
f_mkfs() supports multiple partition on a physical drive.
|
||||
Added f_fdisk(). (_MULTI_PARTITION = 2)
|
||||
|
||||
R0.08b (January 15, 2011)
|
||||
Fast seek function is also applied to f_read() and f_write().
|
||||
f_lseek() reports required table size on creating CLMP.
|
||||
Extended format syntax of f_printf().
|
||||
Ignores duplicated directory separators in given path names.
|
||||
|
||||
R0.08a (August 16, 2010)
|
||||
Added f_getcwd(). (_FS_RPATH = 2)
|
||||
Added sector erase function. (_USE_ERASE)
|
||||
Moved file lock semaphore table from fs object to the bss.
|
||||
Fixed a wrong directory entry is created on non-LFN cfg when the given name contains ';'.
|
||||
Fixed f_mkfs() creates wrong FAT32 volume.
|
||||
|
||||
R0.08 (May 15, 2010)
|
||||
Added a memory configuration option. (_USE_LFN)
|
||||
Added support of file lock. (_FS_SHARE)
|
||||
Added fast seek function. (_USE_FASTSEEK)
|
||||
Changed some types on the API, XCHAR->TCHAR.
|
||||
Changed fname member in the FILINFO structure on Unicode cfg.
|
||||
String functions support UTF-8 encoding files on Unicode cfg.
|
||||
|
||||
R0.07e (November 3, 2009)
|
||||
Separated out configuration options from ff.h to ffconf.h.
|
||||
Added a configuration option, _LFN_UNICODE.
|
||||
Fixed f_unlink() fails to remove a sub-dir on _FS_RPATH.
|
||||
Fixed name matching error on the 13 char boundary.
|
||||
Changed f_readdir() to return the SFN with always upper case on non-LFN cfg.
|
||||
|
||||
R0.07c (Junuary 21, 2009)
|
||||
Fixed f_unlink() may return FR_OK on error.
|
||||
Fixed wrong cache control in f_lseek().
|
||||
Added support of relative path.
|
||||
Added f_chdir().
|
||||
Added f_chdrive().
|
||||
Added proper case conversion to extended characters.
|
||||
|
||||
R0.07a (April 14, 2009)
|
||||
Separated out OS dependent code on re-entrant configuration.
|
||||
Added multiple sector size support.
|
||||
|
||||
R0.07 (April 1, 2009)
|
||||
Merged Tiny-FatFs into FatFs as a buffer configuration option.
|
||||
Added long file name support.
|
||||
Added multiple code page support.
|
||||
Added re-entrancy for multitask operation.
|
||||
Added auto cluster size selection to f_mkfs().
|
||||
Added rewind option to f_readdir().
|
||||
Changed result code of critical errors.
|
||||
Renamed string functions to avoid name collision.
|
||||
|
||||
R0.06 (April 1, 2008)
|
||||
Added f_forward. (Tiny-FatFs)
|
||||
Added string functions: fgets, fputc, fputs and fprintf.
|
||||
Improved performance of f_lseek on moving to the same or following cluster.
|
||||
|
||||
R0.05a (February 3, 2008)
|
||||
Added f_truncate.
|
||||
Added f_utime.
|
||||
Fixed off by one error at FAT sub-type determination.
|
||||
Fixed btr in f_read can be mistruncated.
|
||||
Fixed cached sector is left not flushed when create and close without write.
|
||||
|
||||
R0.05 (August 26, 2007)
|
||||
Changed arguments of f_read, f_write.
|
||||
Changed arguments of f_mkfs. (FatFs)
|
||||
Fixed f_mkfs on FAT32 creates incorrect FSInfo. (FatFs)
|
||||
Fixed f_mkdir on FAT32 creates incorrect directory. (FatFs)
|
||||
|
||||
R0.04b (May 5, 2007)
|
||||
Added _USE_NTFLAG option.
|
||||
Added FSInfo support.
|
||||
Fixed some problems corresponds to FAT32. (Tiny-FatFs)
|
||||
Fixed DBCS name can result FR_INVALID_NAME.
|
||||
Fixed short seek (<= csize) collapses the file object.
|
||||
|
||||
R0.04a (April 1, 2007)
|
||||
Supported multiple partitions on a plysical drive. (FatFs)
|
||||
Added minimization level 3.
|
||||
Added a capability of extending file size to f_lseek.
|
||||
Fixed an endian sensitive code in f_mkfs. (FatFs)
|
||||
Fixed a problem corresponds to FAT32 support. (Tiny-FatFs)
|
||||
|
||||
R0.04 (February 4, 2007)
|
||||
Supported multiple drive system. (FatFs)
|
||||
Changed some APIs for multiple drive system.
|
||||
Added f_mkfs. (FatFs)
|
||||
Added _USE_FAT32 option. (Tiny-FatFs)
|
||||
|
||||
R0.03a (December 11, 2006)
|
||||
Improved cluster scan algolithm to write files fast.
|
||||
Fixed f_mkdir creates incorrect directory on FAT32.
|
||||
|
||||
R0.03 (September 22, 2006)
|
||||
Added f_rename.
|
||||
Changed option _FS_MINIMUM to _FS_MINIMIZE.
|
||||
|
||||
R0.02a (June 10, 2006)
|
||||
Added a configuration option _FS_MINIMUM.
|
||||
|
||||
R0.02 (Jun 01, 2006)
|
||||
Added FAT12.
|
||||
Removed unbuffered mode.
|
||||
Fixed a problem on small (<32M) patition.
|
||||
|
||||
R0.01 (April 29, 2006)
|
||||
First release
|
||||
|
||||
R0.00 (February 26, 2006)
|
||||
Prototype (not released)
|
||||
|
||||
|
|
@ -0,0 +1,302 @@
|
|||
----------------------------------------------------------------------------
|
||||
Revision history of FatFs module
|
||||
----------------------------------------------------------------------------
|
||||
|
||||
R0.00 (February 26, 2006)
|
||||
|
||||
Prototype.
|
||||
|
||||
|
||||
|
||||
R0.01 (April 29, 2006)
|
||||
|
||||
The first release.
|
||||
|
||||
|
||||
|
||||
R0.02 (June 01, 2006)
|
||||
|
||||
Added FAT12 support.
|
||||
Removed unbuffered mode.
|
||||
Fixed a problem on small (<32M) partition.
|
||||
|
||||
|
||||
|
||||
R0.02a (June 10, 2006)
|
||||
|
||||
Added a configuration option (_FS_MINIMUM).
|
||||
|
||||
|
||||
|
||||
R0.03 (September 22, 2006)
|
||||
|
||||
Added f_rename().
|
||||
Changed option _FS_MINIMUM to _FS_MINIMIZE.
|
||||
|
||||
|
||||
|
||||
R0.03a (December 11, 2006)
|
||||
|
||||
Improved cluster scan algorithm to write files fast.
|
||||
Fixed f_mkdir() creates incorrect directory on FAT32.
|
||||
|
||||
|
||||
|
||||
R0.04 (February 04, 2007)
|
||||
|
||||
Added f_mkfs().
|
||||
Supported multiple drive system.
|
||||
Changed some interfaces for multiple drive system.
|
||||
Changed f_mountdrv() to f_mount().
|
||||
|
||||
|
||||
|
||||
R0.04a (April 01, 2007)
|
||||
|
||||
Supported multiple partitions on a physical drive.
|
||||
Added a capability of extending file size to f_lseek().
|
||||
Added minimization level 3.
|
||||
Fixed an endian sensitive code in f_mkfs().
|
||||
|
||||
|
||||
|
||||
R0.04b (May 05, 2007)
|
||||
|
||||
Added a configuration option _USE_NTFLAG.
|
||||
Added FSINFO support.
|
||||
Fixed DBCS name can result FR_INVALID_NAME.
|
||||
Fixed short seek (<= csize) collapses the file object.
|
||||
|
||||
|
||||
|
||||
R0.05 (August 25, 2007)
|
||||
|
||||
Changed arguments of f_read(), f_write() and f_mkfs().
|
||||
Fixed f_mkfs() on FAT32 creates incorrect FSINFO.
|
||||
Fixed f_mkdir() on FAT32 creates incorrect directory.
|
||||
|
||||
|
||||
|
||||
R0.05a (February 03, 2008)
|
||||
|
||||
Added f_truncate() and f_utime().
|
||||
Fixed off by one error at FAT sub-type determination.
|
||||
Fixed btr in f_read() can be mistruncated.
|
||||
Fixed cached sector is not flushed when create and close without write.
|
||||
|
||||
|
||||
|
||||
R0.06 (April 01, 2008)
|
||||
|
||||
Added fputc(), fputs(), fprintf() and fgets().
|
||||
Improved performance of f_lseek() on moving to the same or following cluster.
|
||||
|
||||
|
||||
|
||||
R0.07 (April 01, 2009)
|
||||
|
||||
Merged Tiny-FatFs as a configuration option. (_FS_TINY)
|
||||
Added long file name feature. (_USE_LFN)
|
||||
Added multiple code page feature. (_CODE_PAGE)
|
||||
Added re-entrancy for multitask operation. (_FS_REENTRANT)
|
||||
Added auto cluster size selection to f_mkfs().
|
||||
Added rewind option to f_readdir().
|
||||
Changed result code of critical errors.
|
||||
Renamed string functions to avoid name collision.
|
||||
|
||||
|
||||
|
||||
R0.07a (April 14, 2009)
|
||||
|
||||
Septemberarated out OS dependent code on reentrant cfg.
|
||||
Added multiple sector size feature.
|
||||
|
||||
|
||||
|
||||
R0.07c (June 21, 2009)
|
||||
|
||||
Fixed f_unlink() can return FR_OK on error.
|
||||
Fixed wrong cache control in f_lseek().
|
||||
Added relative path feature.
|
||||
Added f_chdir() and f_chdrive().
|
||||
Added proper case conversion to extended character.
|
||||
|
||||
|
||||
|
||||
R0.07e (November 03, 2009)
|
||||
|
||||
Septemberarated out configuration options from ff.h to ffconf.h.
|
||||
Fixed f_unlink() fails to remove a sub-directory on _FS_RPATH.
|
||||
Fixed name matching error on the 13 character boundary.
|
||||
Added a configuration option, _LFN_UNICODE.
|
||||
Changed f_readdir() to return the SFN with always upper case on non-LFN cfg.
|
||||
|
||||
|
||||
|
||||
R0.08 (May 15, 2010)
|
||||
|
||||
Added a memory configuration option. (_USE_LFN = 3)
|
||||
Added file lock feature. (_FS_SHARE)
|
||||
Added fast seek feature. (_USE_FASTSEEK)
|
||||
Changed some types on the API, XCHAR->TCHAR.
|
||||
Changed .fname in the FILINFO structure on Unicode cfg.
|
||||
String functions support UTF-8 encoding files on Unicode cfg.
|
||||
|
||||
|
||||
|
||||
R0.08a (August 16, 2010)
|
||||
|
||||
Added f_getcwd(). (_FS_RPATH = 2)
|
||||
Added sector erase feature. (_USE_ERASE)
|
||||
Moved file lock semaphore table from fs object to the bss.
|
||||
Fixed f_mkfs() creates wrong FAT32 volume.
|
||||
|
||||
|
||||
|
||||
R0.08b (January 15, 2011)
|
||||
|
||||
Fast seek feature is also applied to f_read() and f_write().
|
||||
f_lseek() reports required table size on creating CLMP.
|
||||
Extended format syntax of f_printf().
|
||||
Ignores duplicated directory separators in given path name.
|
||||
|
||||
|
||||
|
||||
R0.09 (September 06, 2011)
|
||||
|
||||
f_mkfs() supports multiple partition to complete the multiple partition feature.
|
||||
Added f_fdisk().
|
||||
|
||||
|
||||
|
||||
R0.09a (August 27, 2012)
|
||||
|
||||
Changed f_open() and f_opendir() reject null object pointer to avoid crash.
|
||||
Changed option name _FS_SHARE to _FS_LOCK.
|
||||
Fixed assertion failure due to OS/2 EA on FAT12/16 volume.
|
||||
|
||||
|
||||
|
||||
R0.09b (January 24, 2013)
|
||||
|
||||
Added f_setlabel() and f_getlabel().
|
||||
|
||||
|
||||
|
||||
R0.10 (October 02, 2013)
|
||||
|
||||
Added selection of character encoding on the file. (_STRF_ENCODE)
|
||||
Added f_closedir().
|
||||
Added forced full FAT scan for f_getfree(). (_FS_NOFSINFO)
|
||||
Added forced mount feature with changes of f_mount().
|
||||
Improved behavior of volume auto detection.
|
||||
Improved write throughput of f_puts() and f_printf().
|
||||
Changed argument of f_chdrive(), f_mkfs(), disk_read() and disk_write().
|
||||
Fixed f_write() can be truncated when the file size is close to 4GB.
|
||||
Fixed f_open(), f_mkdir() and f_setlabel() can return incorrect value on error.
|
||||
|
||||
|
||||
|
||||
R0.10a (January 15, 2014)
|
||||
|
||||
Added arbitrary strings as drive number in the path name. (_STR_VOLUME_ID)
|
||||
Added a configuration option of minimum sector size. (_MIN_SS)
|
||||
2nd argument of f_rename() can have a drive number and it will be ignored.
|
||||
Fixed f_mount() with forced mount fails when drive number is >= 1. (appeared at R0.10)
|
||||
Fixed f_close() invalidates the file object without volume lock.
|
||||
Fixed f_closedir() returns but the volume lock is left acquired. (appeared at R0.10)
|
||||
Fixed creation of an entry with LFN fails on too many SFN collisions. (appeared at R0.07)
|
||||
|
||||
|
||||
|
||||
R0.10b (May 19, 2014)
|
||||
|
||||
Fixed a hard error in the disk I/O layer can collapse the directory entry.
|
||||
Fixed LFN entry is not deleted when delete/rename an object with lossy converted SFN. (appeared at R0.07)
|
||||
|
||||
|
||||
|
||||
R0.10c (November 09, 2014)
|
||||
|
||||
Added a configuration option for the platforms without RTC. (_FS_NORTC)
|
||||
Changed option name _USE_ERASE to _USE_TRIM.
|
||||
Fixed volume label created by Mac OS X cannot be retrieved with f_getlabel(). (appeared at R0.09b)
|
||||
Fixed a potential problem of FAT access that can appear on disk error.
|
||||
Fixed null pointer dereference on attempting to delete the root direcotry. (appeared at R0.08)
|
||||
|
||||
|
||||
|
||||
R0.11 (February 09, 2015)
|
||||
|
||||
Added f_findfirst(), f_findnext() and f_findclose(). (_USE_FIND)
|
||||
Fixed f_unlink() does not remove cluster chain of the file. (appeared at R0.10c)
|
||||
Fixed _FS_NORTC option does not work properly. (appeared at R0.10c)
|
||||
|
||||
|
||||
|
||||
R0.11a (September 05, 2015)
|
||||
|
||||
Fixed wrong media change can lead a deadlock at thread-safe configuration.
|
||||
Added code page 771, 860, 861, 863, 864, 865 and 869. (_CODE_PAGE)
|
||||
Removed some code pages actually not exist on the standard systems. (_CODE_PAGE)
|
||||
Fixed errors in the case conversion teble of code page 437 and 850 (ff.c).
|
||||
Fixed errors in the case conversion teble of Unicode (cc*.c).
|
||||
|
||||
|
||||
|
||||
R0.12 (April 12, 2016)
|
||||
|
||||
Added support for exFAT file system. (_FS_EXFAT)
|
||||
Added f_expand(). (_USE_EXPAND)
|
||||
Changed some members in FINFO structure and behavior of f_readdir().
|
||||
Added an option _USE_CHMOD.
|
||||
Removed an option _WORD_ACCESS.
|
||||
Fixed errors in the case conversion table of Unicode (cc*.c).
|
||||
|
||||
|
||||
|
||||
R0.12a (July 10, 2016)
|
||||
|
||||
Added support for creating exFAT volume with some changes of f_mkfs().
|
||||
Added a file open method FA_OPEN_APPEND. An f_lseek() following f_open() is no longer needed.
|
||||
f_forward() is available regardless of _FS_TINY.
|
||||
Fixed f_mkfs() creates wrong volume. (appeared at R0.12)
|
||||
Fixed wrong memory read in create_name(). (appeared at R0.12)
|
||||
Fixed compilation fails at some configurations, _USE_FASTSEEK and _USE_FORWARD.
|
||||
|
||||
|
||||
|
||||
R0.12b (September 04, 2016)
|
||||
|
||||
Made f_rename() be able to rename objects with the same name but case.
|
||||
Fixed an error in the case conversion teble of code page 866. (ff.c)
|
||||
Fixed writing data is truncated at the file offset 4GiB on the exFAT volume. (appeared at R0.12)
|
||||
Fixed creating a file in the root directory of exFAT volume can fail. (appeared at R0.12)
|
||||
Fixed f_mkfs() creating exFAT volume with too small cluster size can collapse unallocated memory. (appeared at R0.12)
|
||||
Fixed wrong object name can be returned when read directory at Unicode cfg. (appeared at R0.12)
|
||||
Fixed large file allocation/removing on the exFAT volume collapses allocation bitmap. (appeared at R0.12)
|
||||
Fixed some internal errors in f_expand() and f_lseek(). (appeared at R0.12)
|
||||
|
||||
|
||||
|
||||
R0.12c (March 04, 2017)
|
||||
|
||||
Improved write throughput at the fragmented file on the exFAT volume.
|
||||
Made memory usage for exFAT be able to be reduced as decreasing _MAX_LFN.
|
||||
Fixed successive f_getfree() can return wrong count on the FAT12/16 volume. (appeared at R0.12)
|
||||
Fixed configuration option _VOLUMES cannot be set 10. (appeared at R0.10c)
|
||||
|
||||
|
||||
|
||||
R0.13 (May 21, 2017)
|
||||
|
||||
Changed heading character of configuration keywords "_" to "FF_".
|
||||
Removed ASCII-only configuration, FF_CODE_PAGE = 1. Use FF_CODE_PAGE = 437 instead.
|
||||
Added f_setcp(), run-time code page configuration. (FF_CODE_PAGE = 0)
|
||||
Improved cluster allocation time on stretch a deep buried cluster chain.
|
||||
Improved processing time of f_mkdir() with large cluster size by using FF_USE_LFN = 3.
|
||||
Improved NoFatChain flag of the fragmented file to be set after it is truncated and got contiguous.
|
||||
Fixed archive attribute is left not set when a file on the exFAT volume is renamed. (appeared at R0.12)
|
||||
Fixed exFAT FAT entry can be collapsed when write or lseek operation to the existing file is done. (appeared at R0.12c)
|
||||
Fixed creating a file can fail when a new cluster allocation to the exFAT directory occures. (appeared at R0.12c)
|
||||
|
||||
|
|
@ -0,0 +1,22 @@
|
|||
FatFs Module Source Files R0.13
|
||||
|
||||
|
||||
FILES
|
||||
|
||||
00readme.txt This file.
|
||||
00history.txt Revision history.
|
||||
ff.c FatFs module.
|
||||
ffconf.h Configuration file of FatFs module.
|
||||
ff.h Common include file for FatFs and application module.
|
||||
diskio.h Common include file for FatFs and disk I/O module.
|
||||
diskio.c An example of glue function to attach existing disk I/O module to FatFs.
|
||||
integer.h Integer type definitions for FatFs.
|
||||
ffunicode.c Optional Unicode utility functions.
|
||||
ffsystem.c An example of optional O/S related functions.
|
||||
|
||||
|
||||
Low level disk I/O module is not included in this archive because the FatFs
|
||||
module is only a generic file system layer and it does not depend on any specific
|
||||
storage device. You need to provide a low level disk I/O module written to
|
||||
control the storage device that attached to the target system.
|
||||
|
||||
269
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/_ffconf.h
Normal file
269
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/_ffconf.h
Normal file
|
|
@ -0,0 +1,269 @@
|
|||
/*---------------------------------------------------------------------------/
|
||||
/ FatFs - Configuration file
|
||||
/---------------------------------------------------------------------------*/
|
||||
|
||||
#define FFCONF_DEF 87030 /* Revision ID */
|
||||
|
||||
/*---------------------------------------------------------------------------/
|
||||
/ Function Configurations
|
||||
/---------------------------------------------------------------------------*/
|
||||
|
||||
#define FF_FS_READONLY 0
|
||||
/* This option switches read-only configuration. (0:Read/Write or 1:Read-only)
|
||||
/ Read-only configuration removes writing API functions, f_write(), f_sync(),
|
||||
/ f_unlink(), f_mkdir(), f_chmod(), f_rename(), f_truncate(), f_getfree()
|
||||
/ and optional writing functions as well. */
|
||||
|
||||
|
||||
#define FF_FS_MINIMIZE 0
|
||||
/* This option defines minimization level to remove some basic API functions.
|
||||
/
|
||||
/ 0: All basic functions are enabled.
|
||||
/ 1: f_stat(), f_getfree(), f_unlink(), f_mkdir(), f_truncate() and f_rename()
|
||||
/ are removed.
|
||||
/ 2: f_opendir(), f_readdir() and f_closedir() are removed in addition to 1.
|
||||
/ 3: f_lseek() function is removed in addition to 2. */
|
||||
|
||||
|
||||
#define FF_USE_STRFUNC 0
|
||||
/* This option switches string functions, f_gets(), f_putc(), f_puts() and f_printf().
|
||||
/
|
||||
/ 0: Disable string functions.
|
||||
/ 1: Enable without LF-CRLF conversion.
|
||||
/ 2: Enable with LF-CRLF conversion. */
|
||||
|
||||
|
||||
#define FF_USE_FIND 0
|
||||
/* This option switches filtered directory read functions, f_findfirst() and
|
||||
/ f_findnext(). (0:Disable, 1:Enable 2:Enable with matching altname[] too) */
|
||||
|
||||
|
||||
#define FF_USE_MKFS 0
|
||||
/* This option switches f_mkfs() function. (0:Disable or 1:Enable) */
|
||||
|
||||
|
||||
#define FF_USE_FASTSEEK 0
|
||||
/* This option switches fast seek function. (0:Disable or 1:Enable) */
|
||||
|
||||
|
||||
#define FF_USE_EXPAND 0
|
||||
/* This option switches f_expand function. (0:Disable or 1:Enable) */
|
||||
|
||||
|
||||
#define FF_USE_CHMOD 0
|
||||
/* This option switches attribute manipulation functions, f_chmod() and f_utime().
|
||||
/ (0:Disable or 1:Enable) Also FF_FS_READONLY needs to be 0 to enable this option. */
|
||||
|
||||
|
||||
#define FF_USE_LABEL 0
|
||||
/* This option switches volume label functions, f_getlabel() and f_setlabel().
|
||||
/ (0:Disable or 1:Enable) */
|
||||
|
||||
|
||||
#define FF_USE_FORWARD 0
|
||||
/* This option switches f_forward() function. (0:Disable or 1:Enable) */
|
||||
|
||||
|
||||
/*---------------------------------------------------------------------------/
|
||||
/ Locale and Namespace Configurations
|
||||
/---------------------------------------------------------------------------*/
|
||||
|
||||
#define FF_CODE_PAGE 932
|
||||
/* This option specifies the OEM code page to be used on the target system.
|
||||
/ Incorrect code page setting can cause a file open failure.
|
||||
/
|
||||
/ 437 - U.S.
|
||||
/ 720 - Arabic
|
||||
/ 737 - Greek
|
||||
/ 771 - KBL
|
||||
/ 775 - Baltic
|
||||
/ 850 - Latin 1
|
||||
/ 852 - Latin 2
|
||||
/ 855 - Cyrillic
|
||||
/ 857 - Turkish
|
||||
/ 860 - Portuguese
|
||||
/ 861 - Icelandic
|
||||
/ 862 - Hebrew
|
||||
/ 863 - Canadian French
|
||||
/ 864 - Arabic
|
||||
/ 865 - Nordic
|
||||
/ 866 - Russian
|
||||
/ 869 - Greek 2
|
||||
/ 932 - Japanese (DBCS)
|
||||
/ 936 - Simplified Chinese (DBCS)
|
||||
/ 949 - Korean (DBCS)
|
||||
/ 950 - Traditional Chinese (DBCS)
|
||||
/ 0 - Include all code pages above and configured by f_setcp()
|
||||
*/
|
||||
|
||||
|
||||
#define FF_USE_LFN 0
|
||||
#define FF_MAX_LFN 255
|
||||
/* The FF_USE_LFN switches the support for LFN (long file name).
|
||||
/
|
||||
/ 0: Disable LFN. FF_MAX_LFN has no effect.
|
||||
/ 1: Enable LFN with static working buffer on the BSS. Always NOT thread-safe.
|
||||
/ 2: Enable LFN with dynamic working buffer on the STACK.
|
||||
/ 3: Enable LFN with dynamic working buffer on the HEAP.
|
||||
/
|
||||
/ To enable the LFN, Unicode handling functions (option/unicode.c) must be added
|
||||
/ to the project. The working buffer occupies (FF_MAX_LFN + 1) * 2 bytes and
|
||||
/ additional 608 bytes at exFAT enabled. FF_MAX_LFN can be in range from 12 to 255.
|
||||
/ It should be set 255 to support full featured LFN operations.
|
||||
/ When use stack for the working buffer, take care on stack overflow. When use heap
|
||||
/ memory for the working buffer, memory management functions, ff_memalloc() and
|
||||
/ ff_memfree(), must be added to the project. */
|
||||
|
||||
|
||||
#define FF_LFN_UNICODE 0
|
||||
/* This option switches character encoding on the API, 0:ANSI/OEM or 1:UTF-16,
|
||||
/ when LFN is enabled. Also behavior of string I/O functions will be affected by
|
||||
/ this option. When LFN is not enabled, this option has no effect.
|
||||
*/
|
||||
|
||||
|
||||
#define FF_STRF_ENCODE 3
|
||||
/* When FF_LFN_UNICODE = 1 with LFN enabled, string I/O functions, f_gets(),
|
||||
/ f_putc(), f_puts and f_printf() convert the character encoding in it.
|
||||
/ This option selects assumption of character encoding ON THE FILE to be
|
||||
/ read/written via those functions.
|
||||
/
|
||||
/ 0: ANSI/OEM
|
||||
/ 1: UTF-16LE
|
||||
/ 2: UTF-16BE
|
||||
/ 3: UTF-8
|
||||
*/
|
||||
|
||||
|
||||
#define FF_FS_RPATH 0
|
||||
/* This option configures support for relative path.
|
||||
/
|
||||
/ 0: Disable relative path and remove related functions.
|
||||
/ 1: Enable relative path. f_chdir() and f_chdrive() are available.
|
||||
/ 2: f_getcwd() function is available in addition to 1.
|
||||
*/
|
||||
|
||||
|
||||
/*---------------------------------------------------------------------------/
|
||||
/ Drive/Volume Configurations
|
||||
/---------------------------------------------------------------------------*/
|
||||
|
||||
#define FF_VOLUMES 1
|
||||
/* Number of volumes (logical drives) to be used. (1-10) */
|
||||
|
||||
|
||||
#define FF_STR_VOLUME_ID 0
|
||||
#define FF_VOLUME_STRS "RAM","NAND","CF","SD","SD2","USB","USB2","USB3"
|
||||
/* FF_STR_VOLUME_ID switches string support for volume ID.
|
||||
/ When FF_STR_VOLUME_ID is set to 1, also pre-defined strings can be used as drive
|
||||
/ number in the path name. FF_VOLUME_STRS defines the drive ID strings for each
|
||||
/ logical drives. Number of items must be equal to FF_VOLUMES. Valid characters for
|
||||
/ the drive ID strings are: A-Z and 0-9. */
|
||||
|
||||
|
||||
#define FF_MULTI_PARTITION 0
|
||||
/* This option switches support for multiple volumes on the physical drive.
|
||||
/ By default (0), each logical drive number is bound to the same physical drive
|
||||
/ number and only an FAT volume found on the physical drive will be mounted.
|
||||
/ When this function is enabled (1), each logical drive number can be bound to
|
||||
/ arbitrary physical drive and partition listed in the VolToPart[]. Also f_fdisk()
|
||||
/ funciton will be available. */
|
||||
|
||||
|
||||
#define FF_MIN_SS 512
|
||||
#define FF_MAX_SS 512
|
||||
/* This set of options configures the range of sector size to be supported. (512,
|
||||
/ 1024, 2048 or 4096) Always set both 512 for most systems, generic memory card and
|
||||
/ harddisk. But a larger value may be required for on-board flash memory and some
|
||||
/ type of optical media. When FF_MAX_SS is larger than FF_MIN_SS, FatFs is configured
|
||||
/ for variable sector size mode and disk_ioctl() function needs to implement
|
||||
/ GET_SECTOR_SIZE command. */
|
||||
|
||||
|
||||
#define FF_USE_TRIM 0
|
||||
/* This option switches support for ATA-TRIM. (0:Disable or 1:Enable)
|
||||
/ To enable Trim function, also CTRL_TRIM command should be implemented to the
|
||||
/ disk_ioctl() function. */
|
||||
|
||||
|
||||
#define FF_FS_NOFSINFO 0
|
||||
/* If you need to know correct free space on the FAT32 volume, set bit 0 of this
|
||||
/ option, and f_getfree() function at first time after volume mount will force
|
||||
/ a full FAT scan. Bit 1 controls the use of last allocated cluster number.
|
||||
/
|
||||
/ bit0=0: Use free cluster count in the FSINFO if available.
|
||||
/ bit0=1: Do not trust free cluster count in the FSINFO.
|
||||
/ bit1=0: Use last allocated cluster number in the FSINFO if available.
|
||||
/ bit1=1: Do not trust last allocated cluster number in the FSINFO.
|
||||
*/
|
||||
|
||||
|
||||
|
||||
/*---------------------------------------------------------------------------/
|
||||
/ System Configurations
|
||||
/---------------------------------------------------------------------------*/
|
||||
|
||||
#define FF_FS_TINY 0
|
||||
/* This option switches tiny buffer configuration. (0:Normal or 1:Tiny)
|
||||
/ At the tiny configuration, size of file object (FIL) is shrinked FF_MAX_SS bytes.
|
||||
/ Instead of private sector buffer eliminated from the file object, common sector
|
||||
/ buffer in the filesystem object (FATFS) is used for the file data transfer. */
|
||||
|
||||
|
||||
#define FF_FS_EXFAT 0
|
||||
/* This option switches support for exFAT filesystem. (0:Disable or 1:Enable)
|
||||
/ When enable exFAT, also LFN needs to be enabled.
|
||||
/ Note that enabling exFAT discards ANSI C (C89) compatibility. */
|
||||
|
||||
|
||||
#define FF_FS_NORTC 0
|
||||
#define FF_NORTC_MON 5
|
||||
#define FF_NORTC_MDAY 1
|
||||
#define FF_NORTC_YEAR 2017
|
||||
/* The option FF_FS_NORTC switches timestamp functiton. If the system does not have
|
||||
/ any RTC function or valid timestamp is not needed, set FF_FS_NORTC = 1 to disable
|
||||
/ the timestamp function. All objects modified by FatFs will have a fixed timestamp
|
||||
/ defined by FF_NORTC_MON, FF_NORTC_MDAY and FF_NORTC_YEAR in local time.
|
||||
/ To enable timestamp function (FF_FS_NORTC = 0), get_fattime() function need to be
|
||||
/ added to the project to read current time form real-time clock. FF_NORTC_MON,
|
||||
/ FF_NORTC_MDAY and FF_NORTC_YEAR have no effect.
|
||||
/ These options have no effect at read-only configuration (FF_FS_READONLY = 1). */
|
||||
|
||||
|
||||
#define FF_FS_LOCK 0
|
||||
/* The option FF_FS_LOCK switches file lock function to control duplicated file open
|
||||
/ and illegal operation to open objects. This option must be 0 when FF_FS_READONLY
|
||||
/ is 1.
|
||||
/
|
||||
/ 0: Disable file lock function. To avoid volume corruption, application program
|
||||
/ should avoid illegal open, remove and rename to the open objects.
|
||||
/ >0: Enable file lock function. The value defines how many files/sub-directories
|
||||
/ can be opened simultaneously under file lock control. Note that the file
|
||||
/ lock control is independent of re-entrancy. */
|
||||
|
||||
|
||||
#define FF_FS_REENTRANT 0
|
||||
#define FF_FS_TIMEOUT 1000
|
||||
#define FF_SYNC_t HANDLE
|
||||
/* The option FF_FS_REENTRANT switches the re-entrancy (thread safe) of the FatFs
|
||||
/ module itself. Note that regardless of this option, file access to different
|
||||
/ volume is always re-entrant and volume control functions, f_mount(), f_mkfs()
|
||||
/ and f_fdisk() function, are always not re-entrant. Only file/directory access
|
||||
/ to the same volume is under control of this function.
|
||||
/
|
||||
/ 0: Disable re-entrancy. FF_FS_TIMEOUT and FF_SYNC_t have no effect.
|
||||
/ 1: Enable re-entrancy. Also user provided synchronization handlers,
|
||||
/ ff_req_grant(), ff_rel_grant(), ff_del_syncobj() and ff_cre_syncobj()
|
||||
/ function, must be added to the project. Samples are available in
|
||||
/ option/syscall.c.
|
||||
/
|
||||
/ The FF_FS_TIMEOUT defines timeout period in unit of time tick.
|
||||
/ The FF_SYNC_t defines O/S dependent sync object type. e.g. HANDLE, ID, OS_EVENT*,
|
||||
/ SemaphoreHandle_t and etc. A header file for O/S definitions needs to be
|
||||
/ included somewhere in the scope of ff.h. */
|
||||
|
||||
/* #include <windows.h> // O/S definitions */
|
||||
|
||||
|
||||
|
||||
/*--- End of configuration options ---*/
|
||||
225
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/diskio.c
Normal file
225
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/diskio.c
Normal file
|
|
@ -0,0 +1,225 @@
|
|||
/*-----------------------------------------------------------------------*/
|
||||
/* Low level disk I/O module skeleton for FatFs (C)ChaN, 2016 */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
/* If a working storage control module is available, it should be */
|
||||
/* attached to the FatFs via a glue function rather than modifying it. */
|
||||
/* This is an example of glue functions to attach various exsisting */
|
||||
/* storage control modules to the FatFs module with a defined API. */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
|
||||
#include "diskio.h" /* FatFs lower layer API */
|
||||
|
||||
/* Definitions of physical drive number for each drive */
|
||||
#define DEV_RAM 0 /* Example: Map Ramdisk to physical drive 0 */
|
||||
#define DEV_MMC 1 /* Example: Map MMC/SD card to physical drive 1 */
|
||||
#define DEV_USB 2 /* Example: Map USB MSD to physical drive 2 */
|
||||
|
||||
|
||||
/*-----------------------------------------------------------------------*/
|
||||
/* Get Drive Status */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
|
||||
DSTATUS disk_status (
|
||||
BYTE pdrv /* Physical drive nmuber to identify the drive */
|
||||
)
|
||||
{
|
||||
DSTATUS stat;
|
||||
int result;
|
||||
|
||||
switch (pdrv) {
|
||||
case DEV_RAM :
|
||||
result = RAM_disk_status();
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return stat;
|
||||
|
||||
case DEV_MMC :
|
||||
result = MMC_disk_status();
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return stat;
|
||||
|
||||
case DEV_USB :
|
||||
result = USB_disk_status();
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return stat;
|
||||
}
|
||||
return STA_NOINIT;
|
||||
}
|
||||
|
||||
|
||||
|
||||
/*-----------------------------------------------------------------------*/
|
||||
/* Inidialize a Drive */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
|
||||
DSTATUS disk_initialize (
|
||||
BYTE pdrv /* Physical drive nmuber to identify the drive */
|
||||
)
|
||||
{
|
||||
DSTATUS stat;
|
||||
int result;
|
||||
|
||||
switch (pdrv) {
|
||||
case DEV_RAM :
|
||||
result = RAM_disk_initialize();
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return stat;
|
||||
|
||||
case DEV_MMC :
|
||||
result = MMC_disk_initialize();
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return stat;
|
||||
|
||||
case DEV_USB :
|
||||
result = USB_disk_initialize();
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return stat;
|
||||
}
|
||||
return STA_NOINIT;
|
||||
}
|
||||
|
||||
|
||||
|
||||
/*-----------------------------------------------------------------------*/
|
||||
/* Read Sector(s) */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
|
||||
DRESULT disk_read (
|
||||
BYTE pdrv, /* Physical drive nmuber to identify the drive */
|
||||
BYTE *buff, /* Data buffer to store read data */
|
||||
DWORD sector, /* Start sector in LBA */
|
||||
UINT count /* Number of sectors to read */
|
||||
)
|
||||
{
|
||||
DRESULT res;
|
||||
int result;
|
||||
|
||||
switch (pdrv) {
|
||||
case DEV_RAM :
|
||||
// translate the arguments here
|
||||
|
||||
result = RAM_disk_read(buff, sector, count);
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return res;
|
||||
|
||||
case DEV_MMC :
|
||||
// translate the arguments here
|
||||
|
||||
result = MMC_disk_read(buff, sector, count);
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return res;
|
||||
|
||||
case DEV_USB :
|
||||
// translate the arguments here
|
||||
|
||||
result = USB_disk_read(buff, sector, count);
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return res;
|
||||
}
|
||||
|
||||
return RES_PARERR;
|
||||
}
|
||||
|
||||
|
||||
|
||||
/*-----------------------------------------------------------------------*/
|
||||
/* Write Sector(s) */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
|
||||
DRESULT disk_write (
|
||||
BYTE pdrv, /* Physical drive nmuber to identify the drive */
|
||||
const BYTE *buff, /* Data to be written */
|
||||
DWORD sector, /* Start sector in LBA */
|
||||
UINT count /* Number of sectors to write */
|
||||
)
|
||||
{
|
||||
DRESULT res;
|
||||
int result;
|
||||
|
||||
switch (pdrv) {
|
||||
case DEV_RAM :
|
||||
// translate the arguments here
|
||||
|
||||
result = RAM_disk_write(buff, sector, count);
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return res;
|
||||
|
||||
case DEV_MMC :
|
||||
// translate the arguments here
|
||||
|
||||
result = MMC_disk_write(buff, sector, count);
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return res;
|
||||
|
||||
case DEV_USB :
|
||||
// translate the arguments here
|
||||
|
||||
result = USB_disk_write(buff, sector, count);
|
||||
|
||||
// translate the reslut code here
|
||||
|
||||
return res;
|
||||
}
|
||||
|
||||
return RES_PARERR;
|
||||
}
|
||||
|
||||
|
||||
|
||||
/*-----------------------------------------------------------------------*/
|
||||
/* Miscellaneous Functions */
|
||||
/*-----------------------------------------------------------------------*/
|
||||
|
||||
DRESULT disk_ioctl (
|
||||
BYTE pdrv, /* Physical drive nmuber (0..) */
|
||||
BYTE cmd, /* Control code */
|
||||
void *buff /* Buffer to send/receive control data */
|
||||
)
|
||||
{
|
||||
DRESULT res;
|
||||
int result;
|
||||
|
||||
switch (pdrv) {
|
||||
case DEV_RAM :
|
||||
|
||||
// Process of the command for the RAM drive
|
||||
|
||||
return res;
|
||||
|
||||
case DEV_MMC :
|
||||
|
||||
// Process of the command for the MMC/SD card
|
||||
|
||||
return res;
|
||||
|
||||
case DEV_USB :
|
||||
|
||||
// Process of the command the USB drive
|
||||
|
||||
return res;
|
||||
}
|
||||
|
||||
return RES_PARERR;
|
||||
}
|
||||
|
||||
80
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/diskio.h
Normal file
80
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/diskio.h
Normal file
|
|
@ -0,0 +1,80 @@
|
|||
/*-----------------------------------------------------------------------/
|
||||
/ Low level disk interface modlue include file (C)ChaN, 2014 /
|
||||
/-----------------------------------------------------------------------*/
|
||||
|
||||
#ifndef _DISKIO_DEFINED
|
||||
#define _DISKIO_DEFINED
|
||||
|
||||
#ifdef __cplusplus
|
||||
extern "C" {
|
||||
#endif
|
||||
|
||||
#include "integer.h"
|
||||
|
||||
|
||||
/* Status of Disk Functions */
|
||||
typedef BYTE DSTATUS;
|
||||
|
||||
/* Results of Disk Functions */
|
||||
typedef enum {
|
||||
RES_OK = 0, /* 0: Successful */
|
||||
RES_ERROR, /* 1: R/W Error */
|
||||
RES_WRPRT, /* 2: Write Protected */
|
||||
RES_NOTRDY, /* 3: Not Ready */
|
||||
RES_PARERR /* 4: Invalid Parameter */
|
||||
} DRESULT;
|
||||
|
||||
|
||||
/*---------------------------------------*/
|
||||
/* Prototypes for disk control functions */
|
||||
|
||||
|
||||
DSTATUS disk_initialize (BYTE pdrv);
|
||||
DSTATUS disk_status (BYTE pdrv);
|
||||
DRESULT disk_read (BYTE pdrv, BYTE* buff, DWORD sector, UINT count);
|
||||
DRESULT disk_write (BYTE pdrv, const BYTE* buff, DWORD sector, UINT count);
|
||||
DRESULT disk_ioctl (BYTE pdrv, BYTE cmd, void* buff);
|
||||
|
||||
|
||||
/* Disk Status Bits (DSTATUS) */
|
||||
|
||||
#define STA_NOINIT 0x01 /* Drive not initialized */
|
||||
#define STA_NODISK 0x02 /* No medium in the drive */
|
||||
#define STA_PROTECT 0x04 /* Write protected */
|
||||
|
||||
|
||||
/* Command code for disk_ioctrl fucntion */
|
||||
|
||||
/* Generic command (Used by FatFs) */
|
||||
#define CTRL_SYNC 0 /* Complete pending write process (needed at _FS_READONLY == 0) */
|
||||
#define GET_SECTOR_COUNT 1 /* Get media size (needed at _USE_MKFS == 1) */
|
||||
#define GET_SECTOR_SIZE 2 /* Get sector size (needed at _MAX_SS != _MIN_SS) */
|
||||
#define GET_BLOCK_SIZE 3 /* Get erase block size (needed at _USE_MKFS == 1) */
|
||||
#define CTRL_TRIM 4 /* Inform device that the data on the block of sectors is no longer used (needed at _USE_TRIM == 1) */
|
||||
|
||||
/* Generic command (Not used by FatFs) */
|
||||
#define CTRL_POWER 5 /* Get/Set power status */
|
||||
#define CTRL_LOCK 6 /* Lock/Unlock media removal */
|
||||
#define CTRL_EJECT 7 /* Eject media */
|
||||
#define CTRL_FORMAT 8 /* Create physical format on the media */
|
||||
|
||||
/* MMC/SDC specific ioctl command */
|
||||
#define MMC_GET_TYPE 10 /* Get card type */
|
||||
#define MMC_GET_CSD 11 /* Get CSD */
|
||||
#define MMC_GET_CID 12 /* Get CID */
|
||||
#define MMC_GET_OCR 13 /* Get OCR */
|
||||
#define MMC_GET_SDSTAT 14 /* Get SD status */
|
||||
#define ISDIO_READ 55 /* Read data form SD iSDIO register */
|
||||
#define ISDIO_WRITE 56 /* Write data to SD iSDIO register */
|
||||
#define ISDIO_MRITE 57 /* Masked write data to SD iSDIO register */
|
||||
|
||||
/* ATA/CF specific ioctl command */
|
||||
#define ATA_GET_REV 20 /* Get F/W revision */
|
||||
#define ATA_GET_MODEL 21 /* Get model name */
|
||||
#define ATA_GET_SN 22 /* Get serial number */
|
||||
|
||||
#ifdef __cplusplus
|
||||
}
|
||||
#endif
|
||||
|
||||
#endif
|
||||
6209
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ff.c
Normal file
6209
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ff.c
Normal file
File diff suppressed because it is too large
Load diff
364
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ff.h
Normal file
364
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ff.h
Normal file
|
|
@ -0,0 +1,364 @@
|
|||
/*----------------------------------------------------------------------------/
|
||||
/ FatFs - Generic FAT Filesystem module R0.13 /
|
||||
/-----------------------------------------------------------------------------/
|
||||
/
|
||||
/ Copyright (C) 2017, ChaN, all right reserved.
|
||||
/
|
||||
/ FatFs module is an open source software. Redistribution and use of FatFs in
|
||||
/ source and binary forms, with or without modification, are permitted provided
|
||||
/ that the following condition is met:
|
||||
|
||||
/ 1. Redistributions of source code must retain the above copyright notice,
|
||||
/ this condition and the following disclaimer.
|
||||
/
|
||||
/ This software is provided by the copyright holder and contributors "AS IS"
|
||||
/ and any warranties related to this software are DISCLAIMED.
|
||||
/ The copyright owner or contributors be NOT LIABLE for any damages caused
|
||||
/ by use of this software.
|
||||
/
|
||||
/----------------------------------------------------------------------------*/
|
||||
|
||||
|
||||
#ifndef FF_DEFINED
|
||||
#define FF_DEFINED 87030 /* Revision ID */
|
||||
|
||||
#ifdef __cplusplus
|
||||
extern "C" {
|
||||
#endif
|
||||
|
||||
#include "integer.h" /* Basic integer types */
|
||||
#include "ffconf.h" /* FatFs configuration options */
|
||||
|
||||
#if FF_DEFINED != FFCONF_DEF
|
||||
#error Wrong configuration file (ffconf.h).
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
/* Definitions of volume management */
|
||||
|
||||
#if FF_MULTI_PARTITION /* Multiple partition configuration */
|
||||
typedef struct {
|
||||
BYTE pd; /* Physical drive number */
|
||||
BYTE pt; /* Partition: 0:Auto detect, 1-4:Forced partition) */
|
||||
} PARTITION;
|
||||
extern PARTITION VolToPart[]; /* Volume - Partition resolution table */
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
/* Type of path name strings on FatFs API */
|
||||
|
||||
#if FF_LFN_UNICODE && FF_USE_LFN /* Unicode (UTF-16) string */
|
||||
#ifndef _INC_TCHAR
|
||||
typedef WCHAR TCHAR;
|
||||
#define _T(x) L ## x
|
||||
#define _TEXT(x) L ## x
|
||||
#define _INC_TCHAR
|
||||
#endif
|
||||
#else /* ANSI/OEM string */
|
||||
#ifndef _INC_TCHAR
|
||||
typedef char TCHAR;
|
||||
#define _T(x) x
|
||||
#define _TEXT(x) x
|
||||
#define _INC_TCHAR
|
||||
#endif
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
/* Type of file size variables */
|
||||
|
||||
#if FF_FS_EXFAT
|
||||
#if !FF_USE_LFN
|
||||
#error LFN must be enabled when enable exFAT
|
||||
#endif
|
||||
typedef QWORD FSIZE_t;
|
||||
#else
|
||||
typedef DWORD FSIZE_t;
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
/* Filesystem object structure (FATFS) */
|
||||
|
||||
typedef struct {
|
||||
BYTE fs_type; /* Filesystem type (0:N/A) */
|
||||
BYTE pdrv; /* Physical drive number */
|
||||
BYTE n_fats; /* Number of FATs (1 or 2) */
|
||||
BYTE wflag; /* win[] flag (b0:dirty) */
|
||||
BYTE fsi_flag; /* FSINFO flags (b7:disabled, b0:dirty) */
|
||||
WORD id; /* Volume mount ID */
|
||||
WORD n_rootdir; /* Number of root directory entries (FAT12/16) */
|
||||
WORD csize; /* Cluster size [sectors] */
|
||||
#if FF_MAX_SS != FF_MIN_SS
|
||||
WORD ssize; /* Sector size (512, 1024, 2048 or 4096) */
|
||||
#endif
|
||||
#if FF_USE_LFN
|
||||
WCHAR* lfnbuf; /* LFN working buffer */
|
||||
#endif
|
||||
#if FF_FS_EXFAT
|
||||
BYTE* dirbuf; /* Directory entry block scratchpad buffer for exFAT */
|
||||
#endif
|
||||
#if FF_FS_REENTRANT
|
||||
FF_SYNC_t sobj; /* Identifier of sync object */
|
||||
#endif
|
||||
#if !FF_FS_READONLY
|
||||
DWORD last_clst; /* Last allocated cluster */
|
||||
DWORD free_clst; /* Number of free clusters */
|
||||
#endif
|
||||
#if FF_FS_RPATH
|
||||
DWORD cdir; /* Current directory start cluster (0:root) */
|
||||
#if FF_FS_EXFAT
|
||||
DWORD cdc_scl; /* Containing directory start cluster (invalid when cdir is 0) */
|
||||
DWORD cdc_size; /* b31-b8:Size of containing directory, b7-b0: Chain status */
|
||||
DWORD cdc_ofs; /* Offset in the containing directory (invalid when cdir is 0) */
|
||||
#endif
|
||||
#endif
|
||||
DWORD n_fatent; /* Number of FAT entries (number of clusters + 2) */
|
||||
DWORD fsize; /* Size of an FAT [sectors] */
|
||||
DWORD volbase; /* Volume base sector */
|
||||
DWORD fatbase; /* FAT base sector */
|
||||
DWORD dirbase; /* Root directory base sector/cluster */
|
||||
DWORD database; /* Data base sector */
|
||||
DWORD winsect; /* Current sector appearing in the win[] */
|
||||
BYTE win[FF_MAX_SS]; /* Disk access window for Directory, FAT (and file data at tiny cfg) */
|
||||
} FATFS;
|
||||
|
||||
|
||||
|
||||
/* Object ID and allocation information (FFOBJID) */
|
||||
|
||||
typedef struct {
|
||||
FATFS* fs; /* Pointer to the hosting volume of this object */
|
||||
WORD id; /* Hosting volume mount ID */
|
||||
BYTE attr; /* Object attribute */
|
||||
BYTE stat; /* Object chain status (b1-0: =0:not contiguous, =2:contiguous, =3:flagmented in this session, b2:sub-directory stretched) */
|
||||
DWORD sclust; /* Object data start cluster (0:no cluster or root directory) */
|
||||
FSIZE_t objsize; /* Object size (valid when sclust != 0) */
|
||||
#if FF_FS_EXFAT
|
||||
DWORD n_cont; /* Size of first fragment - 1 (valid when stat == 3) */
|
||||
DWORD n_frag; /* Size of last fragment needs to be written to FAT (valid when not zero) */
|
||||
DWORD c_scl; /* Containing directory start cluster (valid when sclust != 0) */
|
||||
DWORD c_size; /* b31-b8:Size of containing directory, b7-b0: Chain status (valid when c_scl != 0) */
|
||||
DWORD c_ofs; /* Offset in the containing directory (valid when file object and sclust != 0) */
|
||||
#endif
|
||||
#if FF_FS_LOCK
|
||||
UINT lockid; /* File lock ID origin from 1 (index of file semaphore table Files[]) */
|
||||
#endif
|
||||
} FFOBJID;
|
||||
|
||||
|
||||
|
||||
/* File object structure (FIL) */
|
||||
|
||||
typedef struct {
|
||||
FFOBJID obj; /* Object identifier (must be the 1st member to detect invalid object pointer) */
|
||||
BYTE flag; /* File status flags */
|
||||
BYTE err; /* Abort flag (error code) */
|
||||
FSIZE_t fptr; /* File read/write pointer (Zeroed on file open) */
|
||||
DWORD clust; /* Current cluster of fpter (invalid when fptr is 0) */
|
||||
DWORD sect; /* Sector number appearing in buf[] (0:invalid) */
|
||||
#if !FF_FS_READONLY
|
||||
DWORD dir_sect; /* Sector number containing the directory entry (not used at exFAT) */
|
||||
BYTE* dir_ptr; /* Pointer to the directory entry in the win[] (not used at exFAT) */
|
||||
#endif
|
||||
#if FF_USE_FASTSEEK
|
||||
DWORD* cltbl; /* Pointer to the cluster link map table (nulled on open, set by application) */
|
||||
#endif
|
||||
#if !FF_FS_TINY
|
||||
BYTE buf[FF_MAX_SS]; /* File private data read/write window */
|
||||
#endif
|
||||
} FIL;
|
||||
|
||||
|
||||
|
||||
/* Directory object structure (DIR) */
|
||||
|
||||
typedef struct {
|
||||
FFOBJID obj; /* Object identifier */
|
||||
DWORD dptr; /* Current read/write offset */
|
||||
DWORD clust; /* Current cluster */
|
||||
DWORD sect; /* Current sector (0:Read operation has terminated) */
|
||||
BYTE* dir; /* Pointer to the directory item in the win[] */
|
||||
BYTE fn[12]; /* SFN (in/out) {body[8],ext[3],status[1]} */
|
||||
#if FF_USE_LFN
|
||||
DWORD blk_ofs; /* Offset of current entry block being processed (0xFFFFFFFF:Invalid) */
|
||||
#endif
|
||||
#if FF_USE_FIND
|
||||
const TCHAR* pat; /* Pointer to the name matching pattern */
|
||||
#endif
|
||||
} DIR;
|
||||
|
||||
|
||||
|
||||
/* File information structure (FILINFO) */
|
||||
|
||||
typedef struct {
|
||||
FSIZE_t fsize; /* File size */
|
||||
WORD fdate; /* Modified date */
|
||||
WORD ftime; /* Modified time */
|
||||
BYTE fattrib; /* File attribute */
|
||||
#if FF_USE_LFN
|
||||
TCHAR altname[13]; /* Altenative file name */
|
||||
TCHAR fname[FF_MAX_LFN + 1]; /* Primary file name */
|
||||
#else
|
||||
TCHAR fname[13]; /* File name */
|
||||
#endif
|
||||
} FILINFO;
|
||||
|
||||
|
||||
|
||||
/* File function return code (FRESULT) */
|
||||
|
||||
typedef enum {
|
||||
FR_OK = 0, /* (0) Succeeded */
|
||||
FR_DISK_ERR, /* (1) A hard error occurred in the low level disk I/O layer */
|
||||
FR_INT_ERR, /* (2) Assertion failed */
|
||||
FR_NOT_READY, /* (3) The physical drive cannot work */
|
||||
FR_NO_FILE, /* (4) Could not find the file */
|
||||
FR_NO_PATH, /* (5) Could not find the path */
|
||||
FR_INVALID_NAME, /* (6) The path name format is invalid */
|
||||
FR_DENIED, /* (7) Access denied due to prohibited access or directory full */
|
||||
FR_EXIST, /* (8) Access denied due to prohibited access */
|
||||
FR_INVALID_OBJECT, /* (9) The file/directory object is invalid */
|
||||
FR_WRITE_PROTECTED, /* (10) The physical drive is write protected */
|
||||
FR_INVALID_DRIVE, /* (11) The logical drive number is invalid */
|
||||
FR_NOT_ENABLED, /* (12) The volume has no work area */
|
||||
FR_NO_FILESYSTEM, /* (13) There is no valid FAT volume */
|
||||
FR_MKFS_ABORTED, /* (14) The f_mkfs() aborted due to any problem */
|
||||
FR_TIMEOUT, /* (15) Could not get a grant to access the volume within defined period */
|
||||
FR_LOCKED, /* (16) The operation is rejected according to the file sharing policy */
|
||||
FR_NOT_ENOUGH_CORE, /* (17) LFN working buffer could not be allocated */
|
||||
FR_TOO_MANY_OPEN_FILES, /* (18) Number of open files > FF_FS_LOCK */
|
||||
FR_INVALID_PARAMETER /* (19) Given parameter is invalid */
|
||||
} FRESULT;
|
||||
|
||||
|
||||
|
||||
/*--------------------------------------------------------------*/
|
||||
/* FatFs module application interface */
|
||||
|
||||
FRESULT f_open (FIL* fp, const TCHAR* path, BYTE mode); /* Open or create a file */
|
||||
FRESULT f_close (FIL* fp); /* Close an open file object */
|
||||
FRESULT f_read (FIL* fp, void* buff, UINT btr, UINT* br); /* Read data from the file */
|
||||
FRESULT f_write (FIL* fp, const void* buff, UINT btw, UINT* bw); /* Write data to the file */
|
||||
FRESULT f_lseek (FIL* fp, FSIZE_t ofs); /* Move file pointer of the file object */
|
||||
FRESULT f_truncate (FIL* fp); /* Truncate the file */
|
||||
FRESULT f_sync (FIL* fp); /* Flush cached data of the writing file */
|
||||
FRESULT f_opendir (DIR* dp, const TCHAR* path); /* Open a directory */
|
||||
FRESULT f_closedir (DIR* dp); /* Close an open directory */
|
||||
FRESULT f_readdir (DIR* dp, FILINFO* fno); /* Read a directory item */
|
||||
FRESULT f_findfirst (DIR* dp, FILINFO* fno, const TCHAR* path, const TCHAR* pattern); /* Find first file */
|
||||
FRESULT f_findnext (DIR* dp, FILINFO* fno); /* Find next file */
|
||||
FRESULT f_mkdir (const TCHAR* path); /* Create a sub directory */
|
||||
FRESULT f_unlink (const TCHAR* path); /* Delete an existing file or directory */
|
||||
FRESULT f_rename (const TCHAR* path_old, const TCHAR* path_new); /* Rename/Move a file or directory */
|
||||
FRESULT f_stat (const TCHAR* path, FILINFO* fno); /* Get file status */
|
||||
FRESULT f_chmod (const TCHAR* path, BYTE attr, BYTE mask); /* Change attribute of a file/dir */
|
||||
FRESULT f_utime (const TCHAR* path, const FILINFO* fno); /* Change timestamp of a file/dir */
|
||||
FRESULT f_chdir (const TCHAR* path); /* Change current directory */
|
||||
FRESULT f_chdrive (const TCHAR* path); /* Change current drive */
|
||||
FRESULT f_getcwd (TCHAR* buff, UINT len); /* Get current directory */
|
||||
FRESULT f_getfree (const TCHAR* path, DWORD* nclst, FATFS** fatfs); /* Get number of free clusters on the drive */
|
||||
FRESULT f_getlabel (const TCHAR* path, TCHAR* label, DWORD* vsn); /* Get volume label */
|
||||
FRESULT f_setlabel (const TCHAR* label); /* Set volume label */
|
||||
FRESULT f_forward (FIL* fp, UINT(*func)(const BYTE*,UINT), UINT btf, UINT* bf); /* Forward data to the stream */
|
||||
FRESULT f_expand (FIL* fp, FSIZE_t szf, BYTE opt); /* Allocate a contiguous block to the file */
|
||||
FRESULT f_mount (FATFS* fs, const TCHAR* path, BYTE opt); /* Mount/Unmount a logical drive */
|
||||
FRESULT f_mkfs (const TCHAR* path, BYTE opt, DWORD au, void* work, UINT len); /* Create a FAT volume */
|
||||
FRESULT f_fdisk (BYTE pdrv, const DWORD* szt, void* work); /* Divide a physical drive into some partitions */
|
||||
FRESULT f_setcp (WORD cp); /* Set current code page */
|
||||
int f_putc (TCHAR c, FIL* fp); /* Put a character to the file */
|
||||
int f_puts (const TCHAR* str, FIL* cp); /* Put a string to the file */
|
||||
int f_printf (FIL* fp, const TCHAR* str, ...); /* Put a formatted string to the file */
|
||||
TCHAR* f_gets (TCHAR* buff, int len, FIL* fp); /* Get a string from the file */
|
||||
|
||||
#define f_eof(fp) ((int)((fp)->fptr == (fp)->obj.objsize))
|
||||
#define f_error(fp) ((fp)->err)
|
||||
#define f_tell(fp) ((fp)->fptr)
|
||||
#define f_size(fp) ((fp)->obj.objsize)
|
||||
#define f_rewind(fp) f_lseek((fp), 0)
|
||||
#define f_rewinddir(dp) f_readdir((dp), 0)
|
||||
#define f_rmdir(path) f_unlink(path)
|
||||
#define f_unmount(path) f_mount(0, path, 0)
|
||||
|
||||
#ifndef EOF
|
||||
#define EOF (-1)
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
|
||||
/*--------------------------------------------------------------*/
|
||||
/* Additional user defined functions */
|
||||
|
||||
/* RTC function */
|
||||
#if !FF_FS_READONLY && !FF_FS_NORTC
|
||||
DWORD get_fattime (void);
|
||||
#endif
|
||||
|
||||
/* LFN support functions */
|
||||
#if FF_USE_LFN /* Code conversion (defined in unicode.c) */
|
||||
WCHAR ff_oem2uni (WCHAR oem, WORD cp); /* OEM code to Unicode conversion */
|
||||
WCHAR ff_uni2oem (WCHAR uni, WORD cp); /* Unicode to OEM code conversion */
|
||||
WCHAR ff_wtoupper (WCHAR uni); /* Unicode upper-case conversion */
|
||||
#endif
|
||||
#if FF_USE_LFN == 3 /* Dynamic memory allocation */
|
||||
void* ff_memalloc (UINT msize); /* Allocate memory block */
|
||||
void ff_memfree (void* mblock); /* Free memory block */
|
||||
#endif
|
||||
|
||||
/* Sync functions */
|
||||
#if FF_FS_REENTRANT
|
||||
int ff_cre_syncobj (BYTE vol, FF_SYNC_t* sobj); /* Create a sync object */
|
||||
int ff_req_grant (FF_SYNC_t sobj); /* Lock sync object */
|
||||
void ff_rel_grant (FF_SYNC_t sobj); /* Unlock sync object */
|
||||
int ff_del_syncobj (FF_SYNC_t sobj); /* Delete a sync object */
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
|
||||
/*--------------------------------------------------------------*/
|
||||
/* Flags and offset address */
|
||||
|
||||
|
||||
/* File access mode and open method flags (3rd argument of f_open) */
|
||||
#define FA_READ 0x01
|
||||
#define FA_WRITE 0x02
|
||||
#define FA_OPEN_EXISTING 0x00
|
||||
#define FA_CREATE_NEW 0x04
|
||||
#define FA_CREATE_ALWAYS 0x08
|
||||
#define FA_OPEN_ALWAYS 0x10
|
||||
#define FA_OPEN_APPEND 0x30
|
||||
|
||||
/* Fast seek controls (2nd argument of f_lseek) */
|
||||
#define CREATE_LINKMAP ((FSIZE_t)0 - 1)
|
||||
|
||||
/* Format options (2nd argument of f_mkfs) */
|
||||
#define FM_FAT 0x01
|
||||
#define FM_FAT32 0x02
|
||||
#define FM_EXFAT 0x04
|
||||
#define FM_ANY 0x07
|
||||
#define FM_SFD 0x08
|
||||
|
||||
/* Filesystem type (FATFS.fs_type) */
|
||||
#define FS_FAT12 1
|
||||
#define FS_FAT16 2
|
||||
#define FS_FAT32 3
|
||||
#define FS_EXFAT 4
|
||||
|
||||
/* File attribute bits for directory entry (FILINFO.fattrib) */
|
||||
#define AM_RDO 0x01 /* Read only */
|
||||
#define AM_HID 0x02 /* Hidden */
|
||||
#define AM_SYS 0x04 /* System */
|
||||
#define AM_DIR 0x10 /* Directory */
|
||||
#define AM_ARC 0x20 /* Archive */
|
||||
|
||||
|
||||
#ifdef __cplusplus
|
||||
}
|
||||
#endif
|
||||
|
||||
#endif /* FF_DEFINED */
|
||||
171
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ffsystem.c
Normal file
171
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ffsystem.c
Normal file
|
|
@ -0,0 +1,171 @@
|
|||
/*------------------------------------------------------------------------*/
|
||||
/* Sample code of OS dependent controls for FatFs */
|
||||
/* (C)ChaN, 2017 */
|
||||
/*------------------------------------------------------------------------*/
|
||||
|
||||
|
||||
#include "ff.h"
|
||||
|
||||
|
||||
|
||||
#if FF_USE_LFN == 3 /* Dynamic memory allocation */
|
||||
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* Allocate a memory block */
|
||||
/*------------------------------------------------------------------------*/
|
||||
|
||||
void* ff_memalloc ( /* Returns pointer to the allocated memory block (null on not enough core) */
|
||||
UINT msize /* Number of bytes to allocate */
|
||||
)
|
||||
{
|
||||
return malloc(msize); /* Allocate a new memory block with POSIX API */
|
||||
}
|
||||
|
||||
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* Free a memory block */
|
||||
/*------------------------------------------------------------------------*/
|
||||
|
||||
void ff_memfree (
|
||||
void* mblock /* Pointer to the memory block to free */
|
||||
)
|
||||
{
|
||||
free(mblock); /* Free the memory block with POSIX API */
|
||||
}
|
||||
|
||||
#endif
|
||||
|
||||
|
||||
|
||||
#if FF_FS_REENTRANT /* Mutal exclusion */
|
||||
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* Create a Synchronization Object
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* This function is called in f_mount() function to create a new
|
||||
/ synchronization object for the volume, such as semaphore and mutex.
|
||||
/ When a 0 is returned, the f_mount() function fails with FR_INT_ERR.
|
||||
*/
|
||||
|
||||
//const osMutexDef_t Mutex[FF_VOLUMES]; /* CMSIS-RTOS */
|
||||
|
||||
|
||||
int ff_cre_syncobj ( /* 1:Function succeeded, 0:Could not create the sync object */
|
||||
BYTE vol, /* Corresponding volume (logical drive number) */
|
||||
FF_SYNC_t *sobj /* Pointer to return the created sync object */
|
||||
)
|
||||
{
|
||||
/* Win32 */
|
||||
*sobj = CreateMutex(NULL, FALSE, NULL);
|
||||
return (int)(*sobj != INVALID_HANDLE_VALUE);
|
||||
|
||||
/* uITRON */
|
||||
// T_CSEM csem = {TA_TPRI,1,1};
|
||||
// *sobj = acre_sem(&csem);
|
||||
// return (int)(*sobj > 0);
|
||||
|
||||
/* uC/OS-II */
|
||||
// OS_ERR err;
|
||||
// *sobj = OSMutexCreate(0, &err);
|
||||
// return (int)(err == OS_NO_ERR);
|
||||
|
||||
/* FreeRTOS */
|
||||
// *sobj = xSemaphoreCreateMutex();
|
||||
// return (int)(*sobj != NULL);
|
||||
|
||||
/* CMSIS-RTOS */
|
||||
// *sobj = osMutexCreate(Mutex + vol);
|
||||
// return (int)(*sobj != NULL);
|
||||
}
|
||||
|
||||
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* Delete a Synchronization Object */
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* This function is called in f_mount() function to delete a synchronization
|
||||
/ object that created with ff_cre_syncobj() function. When a 0 is returned,
|
||||
/ the f_mount() function fails with FR_INT_ERR.
|
||||
*/
|
||||
|
||||
int ff_del_syncobj ( /* 1:Function succeeded, 0:Could not delete due to an error */
|
||||
FF_SYNC_t sobj /* Sync object tied to the logical drive to be deleted */
|
||||
)
|
||||
{
|
||||
/* Win32 */
|
||||
return (int)CloseHandle(sobj);
|
||||
|
||||
/* uITRON */
|
||||
// return (int)(del_sem(sobj) == E_OK);
|
||||
|
||||
/* uC/OS-II */
|
||||
// OS_ERR err;
|
||||
// OSMutexDel(sobj, OS_DEL_ALWAYS, &err);
|
||||
// return (int)(err == OS_NO_ERR);
|
||||
|
||||
/* FreeRTOS */
|
||||
// vSemaphoreDelete(sobj);
|
||||
// return 1;
|
||||
|
||||
/* CMSIS-RTOS */
|
||||
// return (int)(osMutexDelete(sobj) == osOK);
|
||||
}
|
||||
|
||||
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* Request Grant to Access the Volume */
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* This function is called on entering file functions to lock the volume.
|
||||
/ When a 0 is returned, the file function fails with FR_TIMEOUT.
|
||||
*/
|
||||
|
||||
int ff_req_grant ( /* 1:Got a grant to access the volume, 0:Could not get a grant */
|
||||
FF_SYNC_t sobj /* Sync object to wait */
|
||||
)
|
||||
{
|
||||
/* Win32 */
|
||||
return (int)(WaitForSingleObject(sobj, FF_FS_TIMEOUT) == WAIT_OBJECT_0);
|
||||
|
||||
/* uITRON */
|
||||
// return (int)(wai_sem(sobj) == E_OK);
|
||||
|
||||
/* uC/OS-II */
|
||||
// OS_ERR err;
|
||||
// OSMutexPend(sobj, FF_FS_TIMEOUT, &err));
|
||||
// return (int)(err == OS_NO_ERR);
|
||||
|
||||
/* FreeRTOS */
|
||||
// return (int)(xSemaphoreTake(sobj, FF_FS_TIMEOUT) == pdTRUE);
|
||||
|
||||
/* CMSIS-RTOS */
|
||||
// return (int)(osMutexWait(sobj, FF_FS_TIMEOUT) == osOK);
|
||||
}
|
||||
|
||||
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* Release Grant to Access the Volume */
|
||||
/*------------------------------------------------------------------------*/
|
||||
/* This function is called on leaving file functions to unlock the volume.
|
||||
*/
|
||||
|
||||
void ff_rel_grant (
|
||||
FF_SYNC_t sobj /* Sync object to be signaled */
|
||||
)
|
||||
{
|
||||
/* Win32 */
|
||||
ReleaseMutex(sobj);
|
||||
|
||||
/* uITRON */
|
||||
// sig_sem(sobj);
|
||||
|
||||
/* uC/OS-II */
|
||||
// OSMutexPost(sobj);
|
||||
|
||||
/* FreeRTOS */
|
||||
// xSemaphoreGive(sobj);
|
||||
|
||||
/* CMSIS-RTOS */
|
||||
// osMutexRelease(sobj);
|
||||
}
|
||||
|
||||
#endif
|
||||
|
||||
15566
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ffunicode.c
Normal file
15566
eigener_ctrl/stm32f407-olimex/chibios/ext/fatfs/src/ffunicode.c
Normal file
File diff suppressed because it is too large
Load diff
|
|
@ -0,0 +1,38 @@
|
|||
/*-------------------------------------------*/
|
||||
/* Integer type definitions for FatFs module */
|
||||
/*-------------------------------------------*/
|
||||
|
||||
#ifndef FF_INTEGER
|
||||
#define FF_INTEGER
|
||||
|
||||
#ifdef _WIN32 /* FatFs development platform */
|
||||
|
||||
#include <windows.h>
|
||||
#include <tchar.h>
|
||||
typedef unsigned __int64 QWORD;
|
||||
|
||||
|
||||
#else /* Embedded platform */
|
||||
|
||||
/* These types MUST be 16-bit or 32-bit */
|
||||
typedef int INT;
|
||||
typedef unsigned int UINT;
|
||||
|
||||
/* This type MUST be 8-bit */
|
||||
typedef unsigned char BYTE;
|
||||
|
||||
/* These types MUST be 16-bit */
|
||||
typedef short SHORT;
|
||||
typedef unsigned short WORD;
|
||||
typedef unsigned short WCHAR;
|
||||
|
||||
/* These types MUST be 32-bit */
|
||||
typedef long LONG;
|
||||
typedef unsigned long DWORD;
|
||||
|
||||
/* This type MUST be 64-bit (Remove this for ANSI C (C89) compatibility) */
|
||||
typedef unsigned long long QWORD;
|
||||
|
||||
#endif
|
||||
|
||||
#endif
|
||||
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip-1.4.1_patched.7z
Executable file
BIN
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip-1.4.1_patched.7z
Executable file
Binary file not shown.
3349
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/CHANGELOG
Normal file
3349
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/CHANGELOG
Normal file
File diff suppressed because it is too large
Load diff
33
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/COPYING
Normal file
33
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/COPYING
Normal file
|
|
@ -0,0 +1,33 @@
|
|||
/*
|
||||
* Copyright (c) 2001, 2002 Swedish Institute of Computer Science.
|
||||
* All rights reserved.
|
||||
*
|
||||
* Redistribution and use in source and binary forms, with or without modification,
|
||||
* are permitted provided that the following conditions are met:
|
||||
*
|
||||
* 1. Redistributions of source code must retain the above copyright notice,
|
||||
* this list of conditions and the following disclaimer.
|
||||
* 2. Redistributions in binary form must reproduce the above copyright notice,
|
||||
* this list of conditions and the following disclaimer in the documentation
|
||||
* and/or other materials provided with the distribution.
|
||||
* 3. The name of the author may not be used to endorse or promote products
|
||||
* derived from this software without specific prior written permission.
|
||||
*
|
||||
* THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR IMPLIED
|
||||
* WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
|
||||
* MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
|
||||
* SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
|
||||
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
|
||||
* OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
|
||||
* INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
|
||||
* CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
|
||||
* IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
|
||||
* OF SUCH DAMAGE.
|
||||
*
|
||||
* This file is part of the lwIP TCP/IP stack.
|
||||
*
|
||||
* Author: Adam Dunkels <adam@sics.se>
|
||||
*
|
||||
*/
|
||||
|
||||
|
||||
4
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/FILES
Normal file
4
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/FILES
Normal file
|
|
@ -0,0 +1,4 @@
|
|||
src/ - The source code for the lwIP TCP/IP stack.
|
||||
doc/ - The documentation for lwIP.
|
||||
|
||||
See also the FILES file in each subdirectory.
|
||||
89
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/README
Normal file
89
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/README
Normal file
|
|
@ -0,0 +1,89 @@
|
|||
INTRODUCTION
|
||||
|
||||
lwIP is a small independent implementation of the TCP/IP protocol
|
||||
suite that has been developed by Adam Dunkels at the Computer and
|
||||
Networks Architectures (CNA) lab at the Swedish Institute of Computer
|
||||
Science (SICS).
|
||||
|
||||
The focus of the lwIP TCP/IP implementation is to reduce the RAM usage
|
||||
while still having a full scale TCP. This making lwIP suitable for use
|
||||
in embedded systems with tens of kilobytes of free RAM and room for
|
||||
around 40 kilobytes of code ROM.
|
||||
|
||||
FEATURES
|
||||
|
||||
* IP (Internet Protocol) including packet forwarding over multiple network
|
||||
interfaces
|
||||
* ICMP (Internet Control Message Protocol) for network maintenance and debugging
|
||||
* IGMP (Internet Group Management Protocol) for multicast traffic management
|
||||
* UDP (User Datagram Protocol) including experimental UDP-lite extensions
|
||||
* TCP (Transmission Control Protocol) with congestion control, RTT estimation
|
||||
and fast recovery/fast retransmit
|
||||
* Specialized raw/native API for enhanced performance
|
||||
* Optional Berkeley-like socket API
|
||||
* DNS (Domain names resolver)
|
||||
* SNMP (Simple Network Management Protocol)
|
||||
* DHCP (Dynamic Host Configuration Protocol)
|
||||
* AUTOIP (for IPv4, conform with RFC 3927)
|
||||
* PPP (Point-to-Point Protocol)
|
||||
* ARP (Address Resolution Protocol) for Ethernet
|
||||
|
||||
LICENSE
|
||||
|
||||
lwIP is freely available under a BSD license.
|
||||
|
||||
DEVELOPMENT
|
||||
|
||||
lwIP has grown into an excellent TCP/IP stack for embedded devices,
|
||||
and developers using the stack often submit bug fixes, improvements,
|
||||
and additions to the stack to further increase its usefulness.
|
||||
|
||||
Development of lwIP is hosted on Savannah, a central point for
|
||||
software development, maintenance and distribution. Everyone can
|
||||
help improve lwIP by use of Savannah's interface, CVS and the
|
||||
mailing list. A core team of developers will commit changes to the
|
||||
CVS source tree.
|
||||
|
||||
The lwIP TCP/IP stack is maintained in the 'lwip' CVS module and
|
||||
contributions (such as platform ports) are in the 'contrib' module.
|
||||
|
||||
See doc/savannah.txt for details on CVS server access for users and
|
||||
developers.
|
||||
|
||||
Last night's CVS tar ball can be downloaded from:
|
||||
http://savannah.gnu.org/cvs.backups/lwip.tar.gz [CHANGED - NEEDS FIXING]
|
||||
|
||||
The current CVS trees are web-browsable:
|
||||
http://savannah.nongnu.org/cgi-bin/viewcvs/lwip/lwip/
|
||||
http://savannah.nongnu.org/cgi-bin/viewcvs/lwip/contrib/
|
||||
|
||||
Submit patches and bugs via the lwIP project page:
|
||||
http://savannah.nongnu.org/projects/lwip/
|
||||
|
||||
|
||||
DOCUMENTATION
|
||||
|
||||
The original out-dated homepage of lwIP and Adam Dunkels' papers on
|
||||
lwIP are at the official lwIP home page:
|
||||
http://www.sics.se/~adam/lwip/
|
||||
|
||||
Self documentation of the source code is regularly extracted from the
|
||||
current CVS sources and is available from this web page:
|
||||
http://www.nongnu.org/lwip/
|
||||
|
||||
There is now a constantly growin wiki about lwIP at
|
||||
http://lwip.wikia.com/wiki/LwIP_Wiki
|
||||
|
||||
Also, there are mailing lists you can subscribe at
|
||||
http://savannah.nongnu.org/mail/?group=lwip
|
||||
plus searchable archives:
|
||||
http://lists.nongnu.org/archive/html/lwip-users/
|
||||
http://lists.nongnu.org/archive/html/lwip-devel/
|
||||
|
||||
Reading Adam's papers, the files in docs/, browsing the source code
|
||||
documentation and browsing the mailing list archives is a good way to
|
||||
become familiar with the design of lwIP.
|
||||
|
||||
Adam Dunkels <adam@sics.se>
|
||||
Leon Woestenberg <leon.woestenberg@gmx.net>
|
||||
|
||||
144
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/UPGRADING
Normal file
144
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/UPGRADING
Normal file
|
|
@ -0,0 +1,144 @@
|
|||
This file lists major changes between release versions that require
|
||||
ports or applications to be changed. Use it to update a port or an
|
||||
application written for an older version of lwIP to correctly work
|
||||
with newer versions.
|
||||
|
||||
|
||||
(CVS HEAD)
|
||||
|
||||
* [Enter new changes just after this line - do not remove this line]
|
||||
|
||||
++ Application changes:
|
||||
|
||||
* Replaced struct ip_addr by typedef ip_addr_t (struct ip_addr is kept for
|
||||
compatibility to old applications, but will be removed in the future).
|
||||
|
||||
* Renamed mem_realloc() to mem_trim() to prevent confusion with realloc()
|
||||
|
||||
+++ Raw API:
|
||||
* Changed the semantics of tcp_close() (since it was rather a
|
||||
shutdown before): Now the application does *NOT* get any calls to the recv
|
||||
callback (aside from NULL/closed) after calling tcp_close()
|
||||
|
||||
* When calling tcp_abort() from a raw API TCP callback function,
|
||||
make sure you return ERR_ABRT to prevent accessing unallocated memory.
|
||||
(ERR_ABRT now means the applicaiton has called tcp_abort!)
|
||||
|
||||
+++ Netconn API:
|
||||
* Changed netconn_receive() and netconn_accept() to return
|
||||
err_t, not a pointer to new data/netconn.
|
||||
|
||||
+++ Socket API:
|
||||
* LWIP_SO_RCVTIMEO: when accept() or recv() time out, they
|
||||
now set errno to EWOULDBLOCK/EAGAIN, not ETIMEDOUT.
|
||||
|
||||
* Added a minimal version of posix fctl() to have a
|
||||
standardised way to set O_NONBLOCK for nonblocking sockets.
|
||||
|
||||
+++ all APIs:
|
||||
* correctly implemented SO(F)_REUSEADDR
|
||||
|
||||
++ Port changes
|
||||
|
||||
+++ new files:
|
||||
|
||||
* Added 4 new files: def.c, timers.c, timers.h, tcp_impl.h:
|
||||
|
||||
* Moved stack-internal parts of tcp.h to tcp_impl.h, tcp.h now only contains
|
||||
the actual application programmer's API
|
||||
|
||||
* Separated timer implementation from sys.h/.c, moved to timers.h/.c;
|
||||
Added timer implementation for NO_SYS==1, set NO_SYS_NO_TIMERS==1 if you
|
||||
still want to use your own timer implementation for NO_SYS==0 (as before).
|
||||
|
||||
+++ sys layer:
|
||||
|
||||
* Converted mbox- and semaphore-functions to take pointers to sys_mbox_t/
|
||||
sys_sem_t;
|
||||
|
||||
* Converted sys_mbox_new/sys_sem_new to take pointers and return err_t;
|
||||
|
||||
* Added Mutex concept in sys_arch (define LWIP_COMPAT_MUTEX to let sys.h use
|
||||
binary semaphores instead of mutexes - as before)
|
||||
|
||||
+++ new options:
|
||||
|
||||
* Don't waste memory when chaining segments, added option TCP_OVERSIZE to
|
||||
prevent creating many small pbufs when calling tcp_write with many small
|
||||
blocks of data. Instead, pbufs are allocated larger than needed and the
|
||||
space is used for later calls to tcp_write.
|
||||
|
||||
* Added LWIP_NETIF_TX_SINGLE_PBUF to always copy to try to create single pbufs
|
||||
in tcp_write/udp_send.
|
||||
|
||||
* Added an additional option LWIP_ETHERNET to support ethernet without ARP
|
||||
(necessary for pure PPPoE)
|
||||
|
||||
* Add MEMP_SEPARATE_POOLS to place memory pools in separate arrays. This may
|
||||
be used to place these pools into user-defined memory by using external
|
||||
declaration.
|
||||
|
||||
* Added TCP_SNDQUEUELOWAT corresponding to TCP_SNDLOWAT
|
||||
|
||||
+++ new pools:
|
||||
|
||||
* Netdb uses a memp pool for allocating memory when getaddrinfo() is called,
|
||||
so MEMP_NUM_NETDB has to be set accordingly.
|
||||
|
||||
* DNS_LOCAL_HOSTLIST_IS_DYNAMIC uses a memp pool instead of the heap, so
|
||||
MEMP_NUM_LOCALHOSTLIST has to be set accordingly.
|
||||
|
||||
* Snmp-agent uses a memp pools instead of the heap, so MEMP_NUM_SNMP_* have
|
||||
to be set accordingly.
|
||||
|
||||
* PPPoE uses a MEMP pool instead of the heap, so MEMP_NUM_PPPOE_INTERFACES
|
||||
has to be set accordingly
|
||||
|
||||
* Integrated loopif into netif.c - loopif does not have to be created by the
|
||||
port any more, just define LWIP_HAVE_LOOPIF to 1.
|
||||
|
||||
* Added define LWIP_RAND() for lwip-wide randomization (needs to be defined
|
||||
in cc.h, e.g. used by igmp)
|
||||
|
||||
* Added printf-formatter X8_F to printf u8_t as hex
|
||||
|
||||
* The heap now may be moved to user-defined memory by defining
|
||||
LWIP_RAM_HEAP_POINTER as a void pointer to that memory's address
|
||||
|
||||
* added autoip_set_struct() and dhcp_set_struct() to let autoip and dhcp work
|
||||
with user-allocated structs instead of calling mem_malloc
|
||||
|
||||
* Added const char* name to mem- and memp-stats for easier debugging.
|
||||
|
||||
* Calculate the TCP/UDP checksum while copying to only fetch data once:
|
||||
Define LWIP_CHKSUM_COPY to a memcpy-like function that returns the checksum
|
||||
|
||||
* Added SO_REUSE_RXTOALL to pass received UDP broadcast/multicast packets to
|
||||
more than one pcb.
|
||||
|
||||
* Changed the semantics of ARP_QUEUEING==0: ARP_QUEUEING now cannot be turned
|
||||
off any more, if this is set to 0, only one packet (the most recent one) is
|
||||
queued (like demanded by RFC 1122).
|
||||
|
||||
|
||||
++ Major bugfixes/improvements
|
||||
|
||||
* Implemented tcp_shutdown() to only shut down one end of a connection
|
||||
* Implemented shutdown() at socket- and netconn-level
|
||||
* Added errorset support to select() + improved select speed overhead
|
||||
* Merged pppd to v2.3.11 (including some backported bugfixes from 2.4.x)
|
||||
* Added timer implementation for NO_SYS==1 (may be disabled with NO_SYS_NO_TIMERS==1
|
||||
* Use macros defined in ip_addr.h to work with IP addresses
|
||||
* Implemented many nonblocking socket/netconn functions
|
||||
* Fixed ARP input processing: only add a new entry if a request was directed as us
|
||||
* mem_realloc() to mem_trim() to prevent confusion with realloc()
|
||||
* Some improvements for AutoIP (don't route/forward link-local addresses, don't break
|
||||
existing connections when assigning a routable address)
|
||||
* Correctly handle remote side overrunning our rcv_wnd in ooseq case
|
||||
* Removed packing from ip_addr_t, the packed version is now only used in protocol headers
|
||||
* Corrected PBUF_POOL_BUFSIZE for ports where ETH_PAD_SIZE > 0
|
||||
* Added support for static ARP table entries
|
||||
|
||||
(STABLE-1.3.2)
|
||||
|
||||
* initial version of this file
|
||||
6
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/doc/FILES
Normal file
6
eigener_ctrl/stm32f407-olimex/chibios/ext/lwip/doc/FILES
Normal file
|
|
@ -0,0 +1,6 @@
|
|||
savannah.txt - How to obtain the current development source code.
|
||||
contrib.txt - How to contribute to lwIP as a developer.
|
||||
rawapi.txt - The documentation for the core API of lwIP.
|
||||
Also provides an overview about the other APIs and multithreading.
|
||||
snmp_agent.txt - The documentation for the lwIP SNMP agent.
|
||||
sys_arch.txt - The documentation for a system abstraction layer of lwIP.
|
||||
Some files were not shown because too many files have changed in this diff Show more
Loading…
Reference in a new issue
